Steering Column Disassembled View (Standard Column)

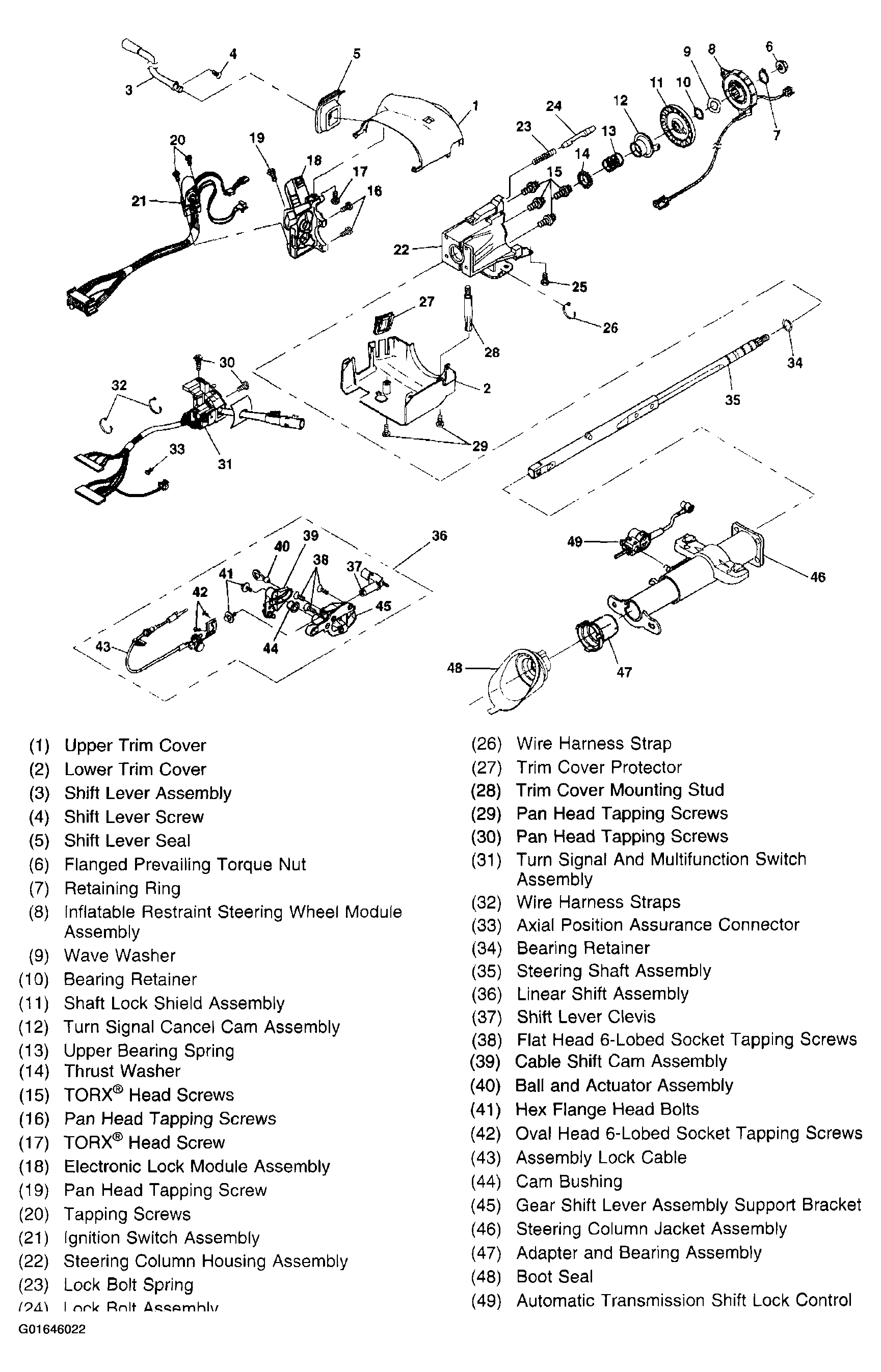

Fig 1: Steering Column Disassembled View (Standard Column)

G01646022

Courtesy of GENERAL MOTORS CORP.
