Installation Procedure

Lubricate the tie rod threads with chassis lubricant if the tie rod ends were removed from the adjuster tube. .

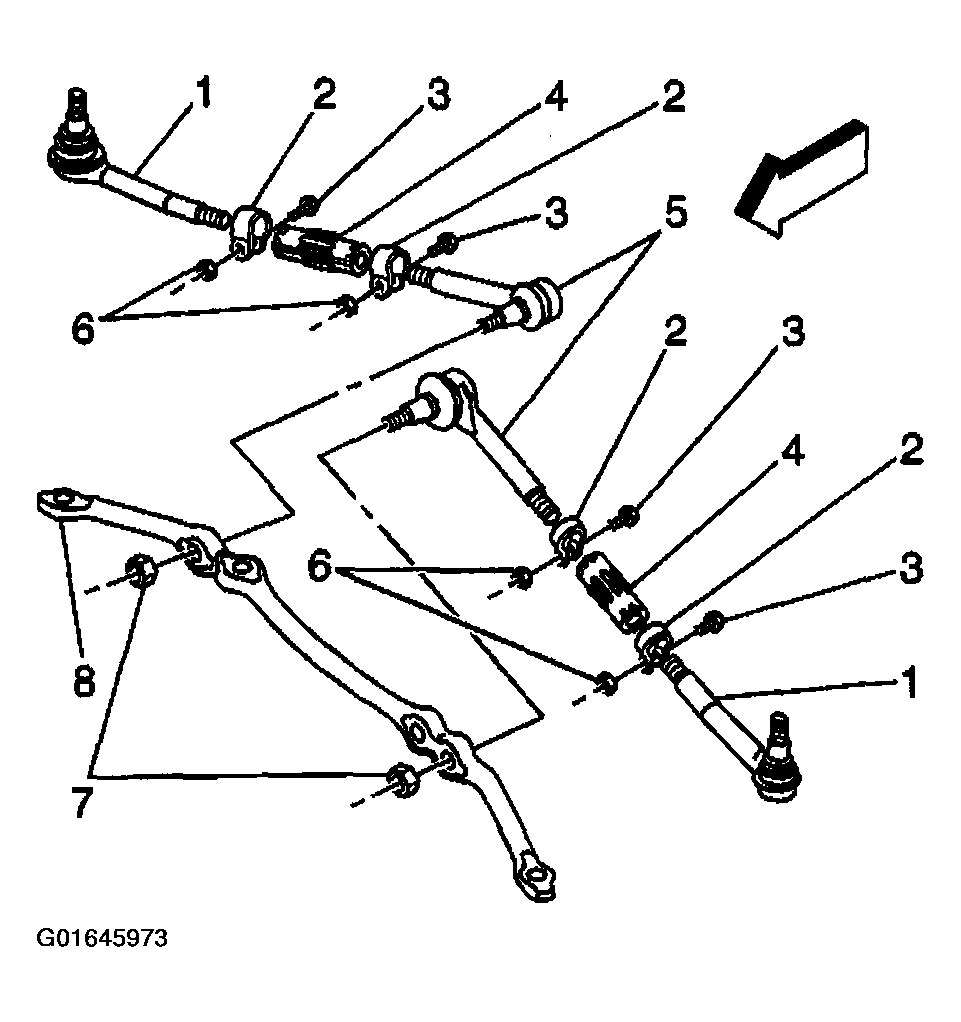

1. Loosen the clamps (2) on the adjuster tube 94).
2. Install the tie rod ends to the adjuster tube (4).

   The number the threads on the inner tie rod (5) and the outer tie rod (1) ends must be equal within 3 threads.

   Fig 1: Installing Tie Rod Ends

   Courtesy of GENERAL MOTORS CORP.
   NOTE:

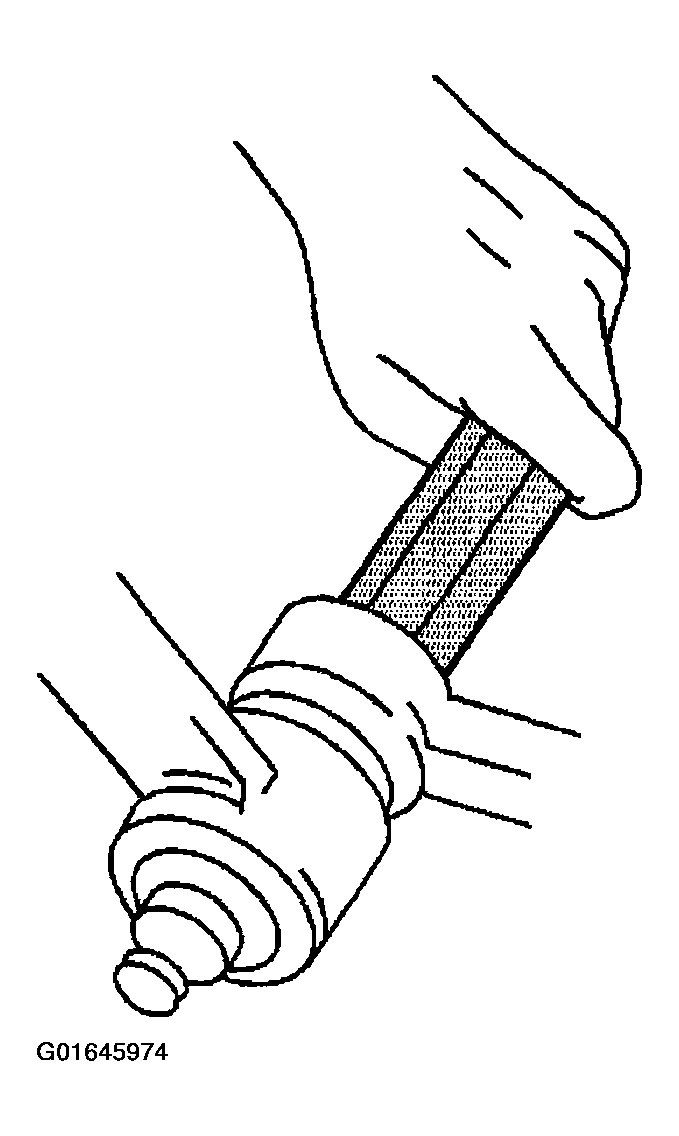

3. Use the J 29193  in order to install the inner tie rod to the relay rod.

   Ensure that the seal is on the stud.

   Tighten

   Tighten the J 29193  to 54 N.m (40 lb ft) in order to seat the tapers.

4. Remove the j 29193.
5. Install the new prevailing torque nut to the line tie rod.

   Tighten

   Tighten the prevailing torque nut to 47 N.m (35 lb ft).

   Fig 2: Installing Inner Tie Rod To Relay Rod

   Courtesy of GENERAL MOTORS CORP.

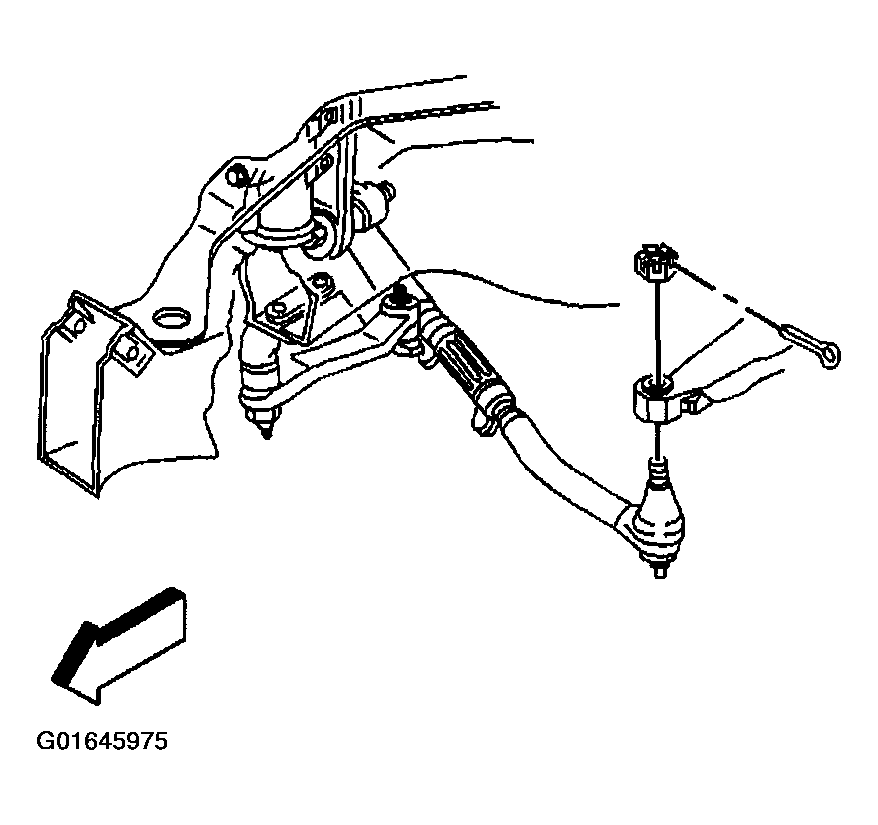

6. Install the outer tie rod ball stud to the steering knuckle.

   Ensure that the seal is on the stud.

   IMPORTANT: Tighten the castellated nut up to an additional 1/6 amount in order to insert the cotter pin through the outer tie rod ball stud. Do not back the nut off in order to align the cotter pin hole.
7. Install the castellated nut.

   Tighten

   Tighten the castellated nut to 47 N.m (35 lb ft).

   Fig 3: Installing Castellated Nut

   Courtesy of GENERAL MOTORS CORP.
8. Install the new cotter pin.

   Bend the cotter pin ends flat against the nut flats.

9. Lower the vehicle.
10. Adjust the toe-in. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.
    Fig 4: Identifying Cotter Pin

    Courtesy of GENERAL MOTORS CORP.
