Installation Procedure

  1. Install the idler arm (4) to the frame.
    NOTE:
  2. Install the idler arm to from mounting bolts (3).

    Tighten

    Tighten the idler arm to fame mounting bolts to 105 N.m (77 lb ft).

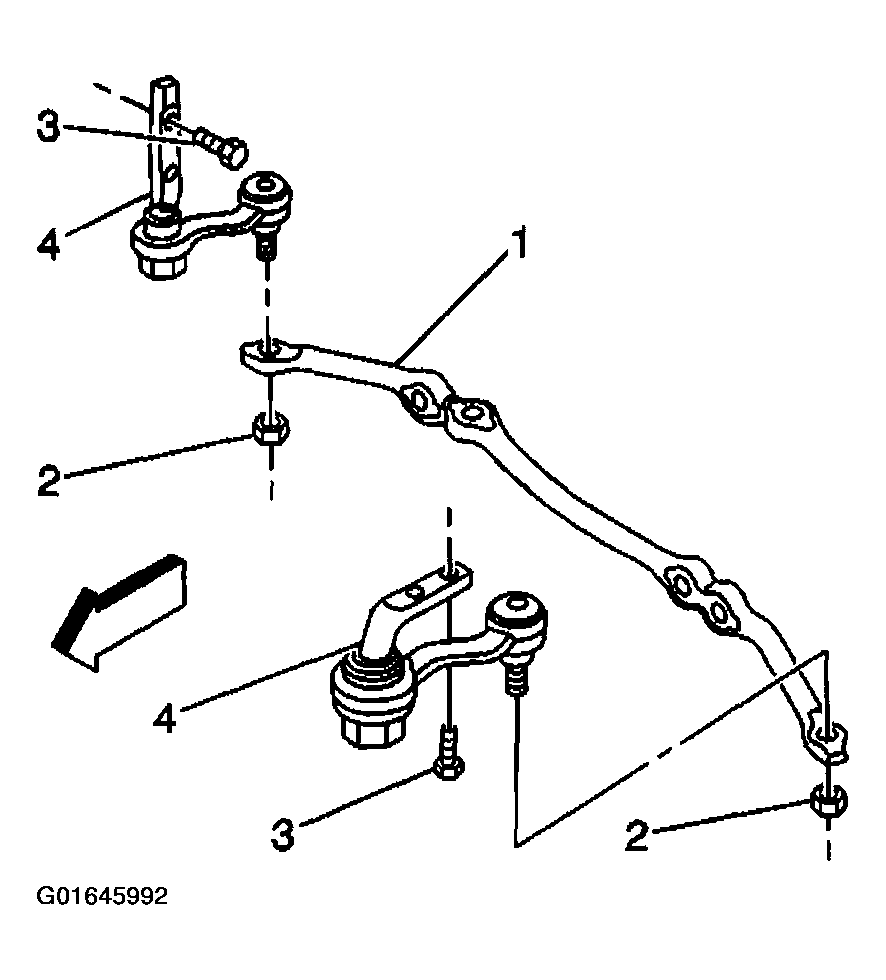

    Fig 1: Installing Idler Arm
    G01645992Courtesy of GENERAL MOTORS CORP.
  3. Use the J 29193  in order to install the relay rod to the idler arm ball stud.

    Tighten

    Tighten the J 29193  to 54 N.m (40 lb ft) in order to seat the tapers.

  4. Remove the J 29193.

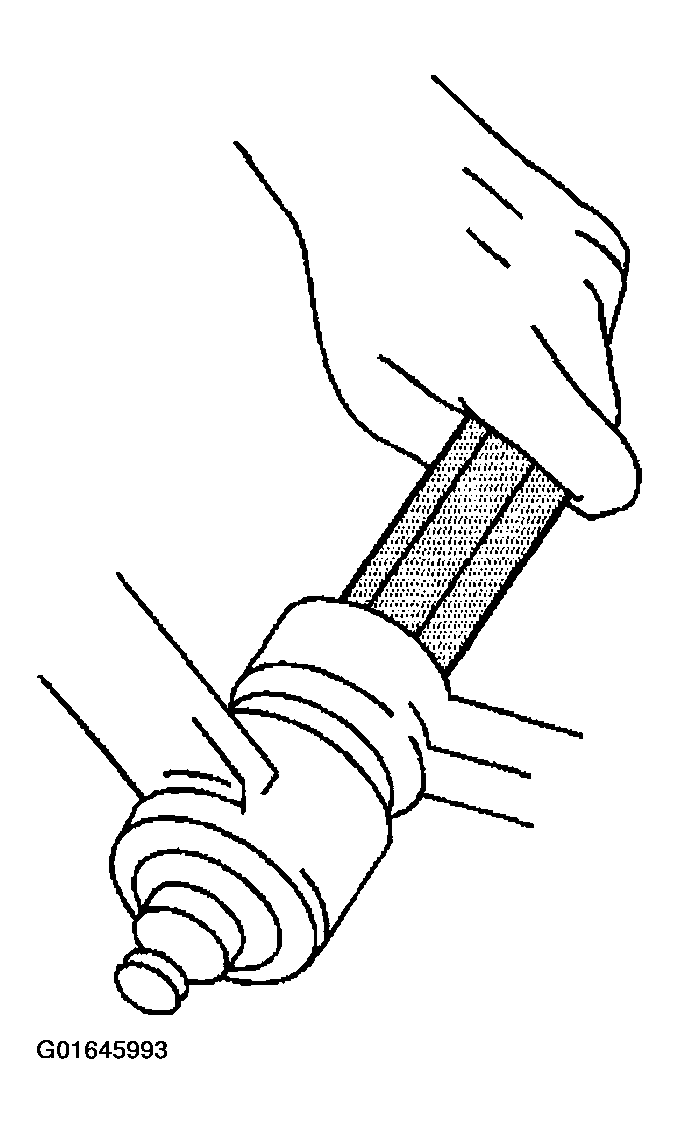

    Fig 2: Installing Relay Rod To Idler Arm Ball Stud
    G01645993Courtesy of GENERAL MOTORS CORP.
  5. Install the new prevailing torque nut (2) to the idler arm (4) ball stud.

    Tighten

    Tighten the Prevailing torque nut to 47 N.m (35 lb ft).

  6. Lower the vehicle.
  7. Adjust the toe-in. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.
    Fig 3: Installing New Prevailing Torque Nut To Idler Arm Ball Stud
    G01645994Courtesy of GENERAL MOTORS CORP.
