Disassembly Procedure

  1. Rotate the stub shaft back and forth to drain the fluid.
  2. Insert a punch into the housing access hole to unseat the retaining ring (1).
  3. Remove the plug (2).
  4. Remove the O-ring seal (3).

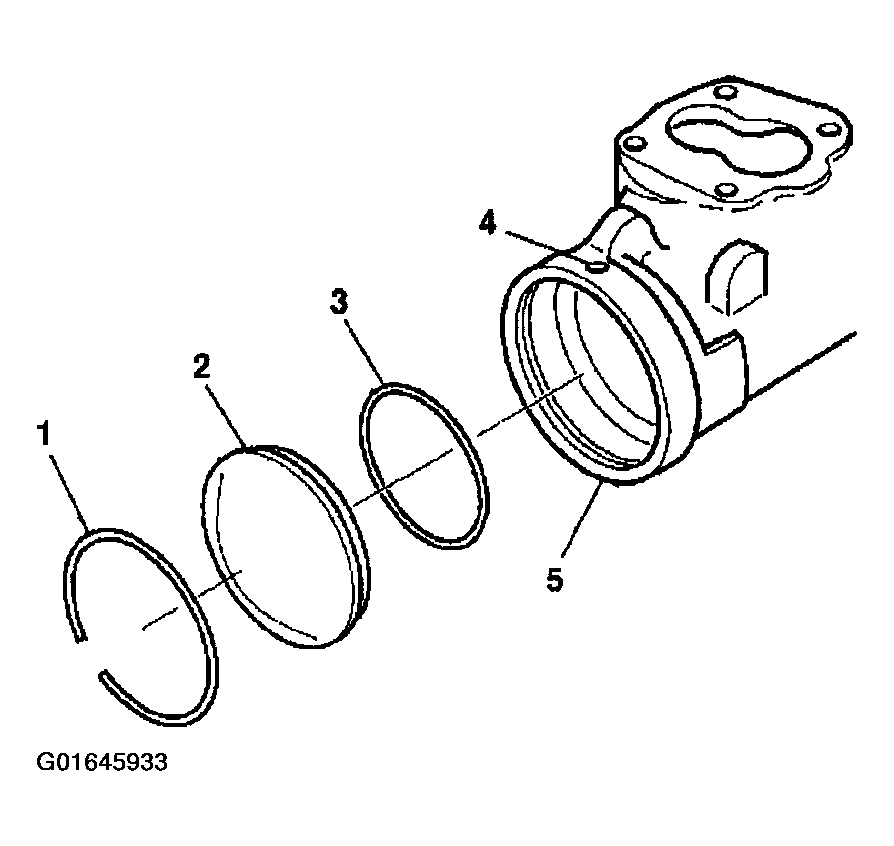

    Fig 1: O-Ring Seal
    G01645933Courtesy of GENERAL MOTORS CORP.
