Disassembly Procedure

Important:  Do not damage the threads of the steering gear housing when removing the check valve.

Remove the check valve (1) from the steering gear housing (2) using a small screwdriver.

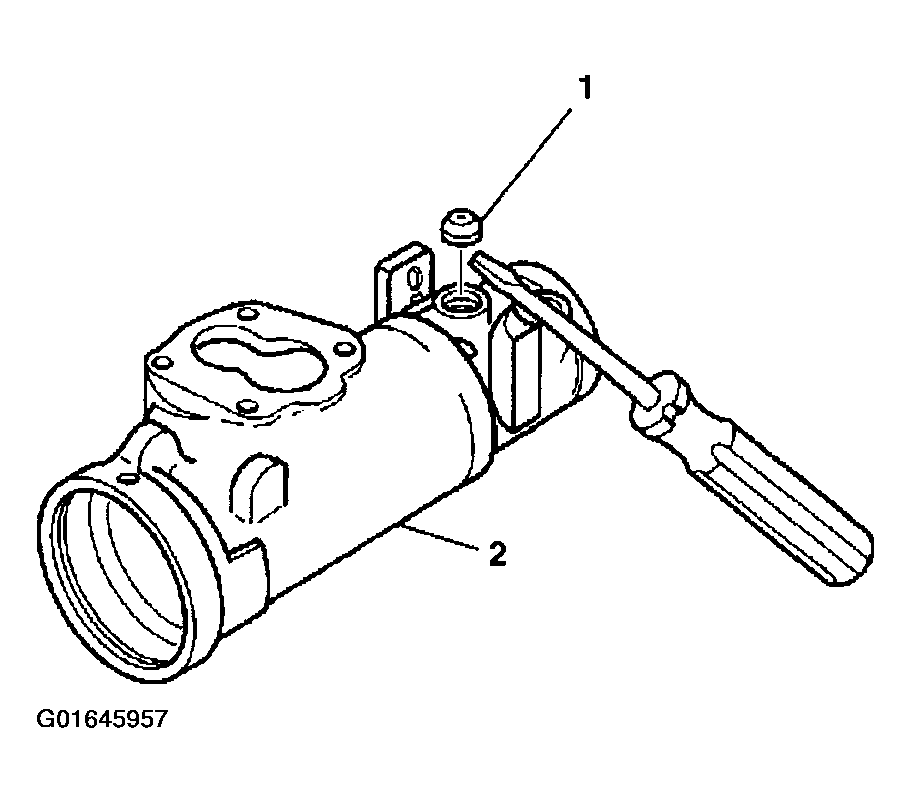

Fig 1: Disassembling Steering Gear Check Valve
G01645957Courtesy of GENERAL MOTORS CORP.
