Removal Procedure

  1. Place drain pan under the vehicle.
  2. Draw all of the fluid out of the reservoir in order to avoid spills.
  3. Disconnect the hydraulic brake booster hose from the power steering reservoir.

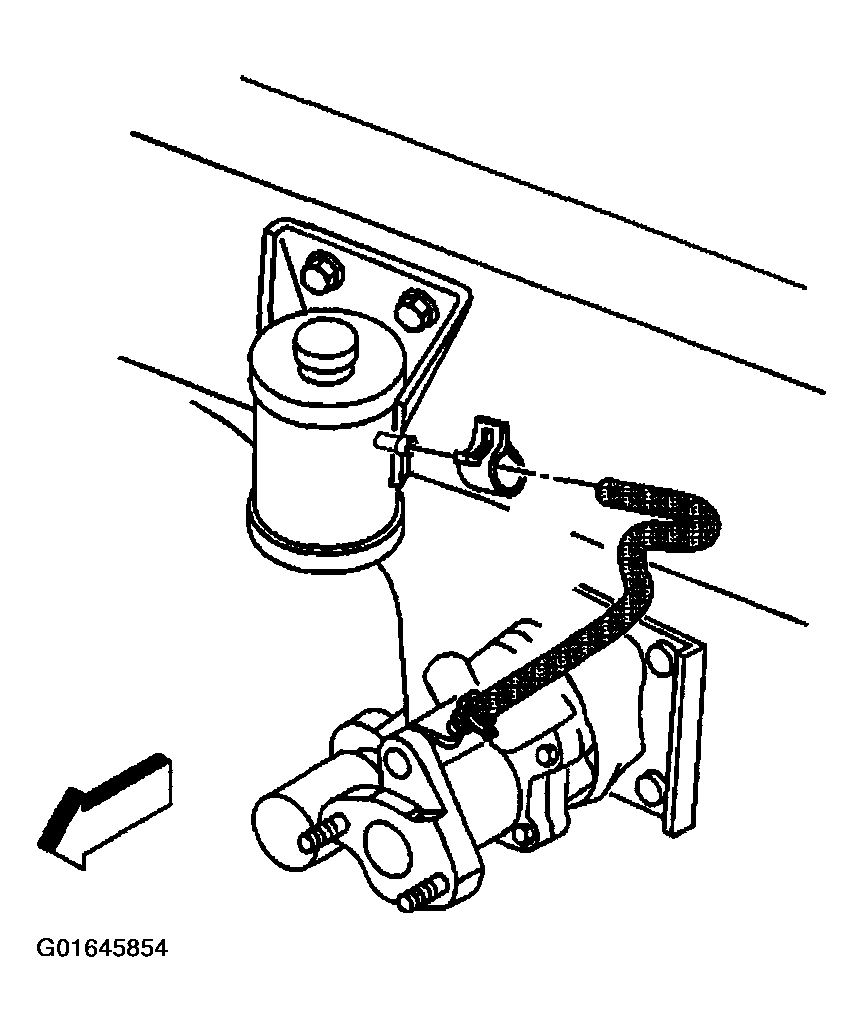

    Fig 1: Disconnecting Hydraulic Brake Booster Hose From Power Steering Reservoir
    G01645854Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering reservoir to the power steering pump hose from the power steering reservoir.

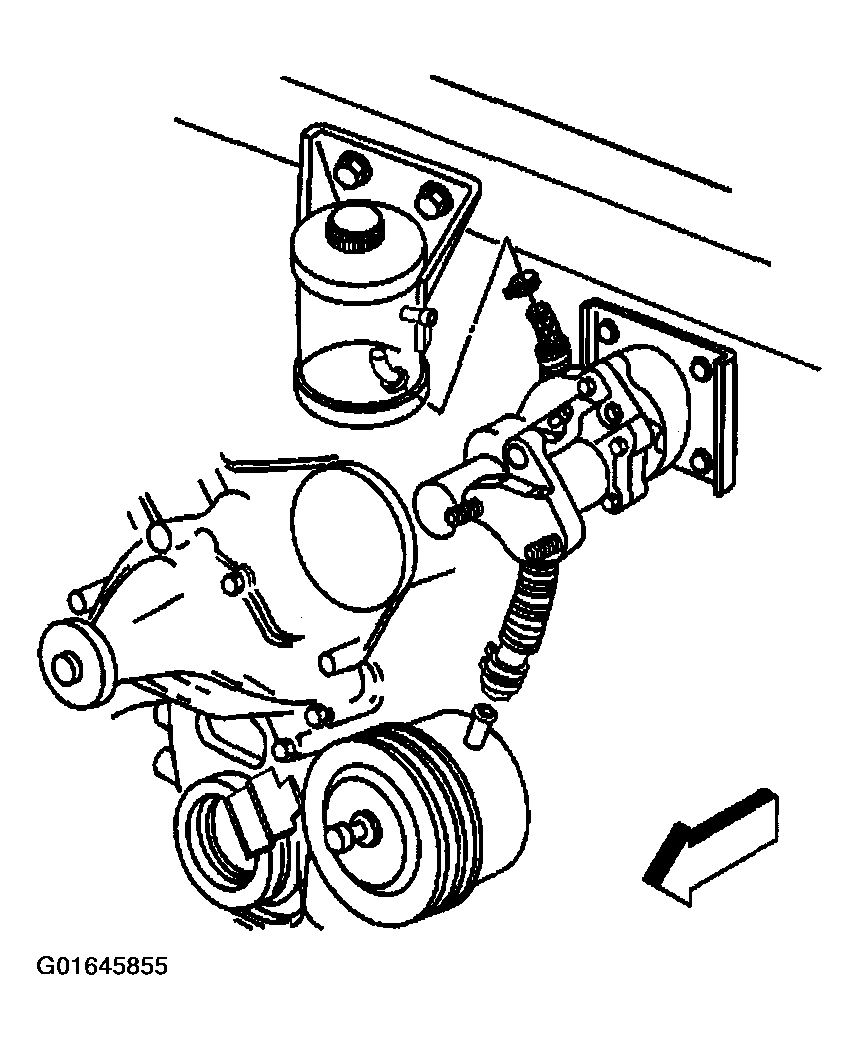

    Fig 2: Disconnecting Power Steering Reservoir To Power Steering Pump Hose
    G01645855Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering reservoir mounting bolts.
  6. Remove the power steering reservoir.

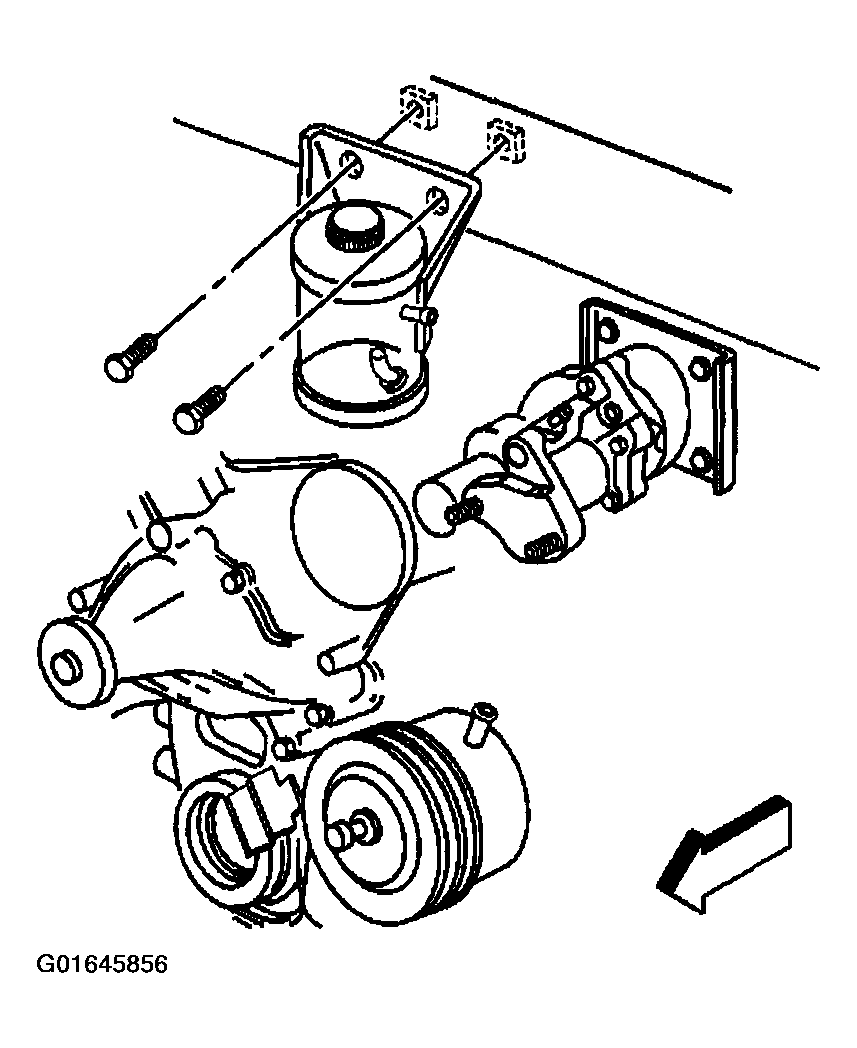

    Fig 3: Power Steering Fluid Reservoir
    G01645856Courtesy of GENERAL MOTORS CORP.
