Removal Procedure

  1. Install a drain pan under the vehicle.
  2. Siphon the power steering fluid from the reservoir.
  3. Disconnect the power steering reservoir outlet hose from the power steering pump.

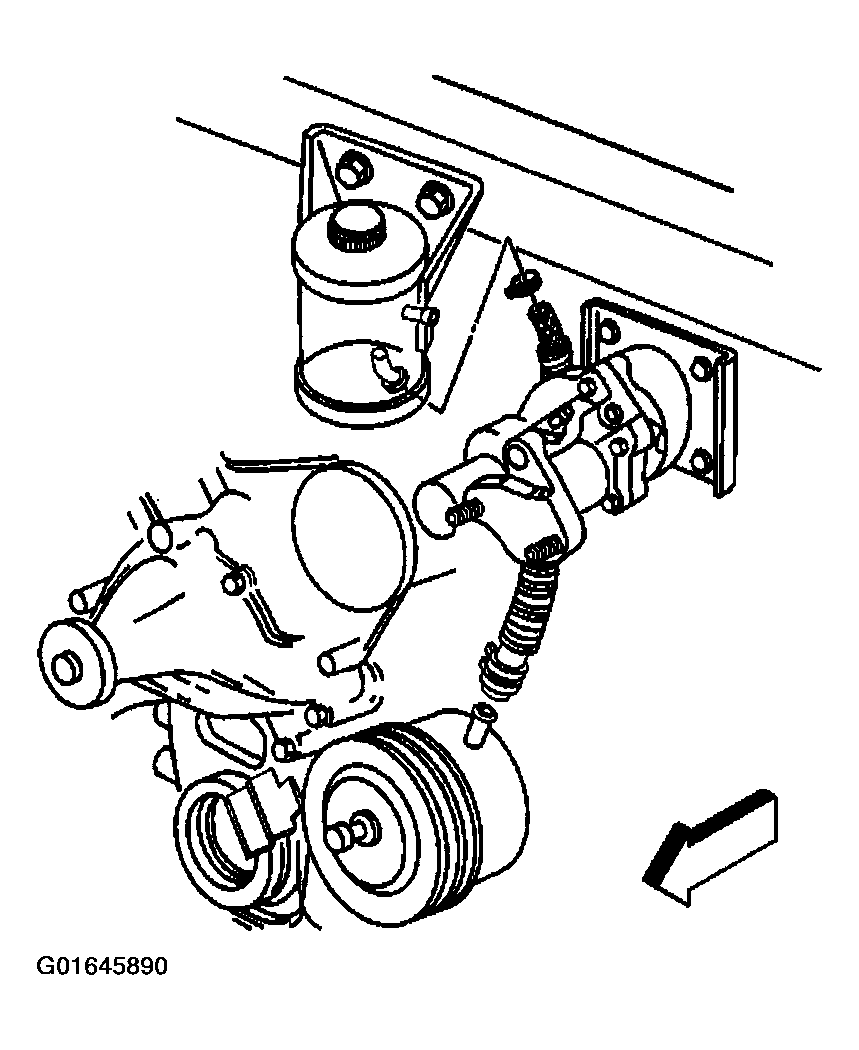

    Fig 1: Disconnecting Power Steering Reservoir Outlet Hose From Power Steering Pump
    G01645890Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering reservoir outlet hose from the remote power steering fluid reservoir.
  5. Remove the power steering reservoir outlet hose from the vehicle.
