Installation Procedure

  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering reservoir outlet hose to the vehicle.
  3. Install the power steering reservoir outlet hose to the power steering pump.

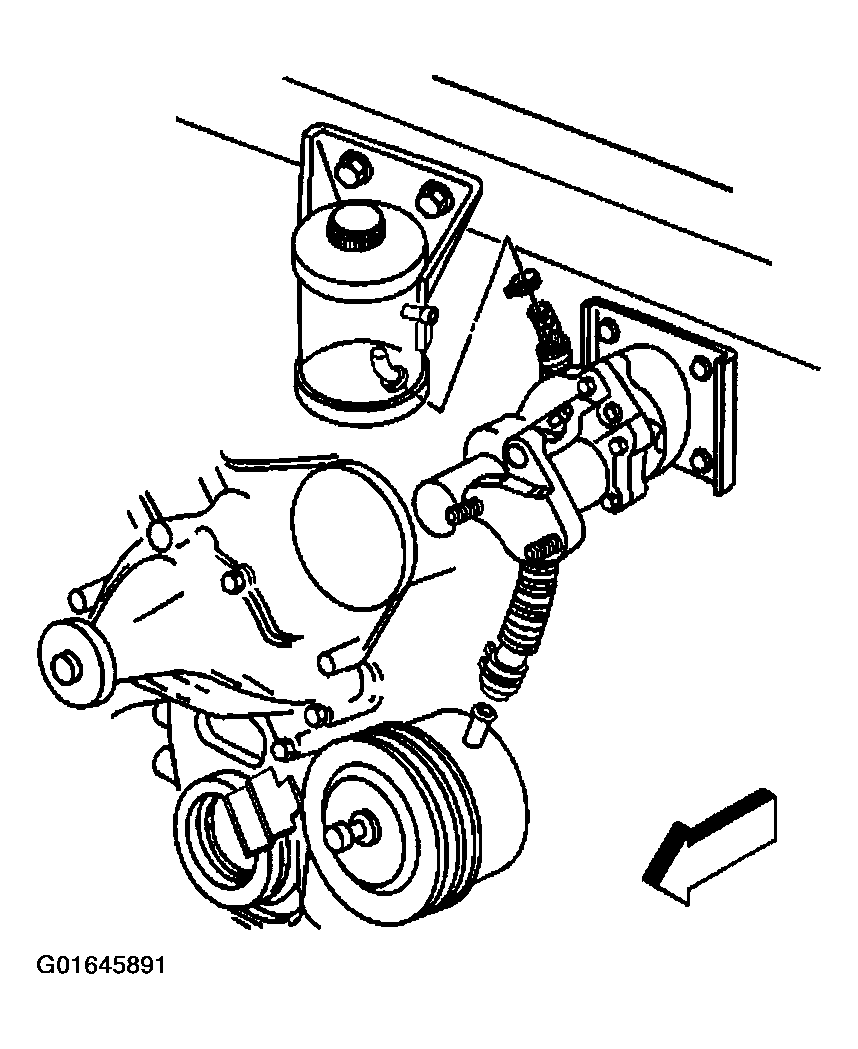

    Fig 1: Installing Power Steering Reservoir Outlet Hose To Power Steering Pump
    G01645891Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering reservoir outlet hose to the remote power steering fluid reservoir.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
  6. Remove the drain pan from under the vehicle.
