Removal Procedure

  1. Install a drain pan under the vehicle.
  2. Siphon the fluid from the reservoir to prevent excessive spillage.
  3. Remove the power steering reservoir inlet hose from the power brake booster.
  4. Remove the power steering reservoir inlet hose from the reservoir.

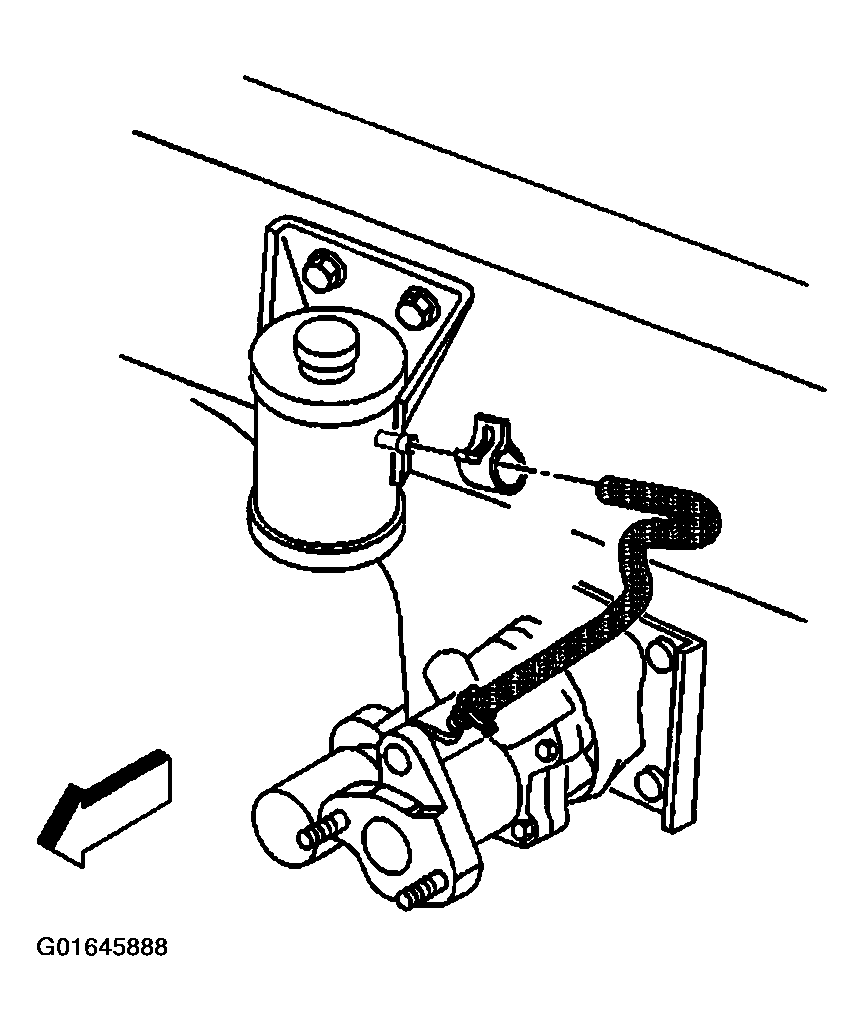

    Fig 1: Removing Power Steering Reservoir Inlet Hose From Reservoir
    G01645888Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering reservoir inlet hose from the vehicle.
