Installation Procedure

  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering reservoir inlet hose to the vehicle.
  3. Install the power steering reservoir inlet hose to the reservoir.

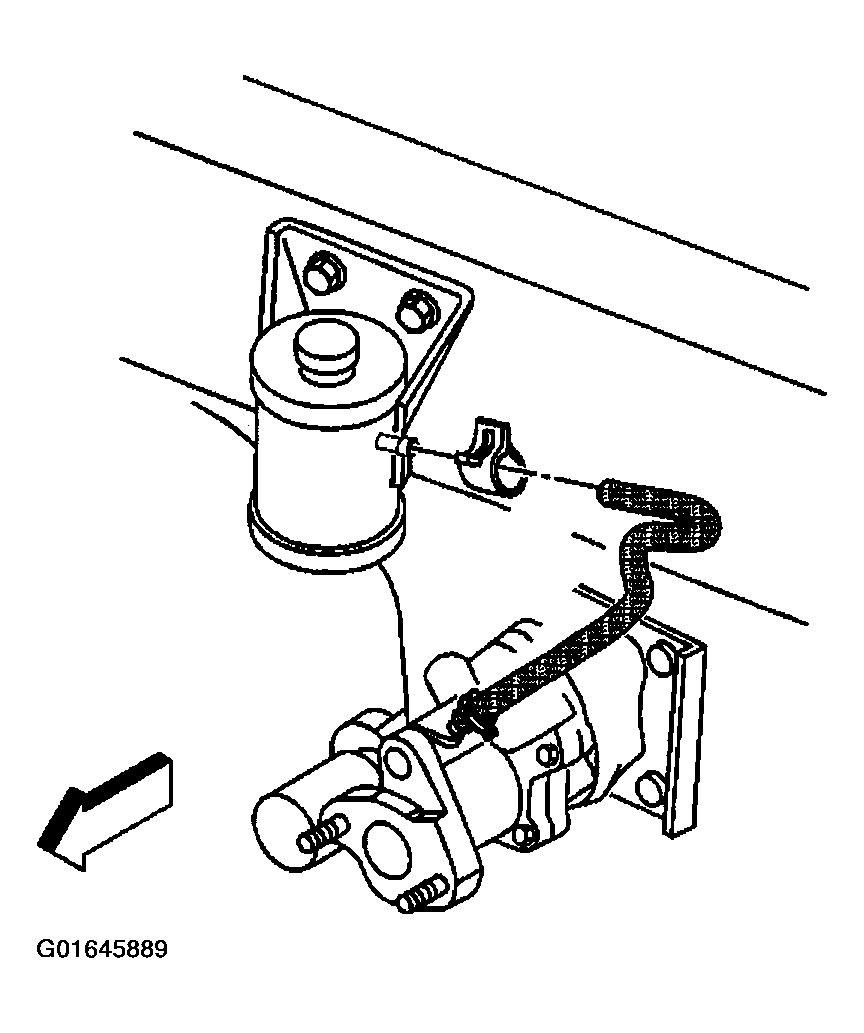

    Fig 1: Power Steering Reservoir Inlet Hose
    G01645889Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering reservoir inlet hose to the power brake booster.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
  6. Remove the drain pan from under the vehicle.
