Removal Procedure

  1. Disconnect the power steering cooler hose from the steering pump.

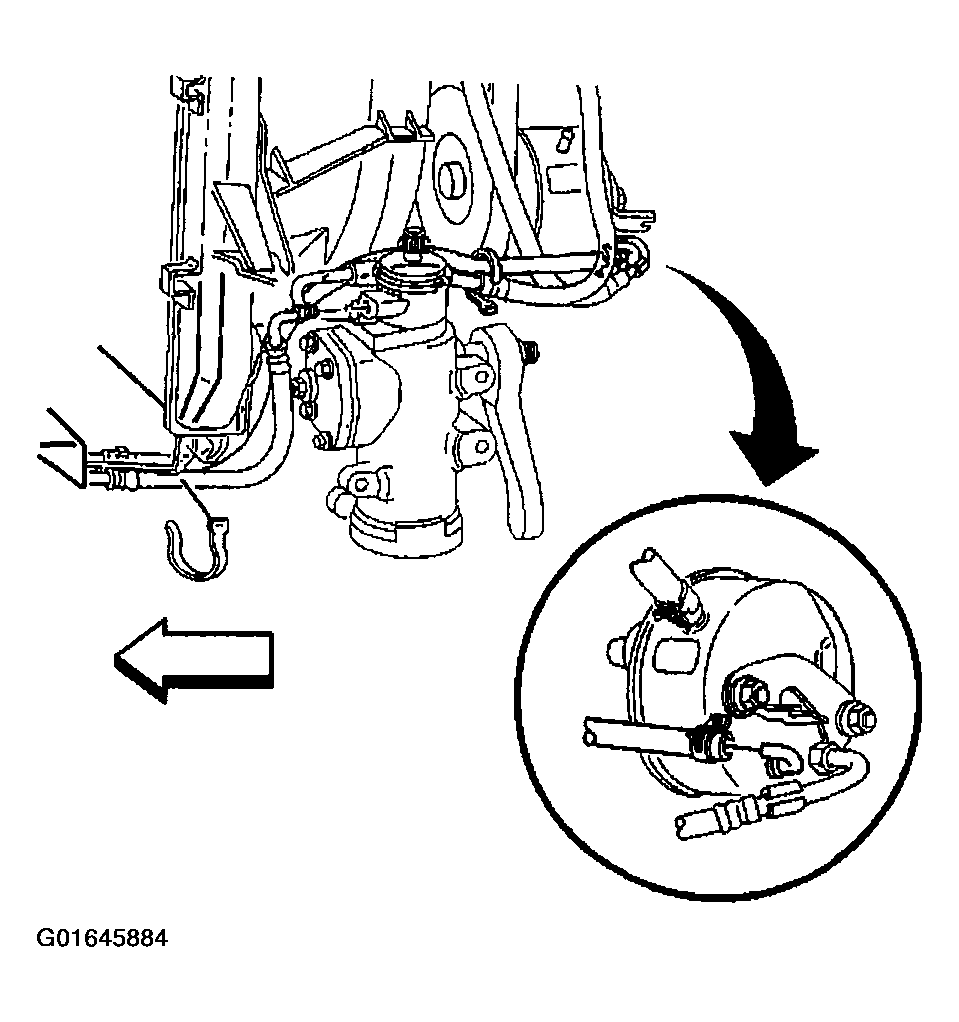

    Fig 1: Disconnecting Power Steering Cooler Hose From Steering Pump
    G01645884Courtesy of GENERAL MOTORS CORP.
  2. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Install a drain pan under the vehicle.
  4. Disconnect the power steering cooler pipe hose from the steering gear.
  5. Remove the power steering cooler pipe (2) from the air baffle (3).

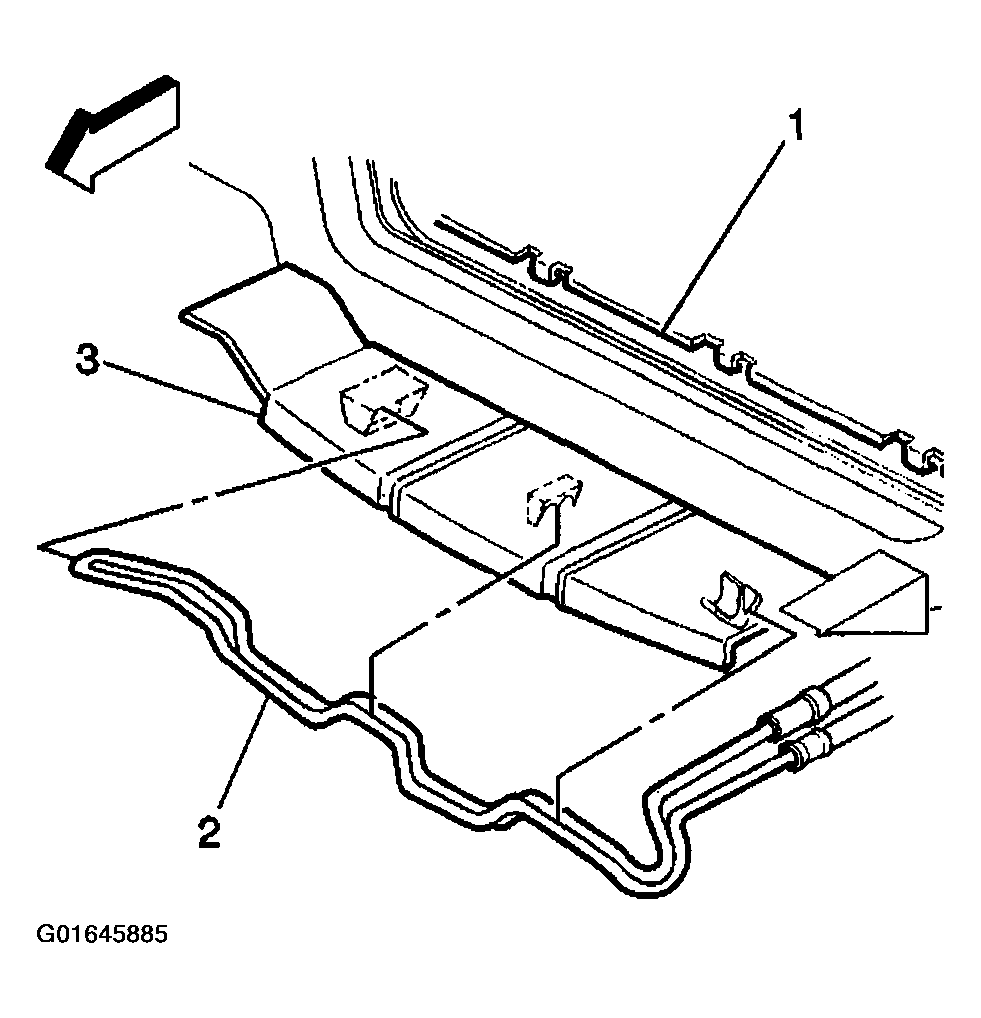

    Fig 2: Removing Power Steering Cooler Pipe From Air Baffle
    G01645885Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering cooler pipe from the vehicle.
