Installation Procedure

  1. Install the power steering cooler pipe to the vehicle.
  2. Install the power steering cooler pipe (2) to the air baffle (3).

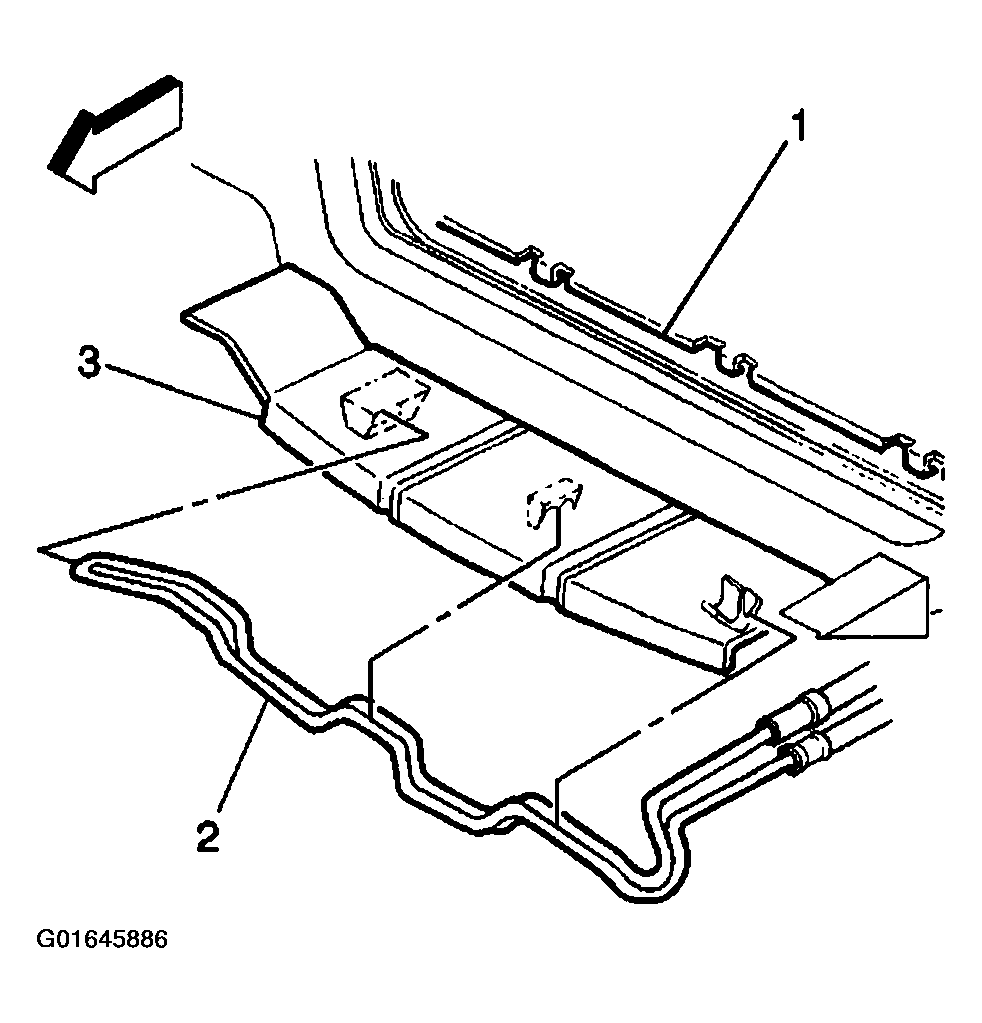

    Fig 1: Installing Power Steering Cooler Pipe To Air Baffle
    G01645886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Connect the power steering cooler pipe to the steering gear.

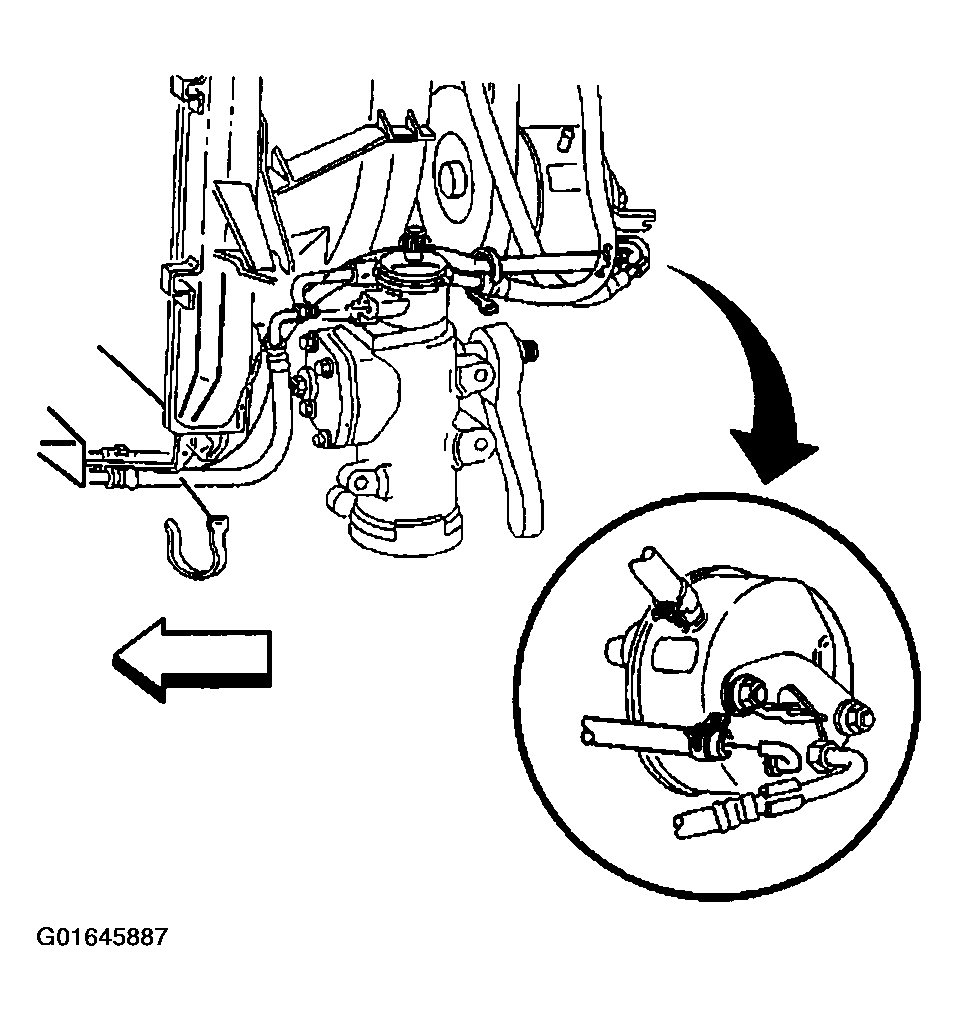

    Fig 2: Connecting Power Steering Cooler Pipe To Steering Gear
    G01645887Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the power steering cooler pipe to the steering gear to 27 N.m, (20 lb ft).

  4. Lower the vehicle.
  5. Connect the power steering cooler hose to the steering pump.
  6. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
