Removal Procedure

Important:  Note the position of all the tie-straps, power steering hoses and the hose insulators for proper re-installation.

1. Remove the power brake booster outlet hose tie-straps.

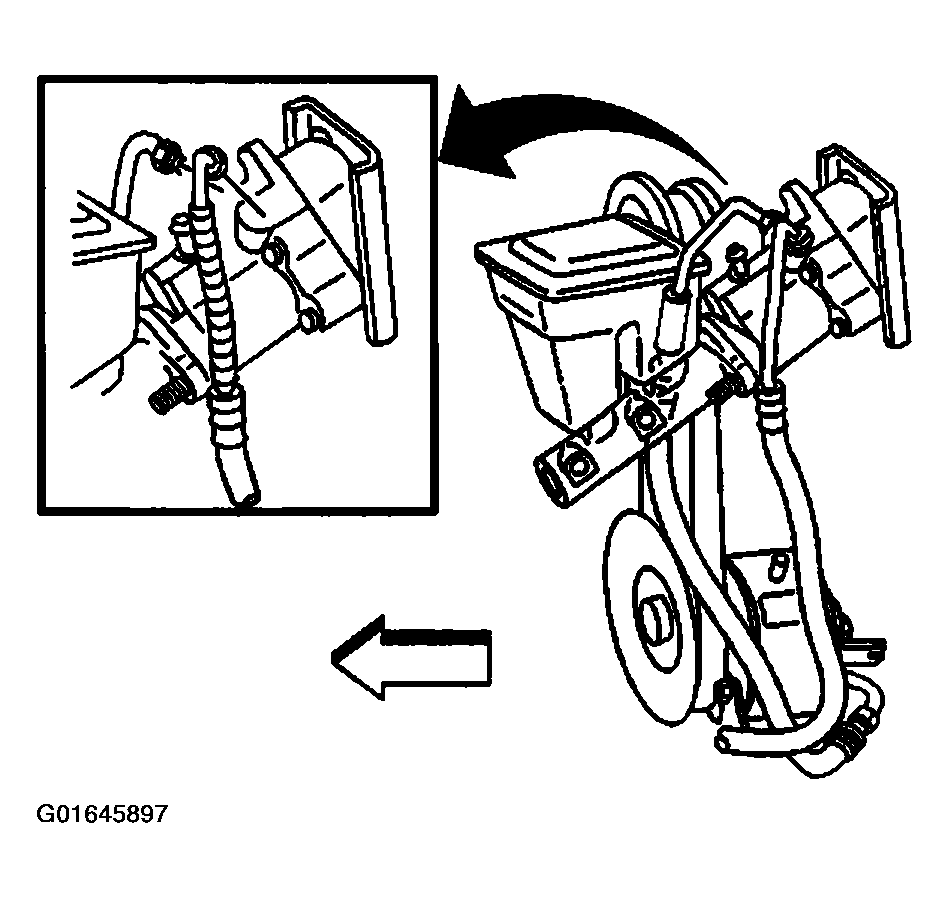

   Fig 1: Power Brake Booster Outlet Hose Tie-Straps

   Courtesy of GENERAL MOTORS CORP.
2. Place a drain pan under the vehicle.
3. Disconnect the power steering cooler hose from the power steering gear.
4. Disconnect the hydraulic brake booster outlet hose from the steering gear.
5. Disconnect the hydraulic brake booster outlet hose from the hydraulic brake booster.
6. Remove the hydraulic brake booster outlet hose from the vehicle.

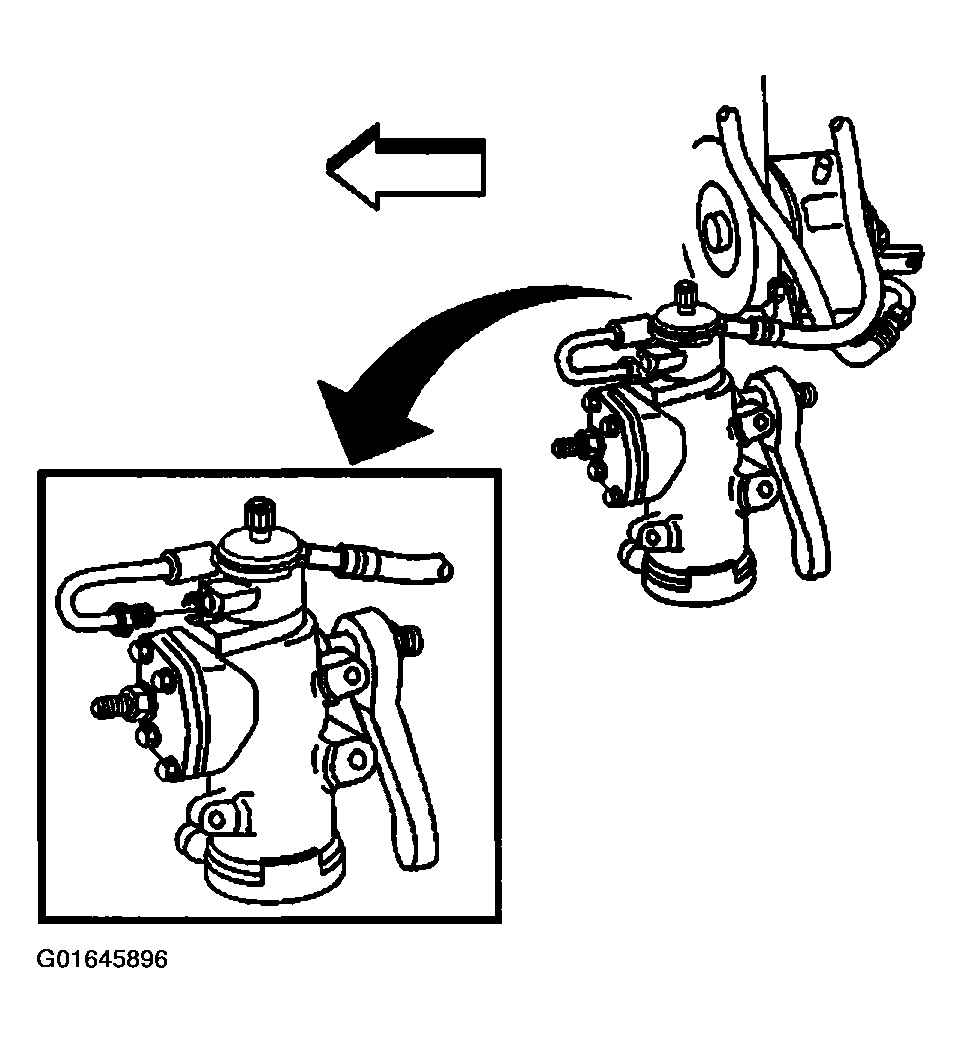

   Fig 2: Removing Hydraulic Brake Booster Outlet Hose From Vehicle

   Courtesy of GENERAL MOTORS CORP.
