Installation Procedure

NOTE: Do not start the engine with any power steering hose disconnected, or damage to the components could occur.
  1. Install the hydraulic brake booster outlet hose to the vehicle.

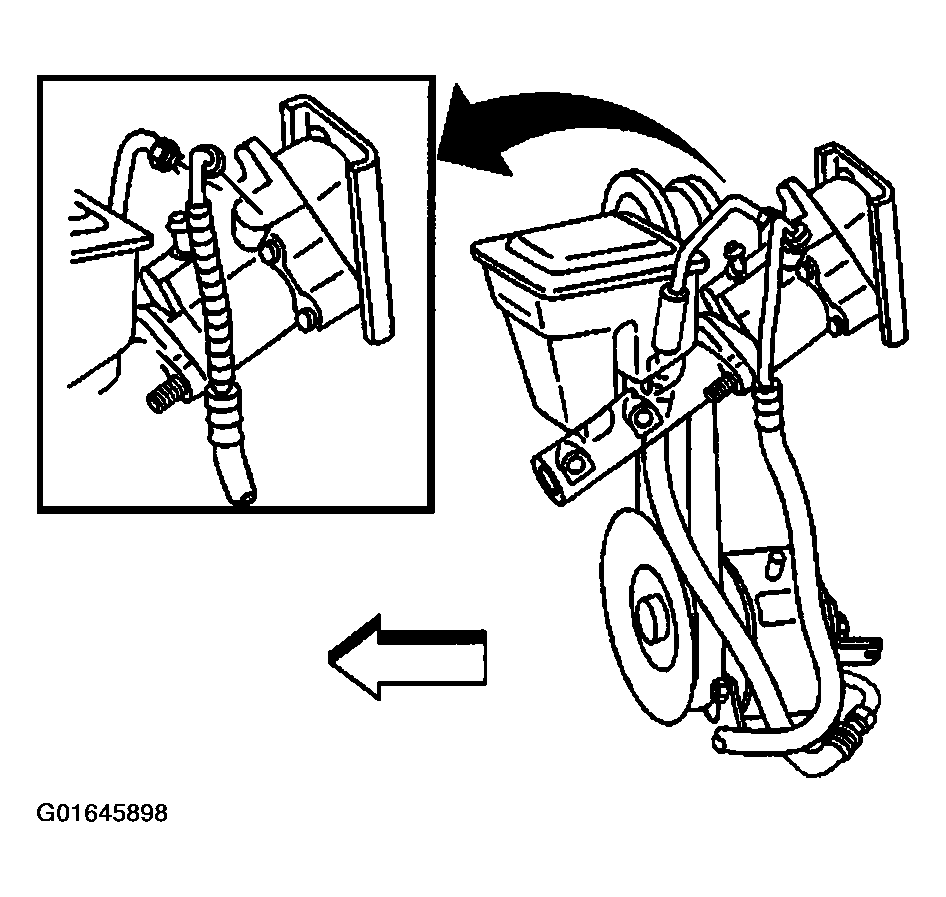

    Fig 1: Installing Hydraulic Brake Booster Outlet Hose To Vehicle
    G01645898Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Connect the hydraulic brake booster outlet hose to the hydraulic brake booster.

    Tighten

    Tighten the hydraulic brake booster outlet hose to the hydraulic brake booster to 27 N.m (20 lb ft).

  3. Connect the hydraulic brake booster outlet hose to the power steering gear.

    Tighten

    Tighten the hydraulic brake booster outlet hose to the power steering gear to 27 N.m (20 lb ft).

  4. Remove the drain pan.
  5. Install the hydraulic brake booster outlet hose tie straps.

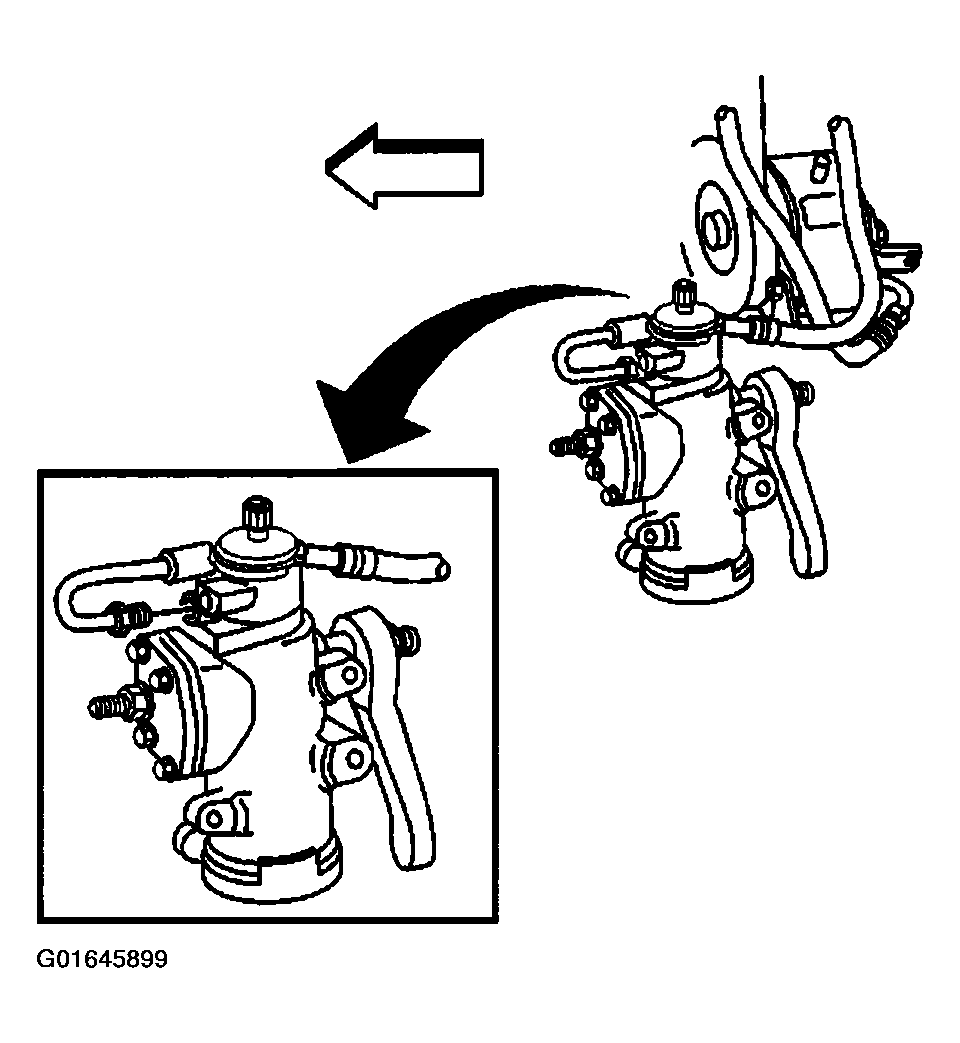

    Fig 2: Hydraulic Brake Booster Outlet Hose Tie Straps
    G01645899Courtesy of GENERAL MOTORS CORP.
  6. Bleed the system. Refer to BLEEDING THE POWER STEERING SYSTEM .
