Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the hydraulic brake booster inlet hose from the of the power steering pump.

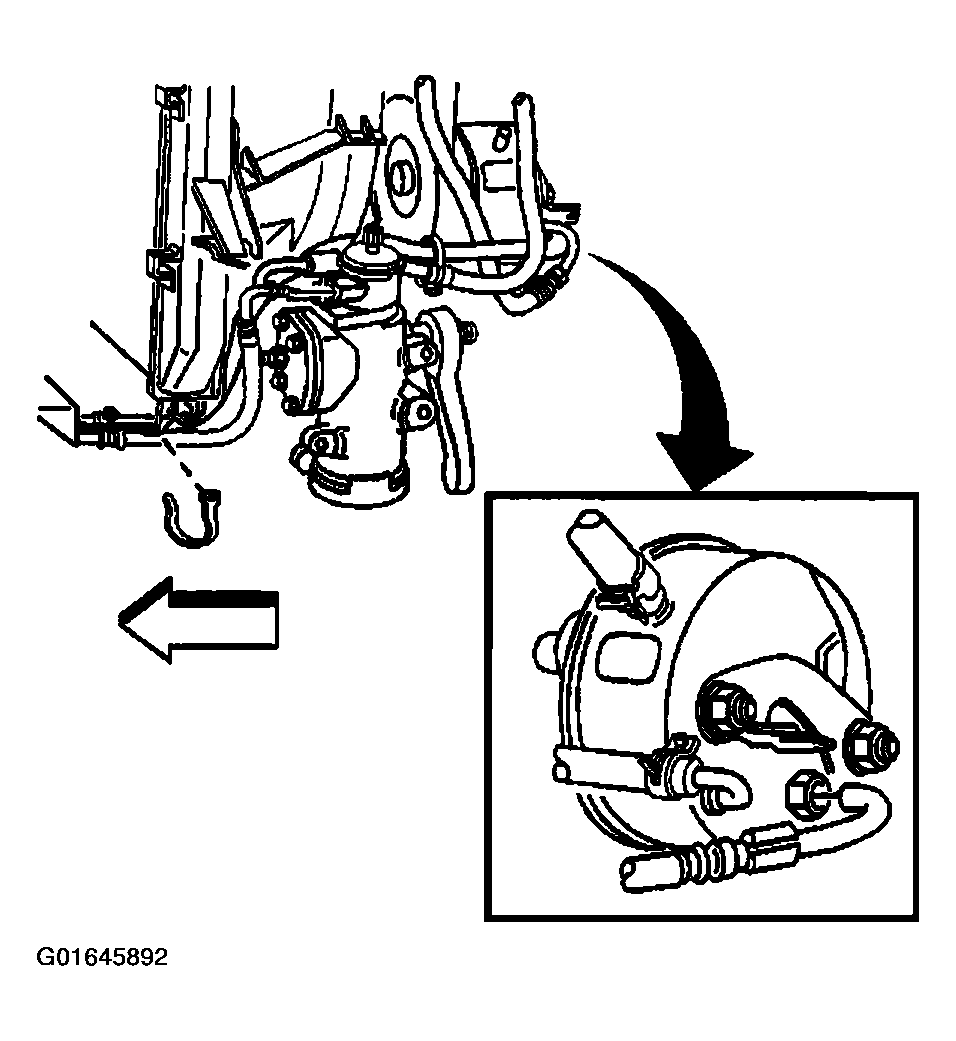

    Fig 1: Disconnecting Hydraulic Brake Booster Inlet Hose
    G01645892Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
  4. Disconnect the hydraulic brake booster inlet hose from the hydraulic brake booster.
  5. Remove the hydraulic brake booster inlet hose from vehicle.

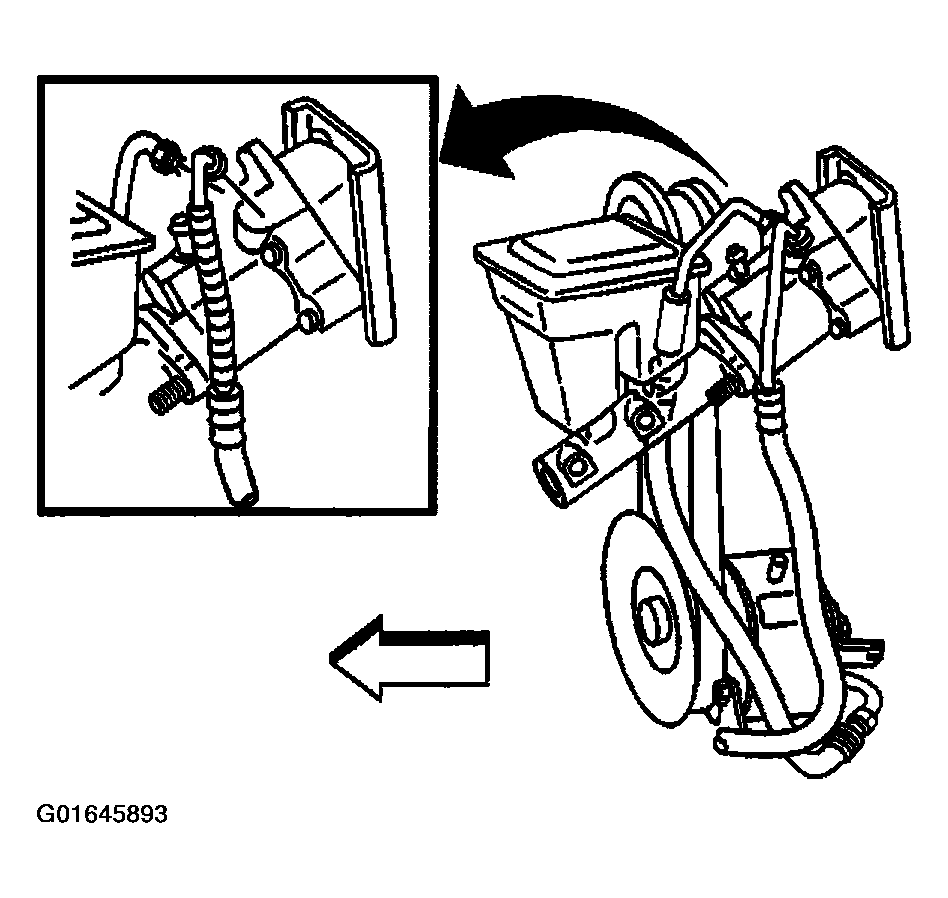

    Fig 2: Removing Hydraulic Brake Booster Inlet Hose From Vehicle
    G01645893Courtesy of GENERAL MOTORS CORP.
