Installation Procedure

NOTE: Do not start the engine with any power steering hose disconnected, or damage to the components could occur.
  1. Install the hydraulic brake booster inlet hose to vehicle.

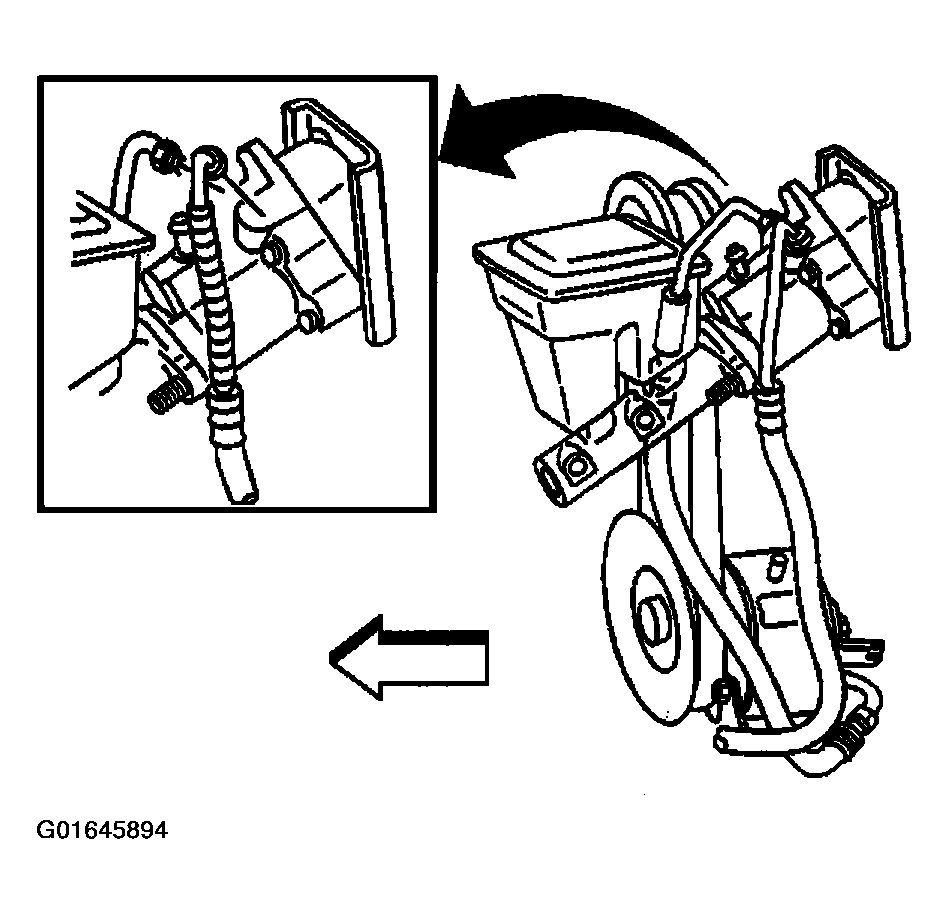

    Fig 1: Installing Hydraulic Brake Booster Inlet Hose To Vehicle
    G01645894Courtesy of GENERAL MOTORS CORP.
  2. Connect the hydraulic brake booster inlet hose to the hydraulic brake booster.
  3. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Connect the hydraulic brake booster inlet hose to the power steering pump.

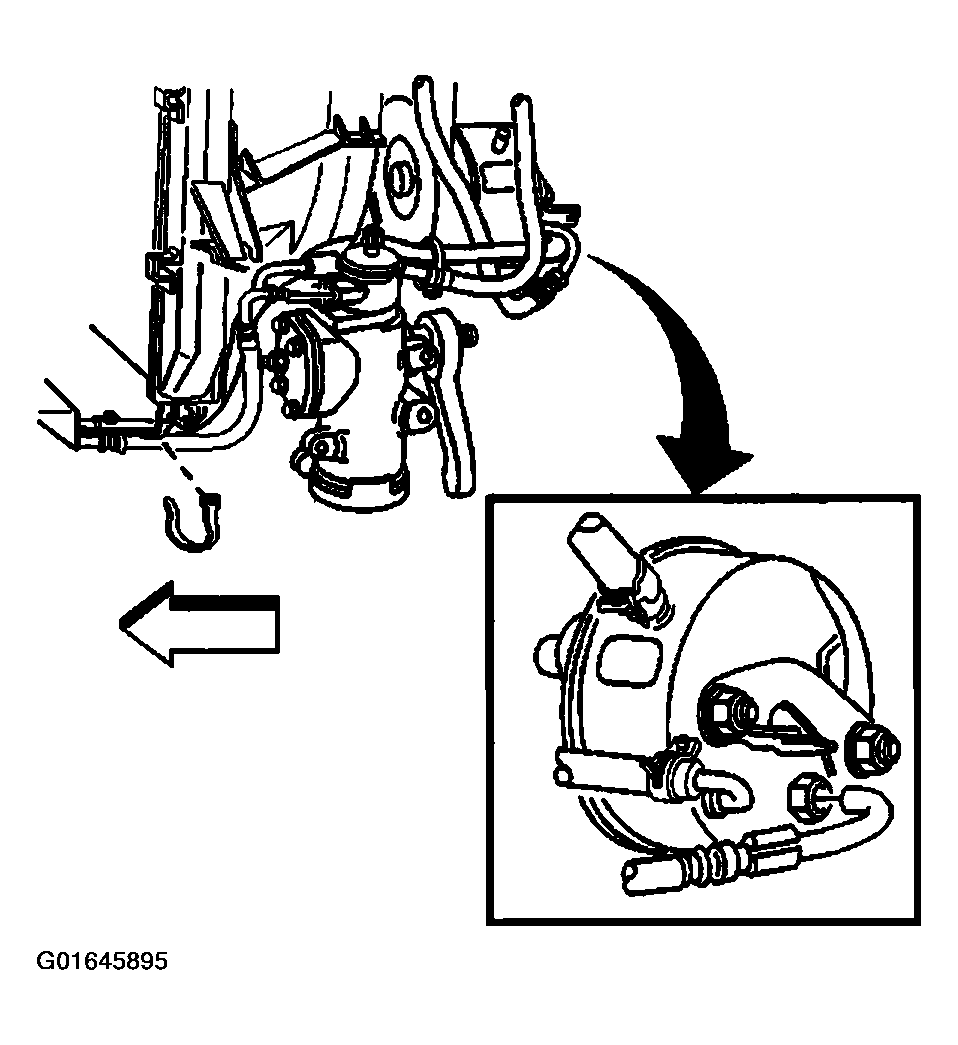

    Fig 2: Connecting Hydraulic Brake Booster Inlet Hose To Power Steering Pump
    G01645895Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the hydraulic brake booster inlet hose to the power steering pump to 27 N.m (20 lb ft).

  5. Bleed the system. Refer to BLEEDING THE POWER STEERING SYSTEM .
