Whine or Growl Noise from the Power Steering System

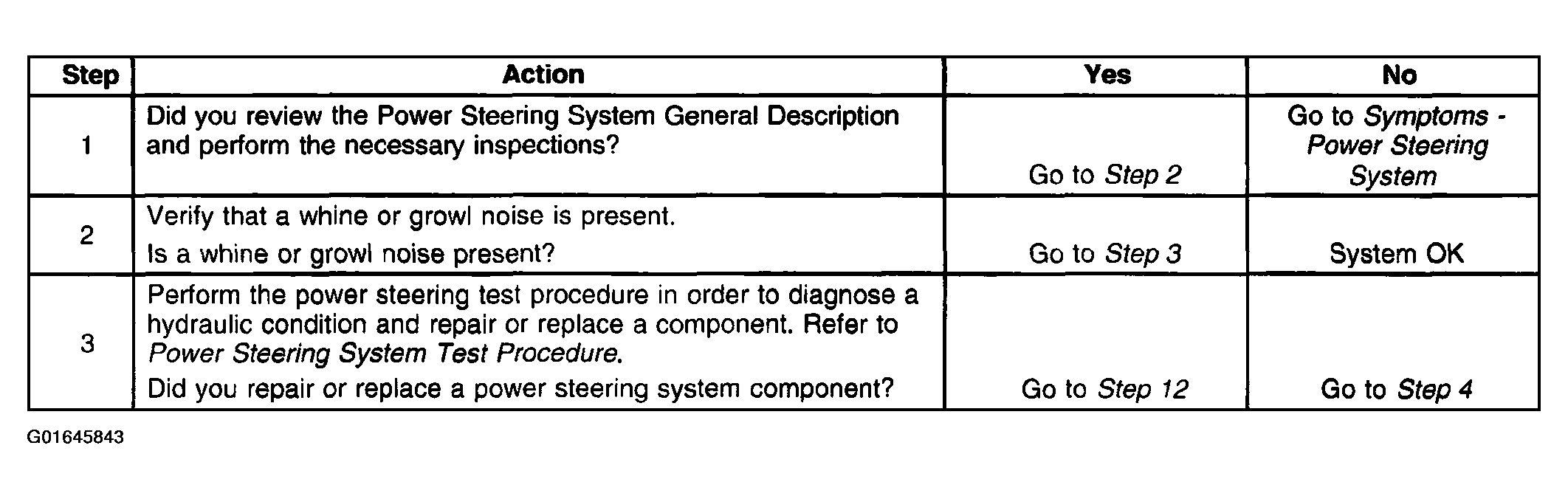

Fig 1: Whine Or Growl Noise From The Power Steering System (1 Of 2)
G01645843Courtesy of GENERAL MOTORS CORP.

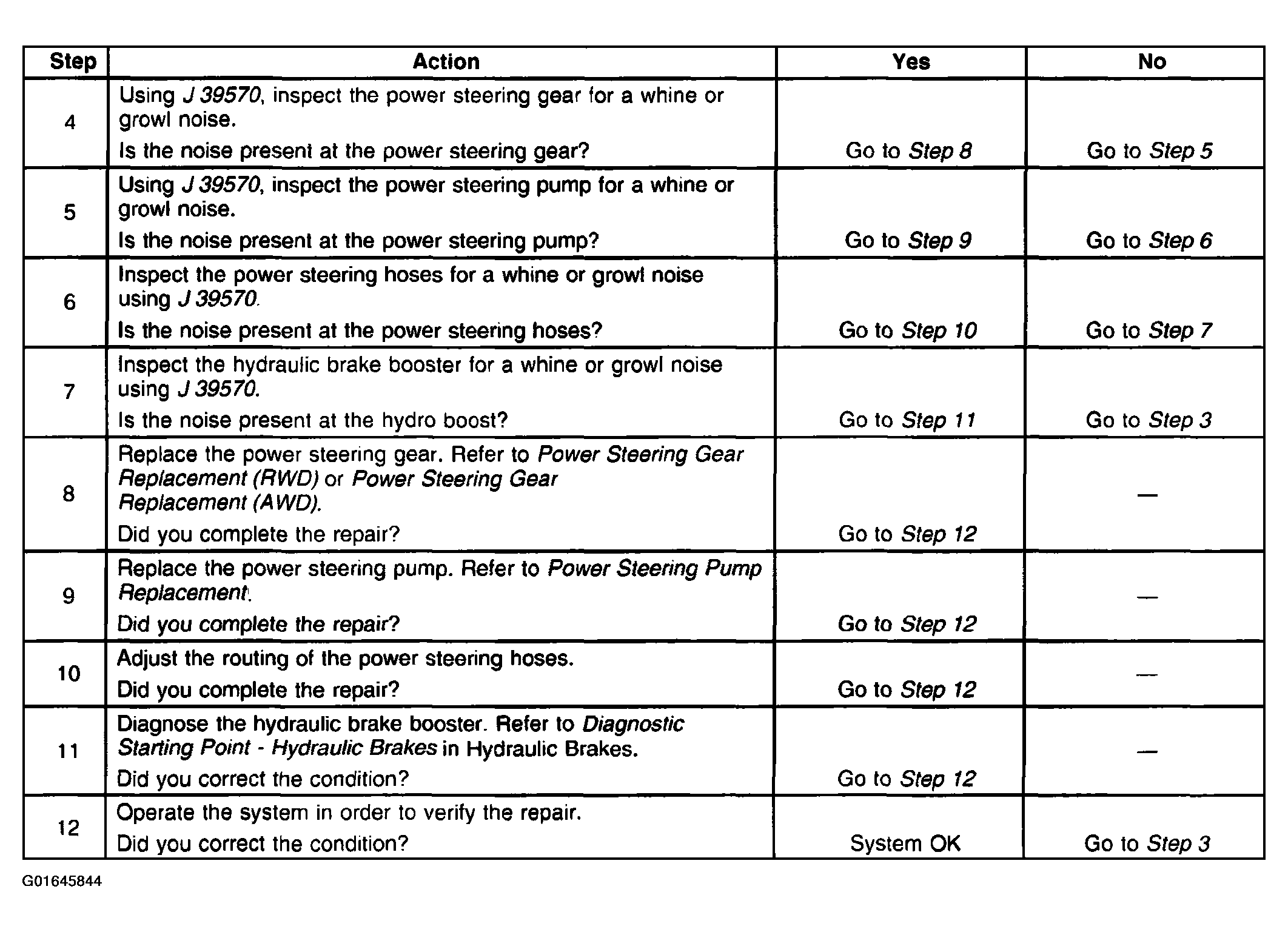

Fig 2: Whine Or Growl Noise From The Power Steering System (2 Of 2)
G01645844Courtesy of GENERAL MOTORS CORP.
