Steering Effort Hard in One or Both Directions

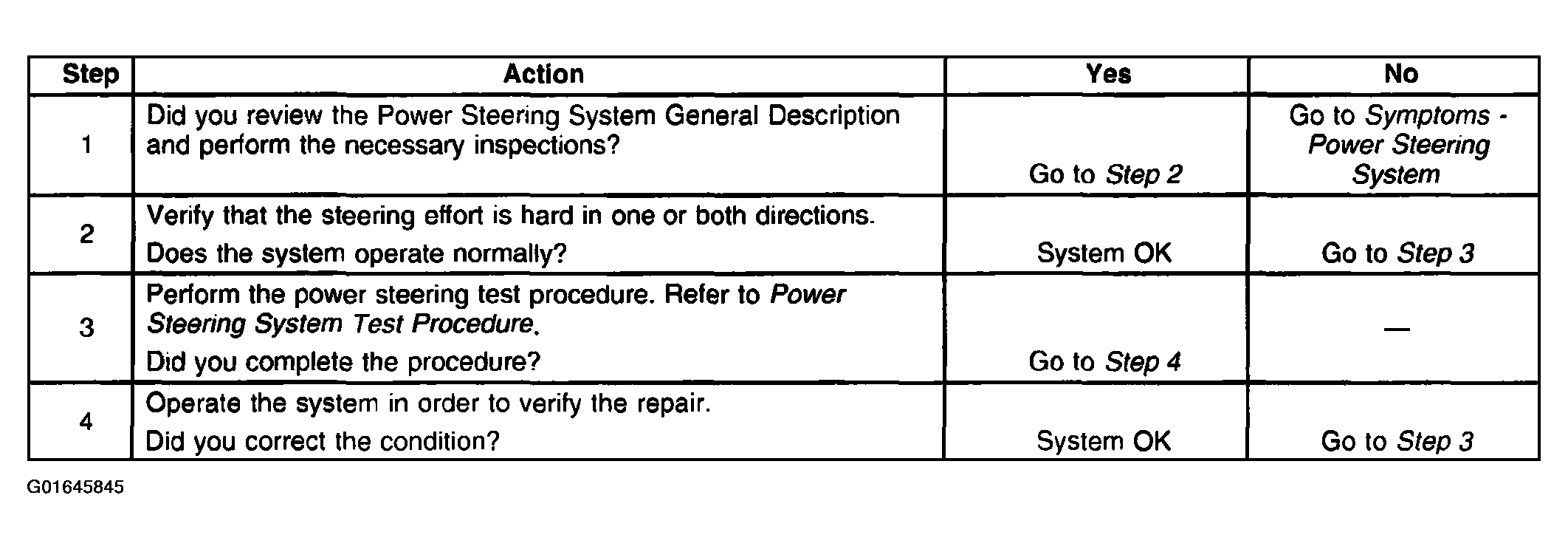

Fig 1: Steering Effort Hard In One Or Both Directions

G01645845

Courtesy of GENERAL MOTORS CORP.
