Removal Procedure

  1. Remove the trim cover from the rear seat belt retractor, by grasping the sides and pull downward.
  2. Remove the seat belt retractor buckle from the latch.
    1. 2.1. Locate the red dot in the center of the buckle.
    2. 2.2. Insert a small pointed tool in the center of the buckle.
    3. 2.3. Push inward for it to release from the latch.

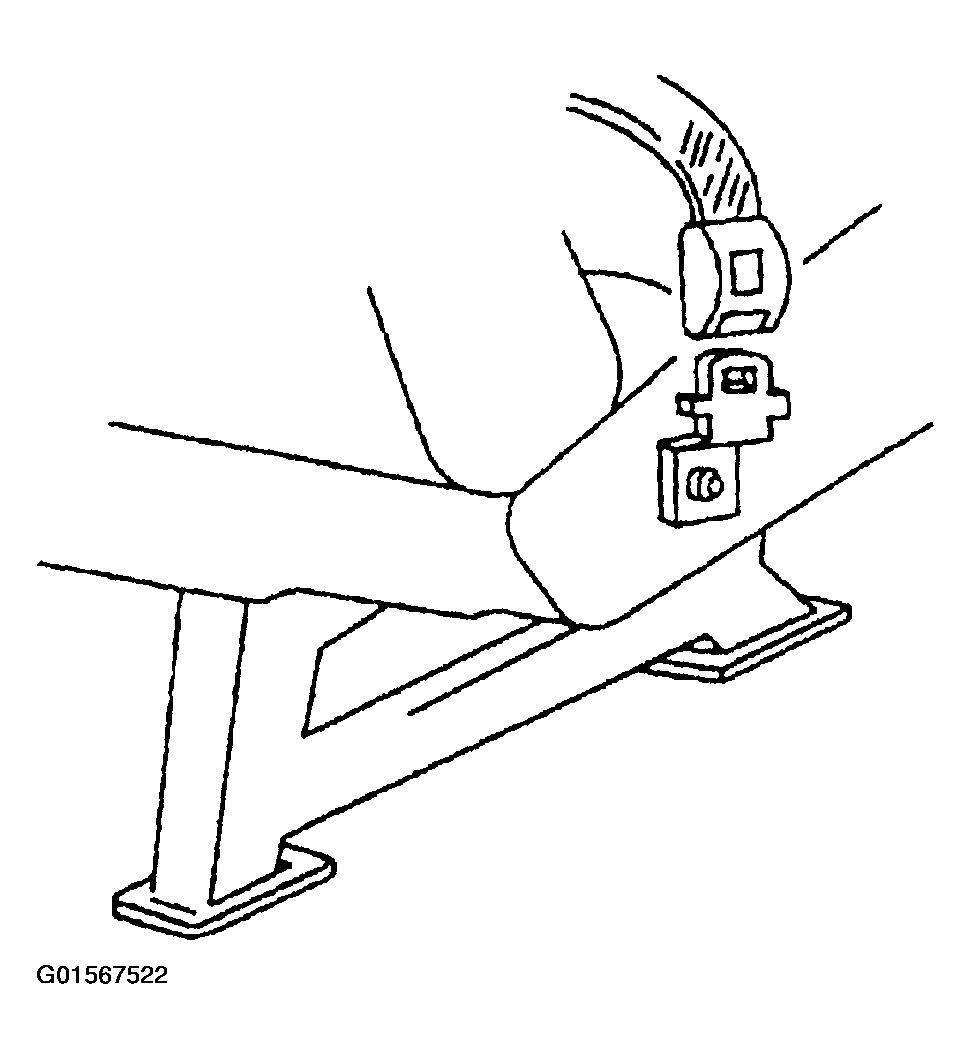

      Fig 1: Removing Seat Belt Retractor Buckle From Latch (Right Rear)
      G01567522Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat belt retractor nuts from the roof reinforcement.
  4. Remove the rear seat belt retractor from the vehicle.

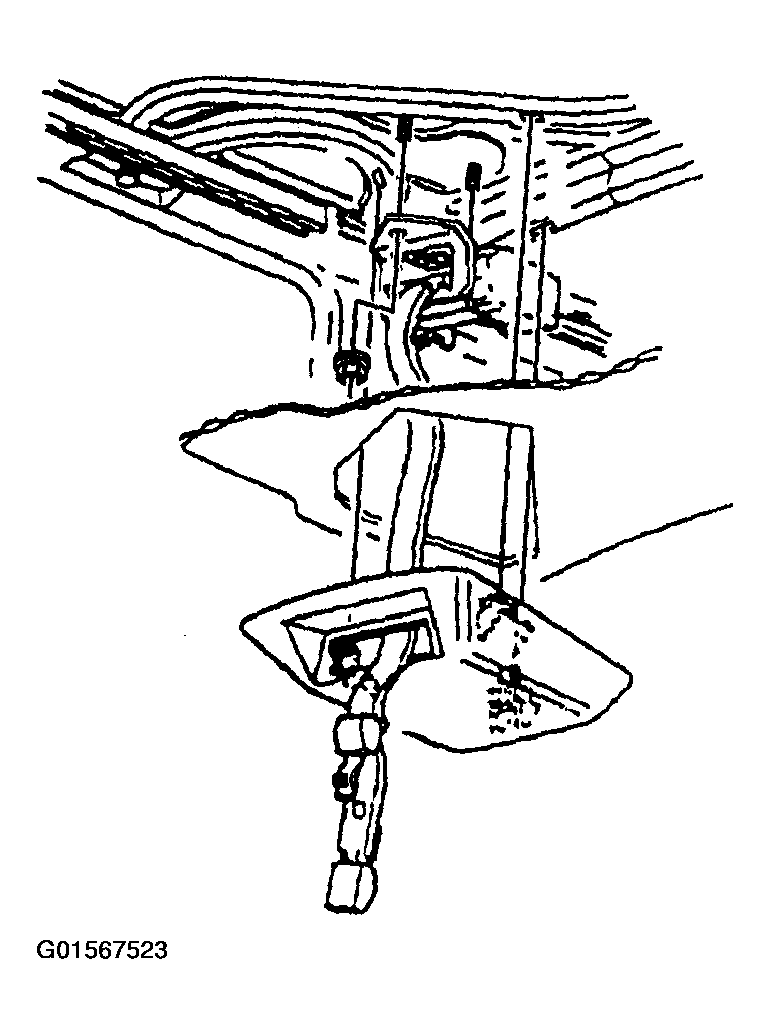

    Fig 2: Removing Rear Seat Belt Retractor From Vehicle (Right Rear)
    G01567523Courtesy of GENERAL MOTORS CORP.
