Installation Procedure

  1. Install the rear seat belt retractor to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear seat belt retractor nuts to the roof reinforcement panel.

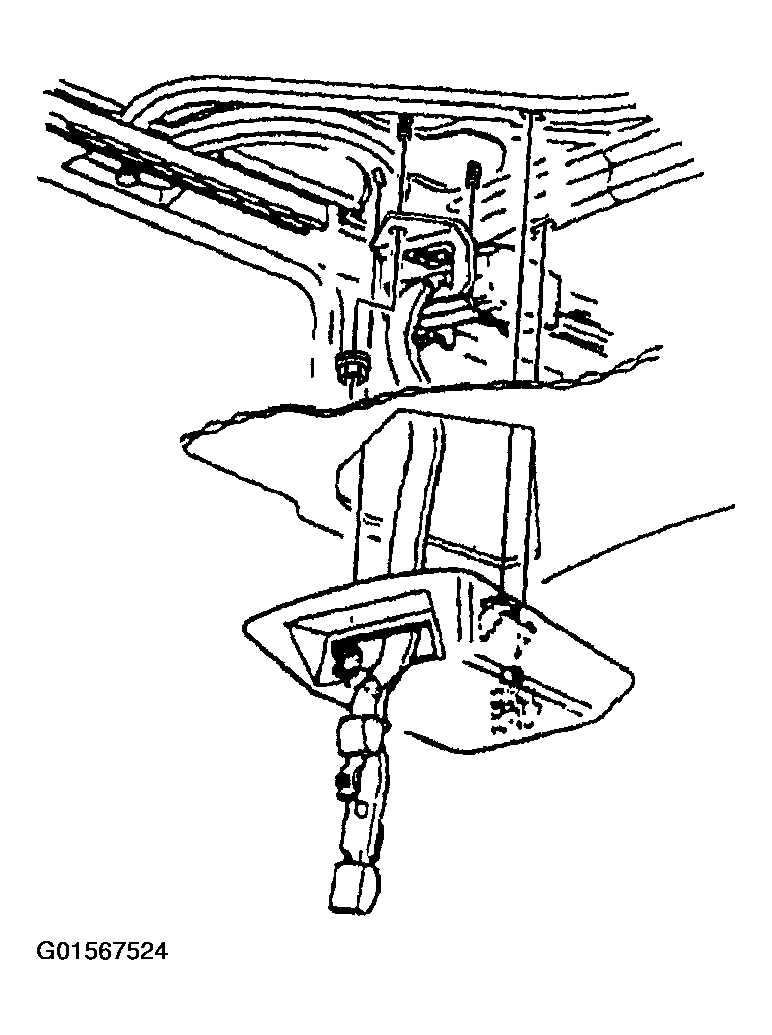

    Fig 1: Installing Rear Seat Belt Retractor To Vehicle (Right Rear)
    G01567524Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the seat belt retractor nuts to 35 N.m (26 lb ft).

  3. Snap the retractor cover into place.
  4. Install the seat belt buckle to the latch.

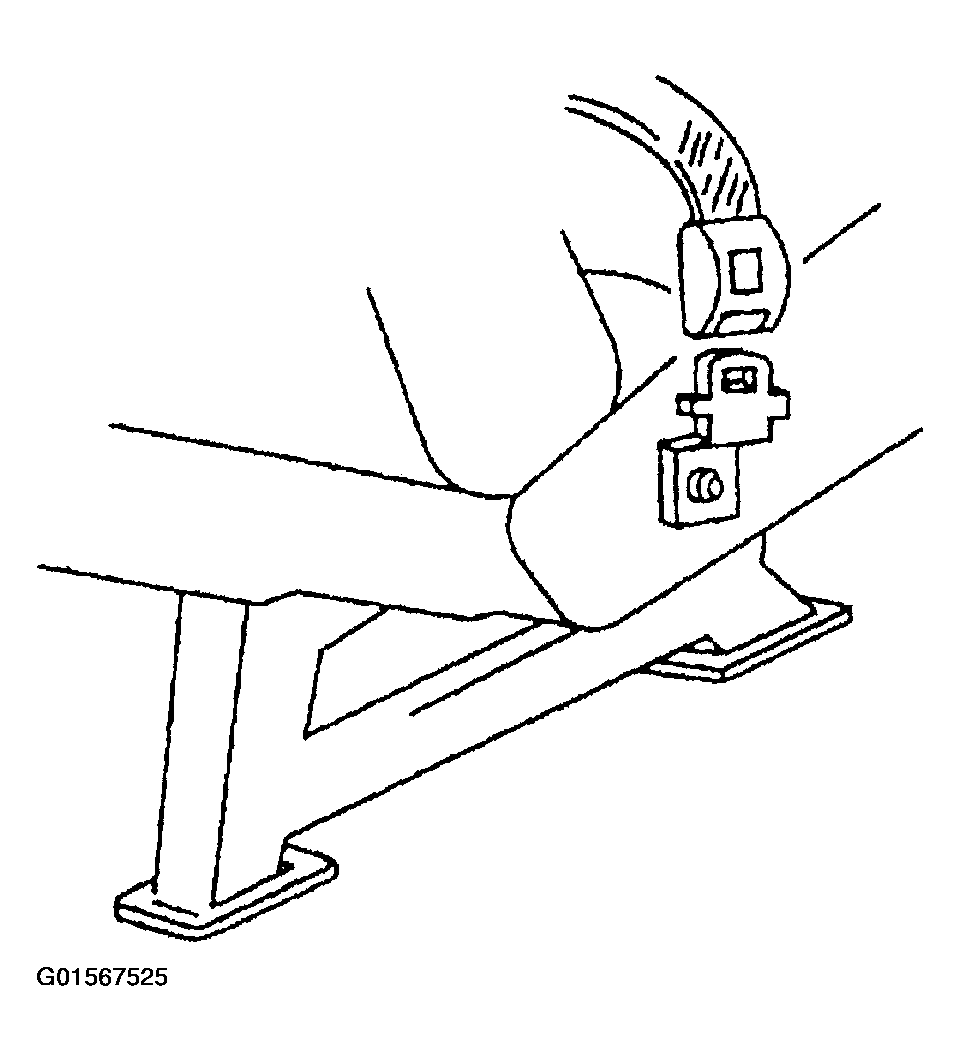

    Fig 2: Installing Seat Belt Buckle To Latch (Right Rear)
    G01567525Courtesy of GENERAL MOTORS CORP.
