Removal Procedure

  1. Slide the front seat all the way forward.
  2. Remove the seat belt from the seat belt guide located on the side of the bucket seat.
  3. Remove the cover from the shoulder belt guide to expose the bolt.
  4. Remove the retaining bolt from the shoulder belt guide adjuster bracket.
  5. Remove the right front lock pillar inside garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LF LOCK PILLAR in Interior Trim.
  6. Remove the cover on the base of the retractor to expose the bolt.
  7. Remove the bolt from the retractor to the pillar.
  8. Remove the electrical connectors.
  9. Remove the retractor from the vehicle.

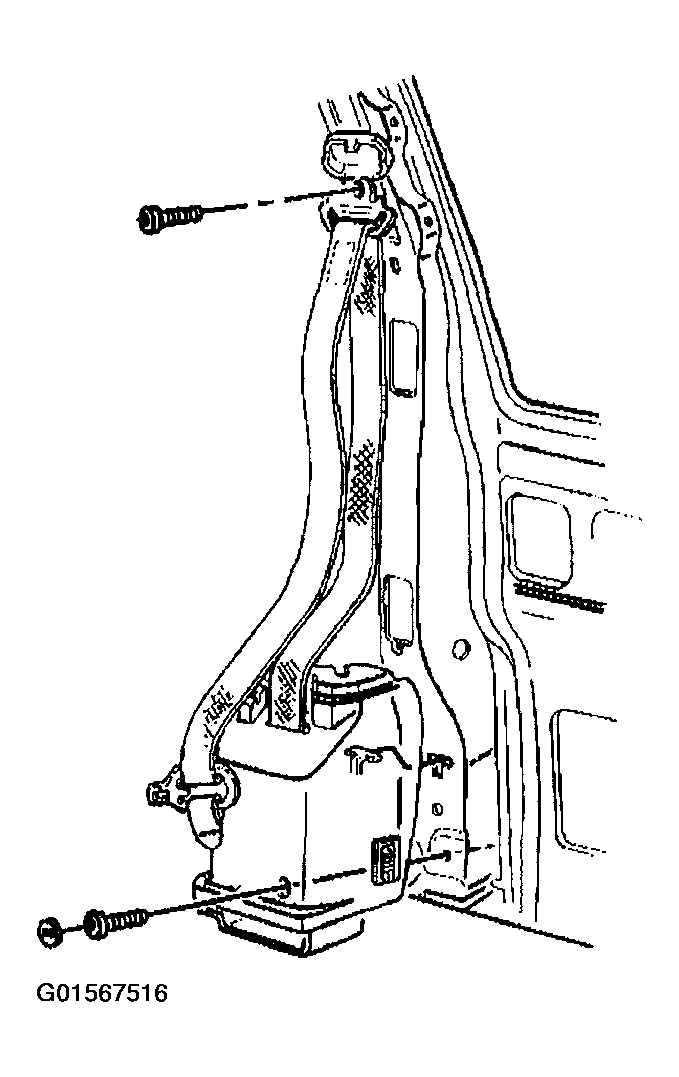

    Fig 1: Seat Belt Retractor (Right Front)
    G01567516Courtesy of GENERAL MOTORS CORP.
