Removal Procedure

  1. Remove the jack storage access door.
  2. Remove the storage tray. Squeeze the storage tray from underneath. This will expose the retractor bolt.

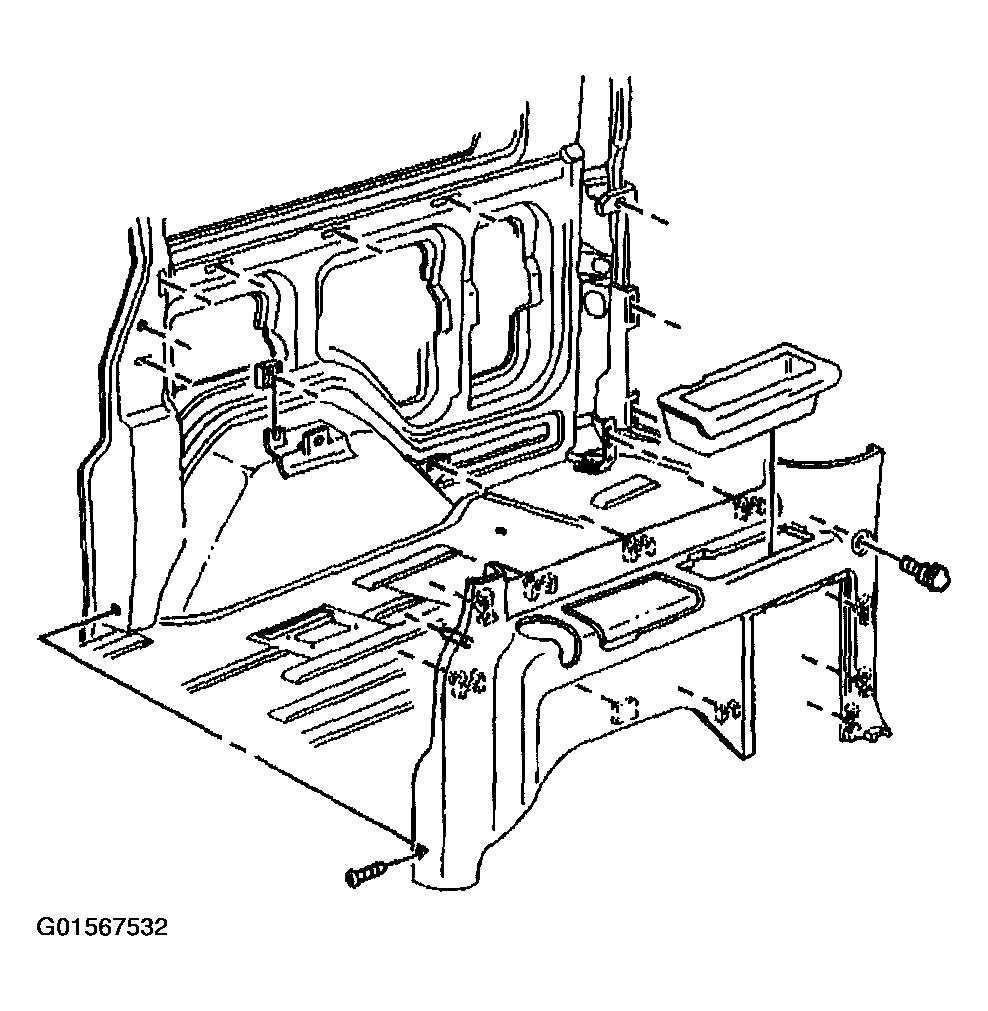

    Fig 1: Storage Tray (No.2 Right Rear)
    G01567532Courtesy of GENERAL MOTORS CORP.
  3. Remove the retractor retaining bolt.
    Fig 2: Retractor Retaining Bolt (No.2 Right Rear)
    G01567533Courtesy of GENERAL MOTORS CORP.
  4. Remove the shoulder belt cover to expose the bolt.
  5. Remove the shoulder belt retaining bolt from the bracket.
  6. Remove the retractor from the vehicle.
    Fig 3: Removing Retractor From Vehicle (No.2 Right Rear)
    G01567534Courtesy of GENERAL MOTORS CORP.
