Installation Procedure

  1. Install the retractor to the vehicle.

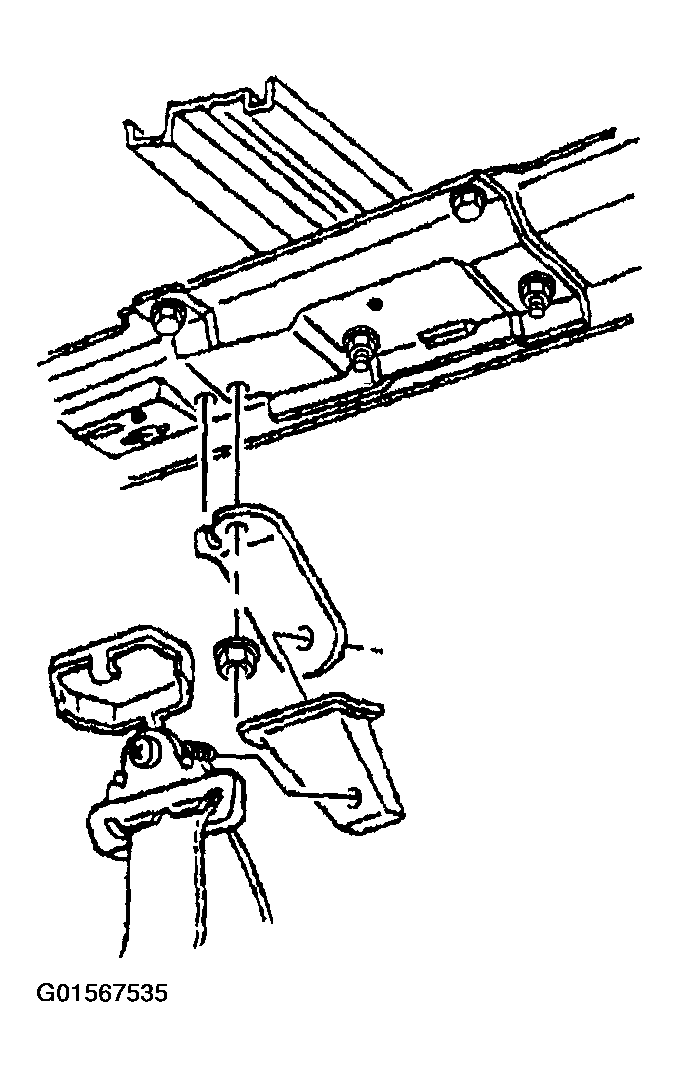

    Fig 1: Installing Retractor To Vehicle (No.2 Right Rear)
    G01567535Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt retaining the shoulder belt to the bracket.

    Tighten

    Tighten the bolt retaining the shoulder belt to the bracket to 30 N.m (22 lb ft).

  3. Install the shoulder belt cover.
  4. Install the retractor retaining bolt.

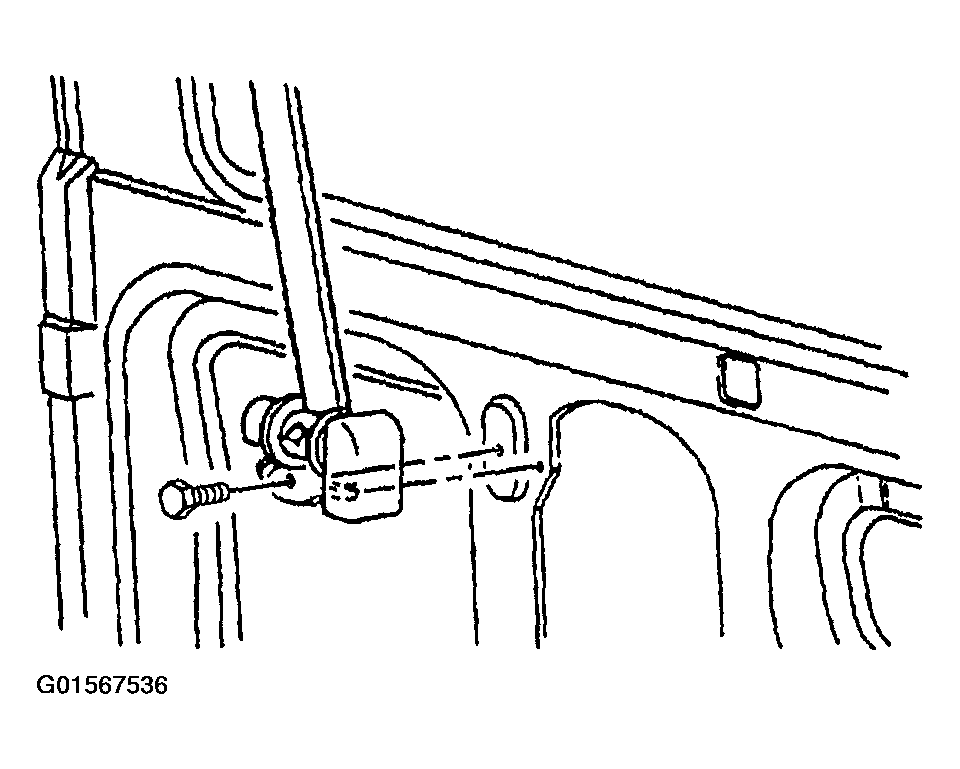

    Fig 2: Retractor Retaining Bolt (No.2 Right Rear)
    G01567536Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the retractor retaining bolt to 53 N.m (39 lb ft).

  5. Install the storage tray. Squeeze the storage tray together. Press the storage tray into place.

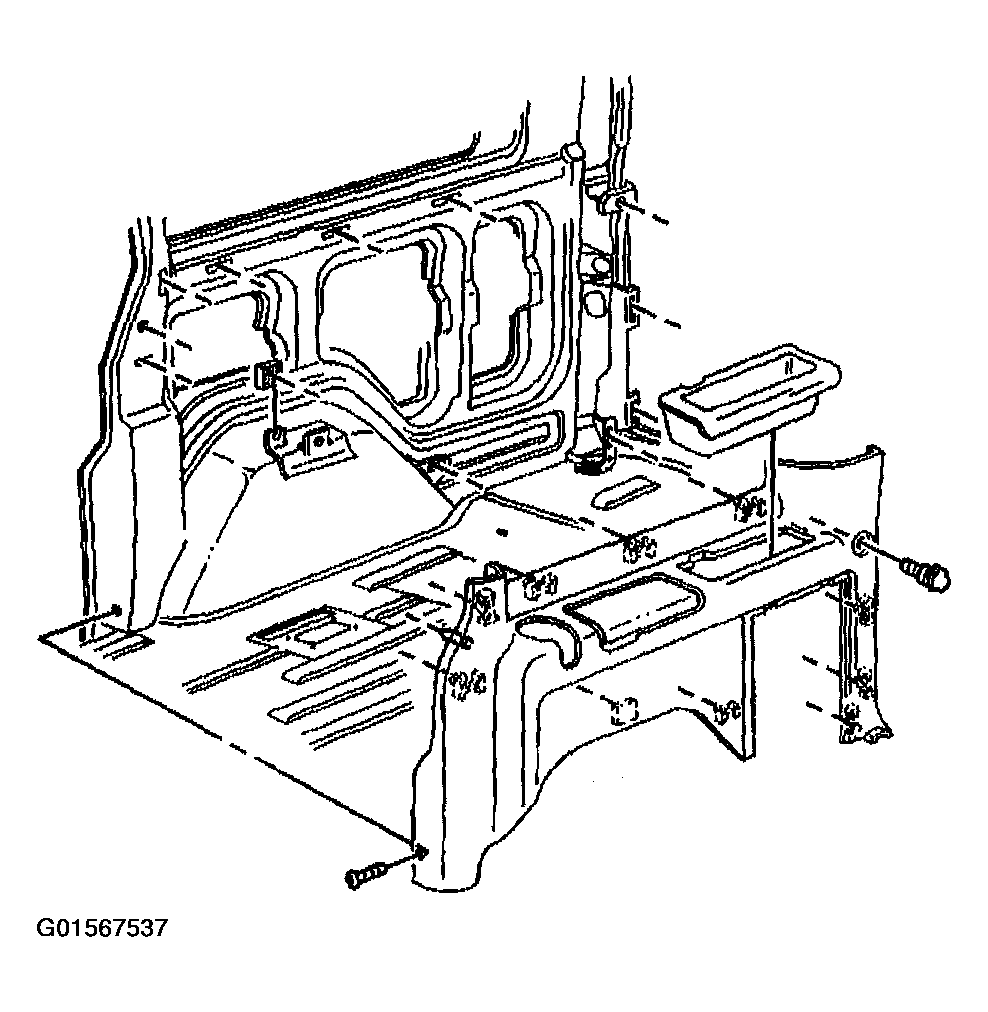

    Fig 3: Storage Tray (No.2 Right Rear)
    G01567537Courtesy of GENERAL MOTORS CORP.
  6. Install the jack storage access door.
