Removal Procedure

  1. Remove the left rear storage trays. Squeeze the storage tray and pull upward to release.

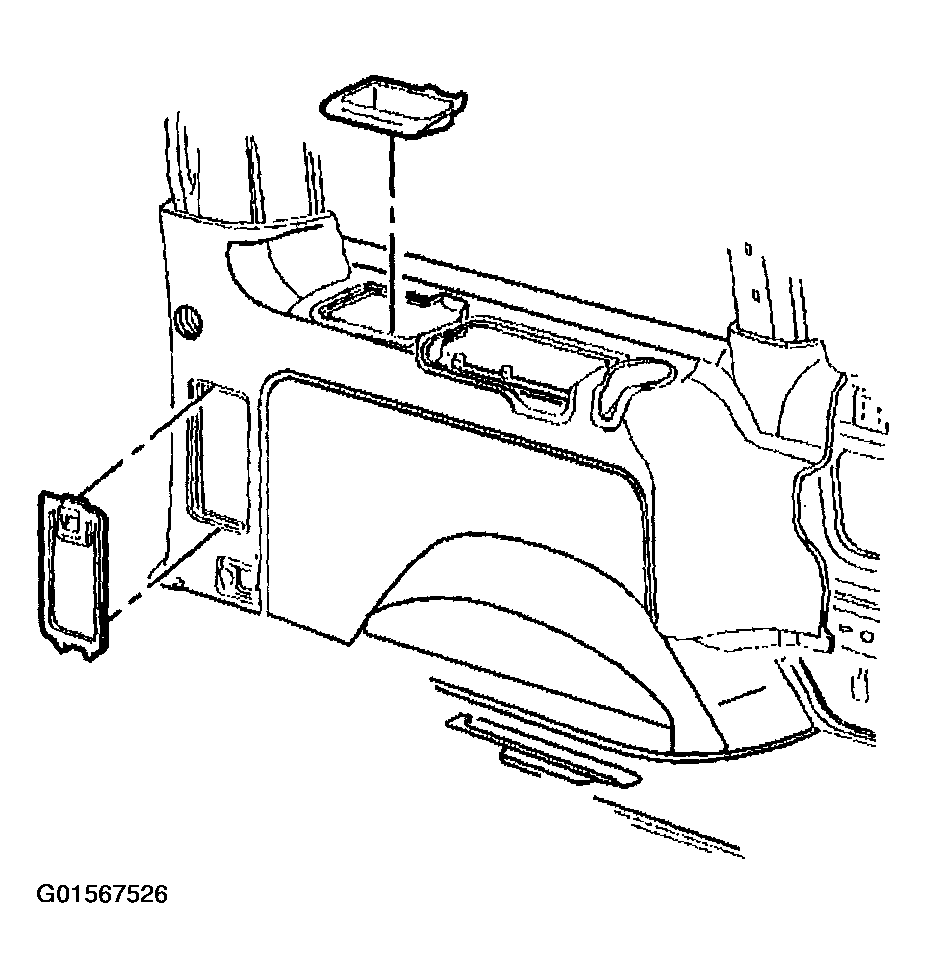

    Fig 1: Left Rear Storage Trays (No.2 Left Rear)
    G01567526Courtesy of GENERAL MOTORS CORP.
  2. Remove the shoulder belt cover to expose the bolt.
  3. Remove the shoulder belt retaining bolt from the bracket.

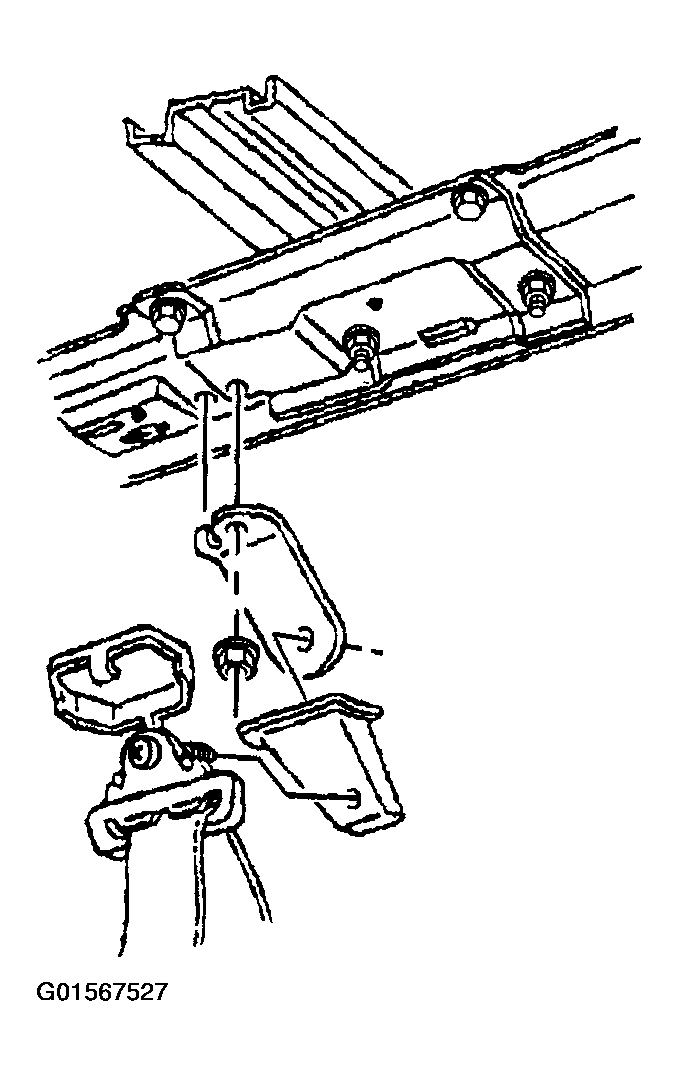

    Fig 2: Removing Shoulder Belt Retaining Bolt From Bracket (No.2 Left Rear)
    G01567527Courtesy of GENERAL MOTORS CORP.
  4. Remove the retractor retaining bolt.
  5. Remove the retractor from the vehicle.

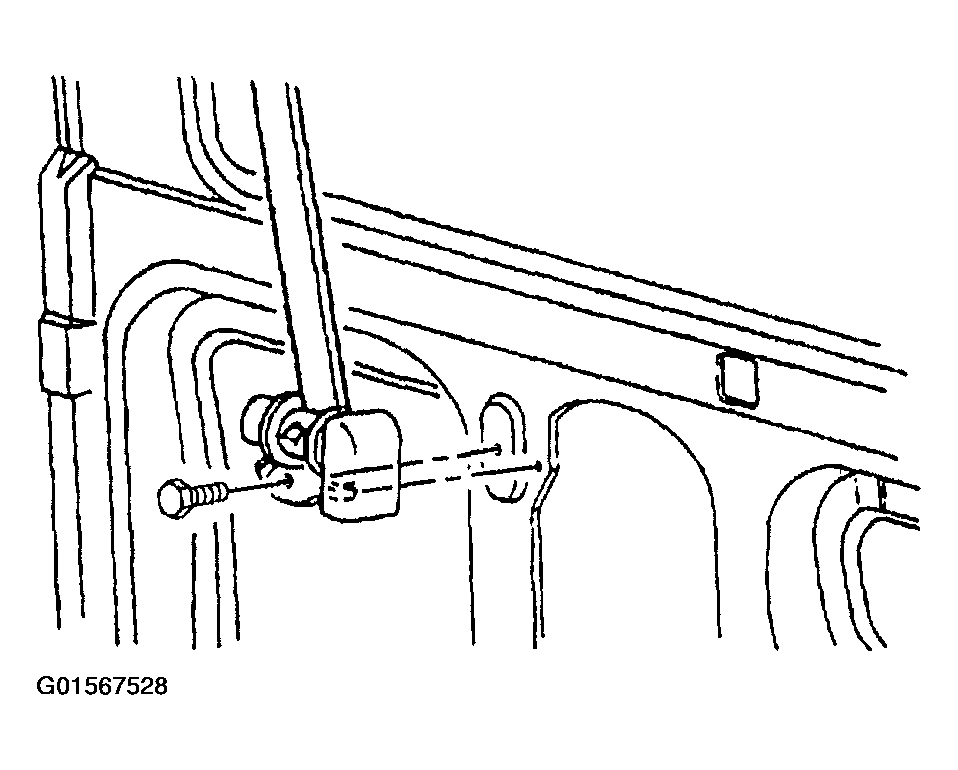

    Fig 3: Removing Retractor From Vehicle (No.2 Left Rear)
    G01567528Courtesy of GENERAL MOTORS CORP.
