Installation Procedure

Install the retractor to the vehicle.

Fig 1: Installing Retractor To Vehicle (No.2 Left Rear)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the retractor retaining bolt.
Tighten

Tighten the retractor retaining bolt to 53 N.m (39 lb ft).
Install the shoulder belt retaining bolt to the bracket.

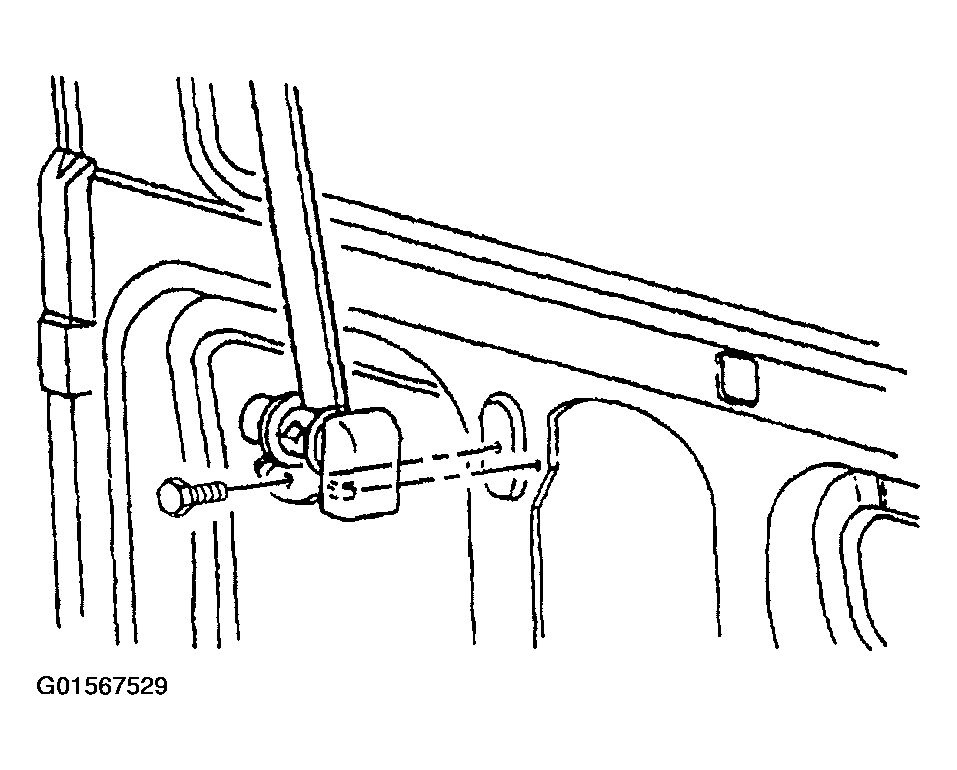

Fig 2: Installing Shoulder Belt Retaining Bolt To Bracket (No.2 Left Rear)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the shoulder belt retaining bolt to the bracket to 35 N.m (26 lb ft).
Install the retractor retaining bolt.
Tighten

Tighten the retractor retaining bolt to 53 N.m (39 lb ft).
Install the storage trays. Squeeze the storage tray together. Press the storage tray into place.

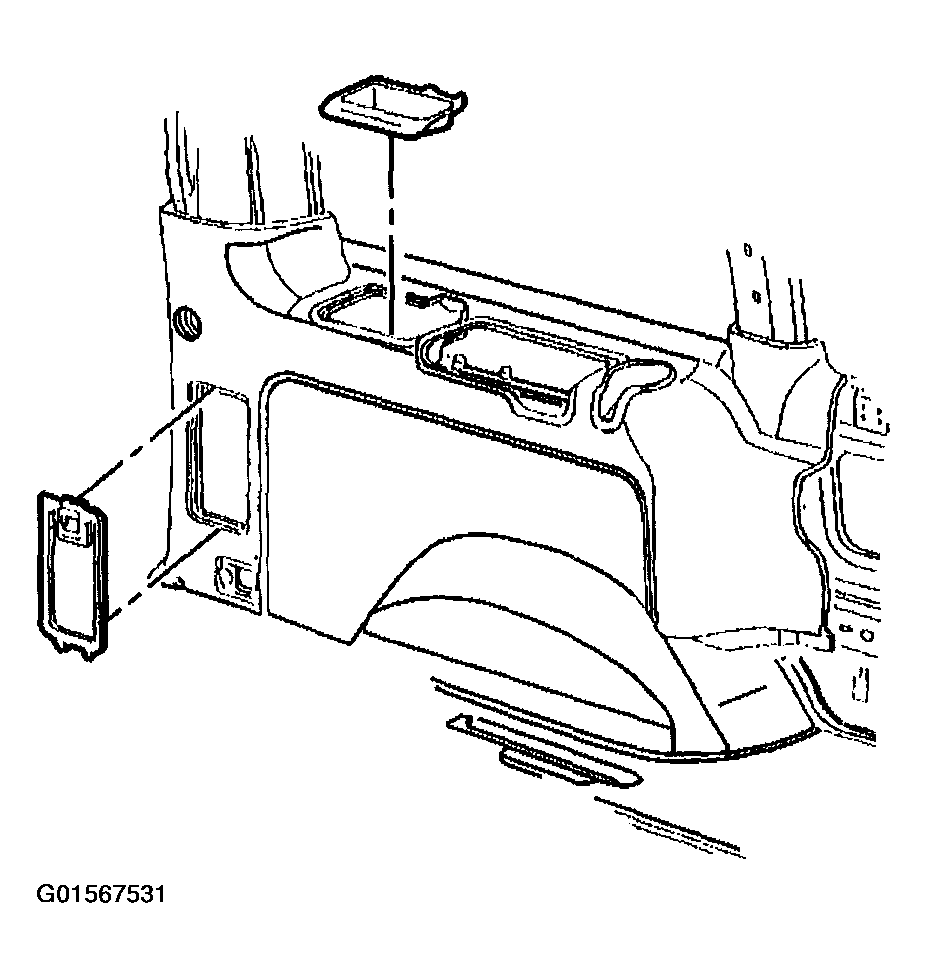

Fig 3: Storage Trays (No.2 Left Rear)
Courtesy of GENERAL MOTORS CORP.
