Removal Procedure

  1. Remove the left rear bucket seat. Refer to SEAT REPLACEMENT - BUCKET in Seats.
  2. Remove the seat belt bolt from the rear floor.

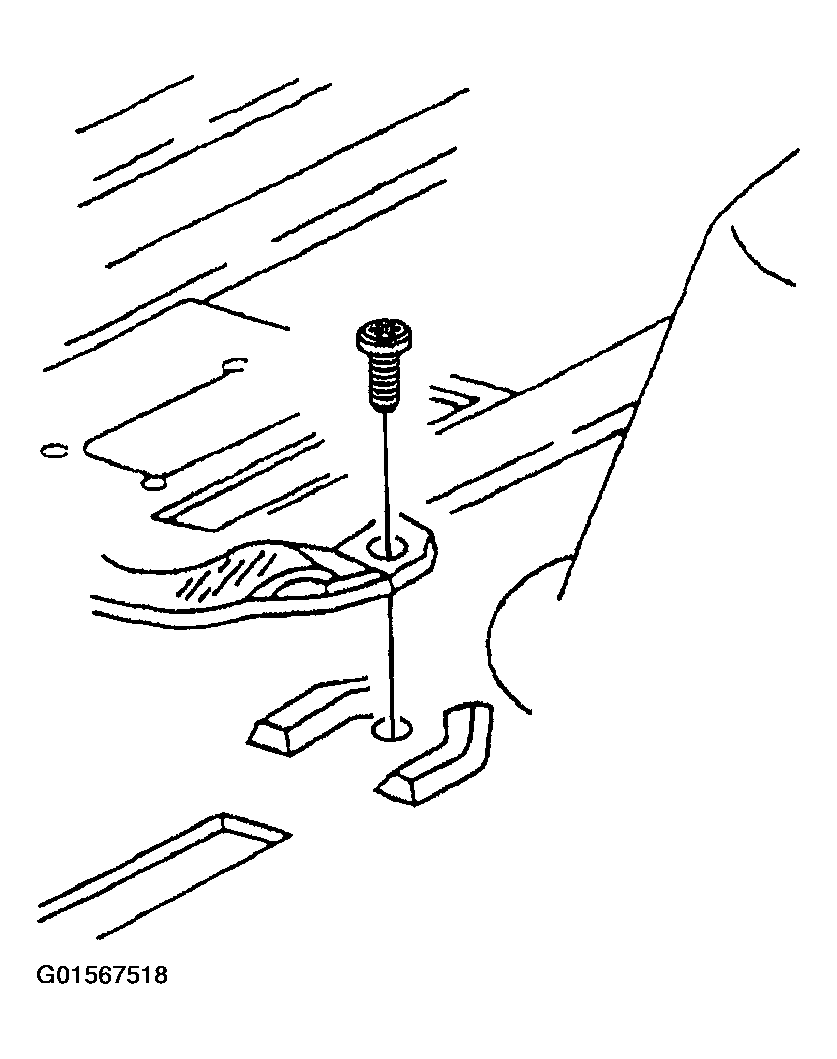

    Fig 1: Removing Seat Belt Bolt From Rear Floor (Left Rear)
    G01567518Courtesy of GENERAL MOTORS CORP.
  3. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE in Interior Trim.
  4. Remove the cover from the shoulder belt to expose the bolt.
  5. Remove the shoulder belt retaining bolt from the body side pillar.
  6. Remove the retractor bolt from the body side panel.

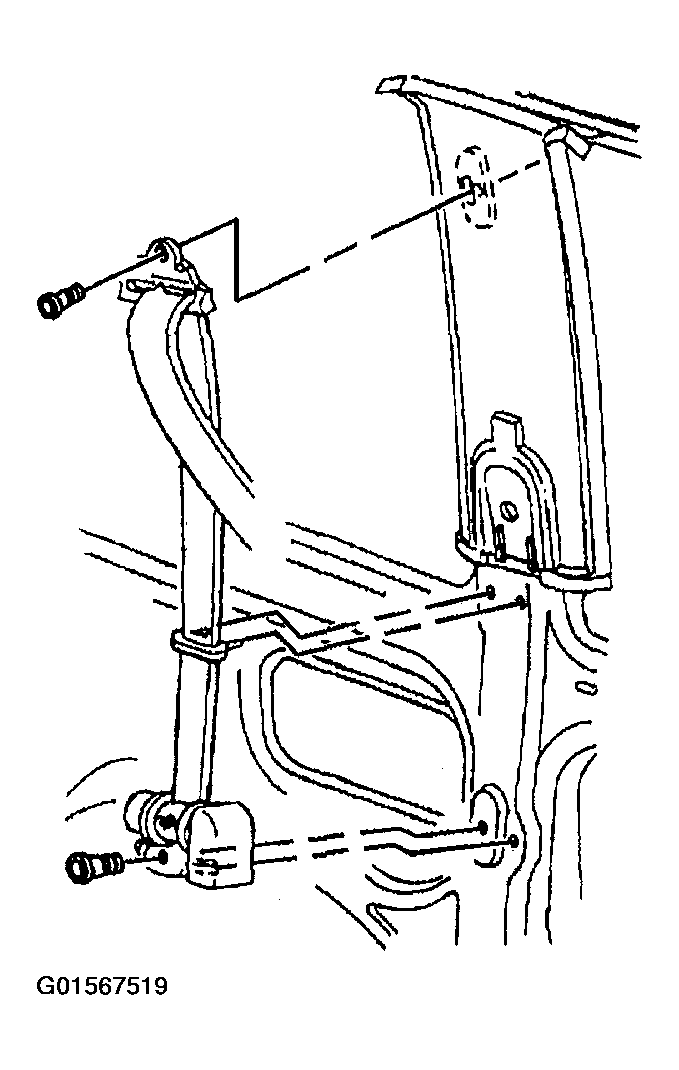

    Fig 2: Removing Retractor Bolt From Body Side Panel (Left Rear)
    G01567519Courtesy of GENERAL MOTORS CORP.
