Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the retractor bolt to the body side panel.

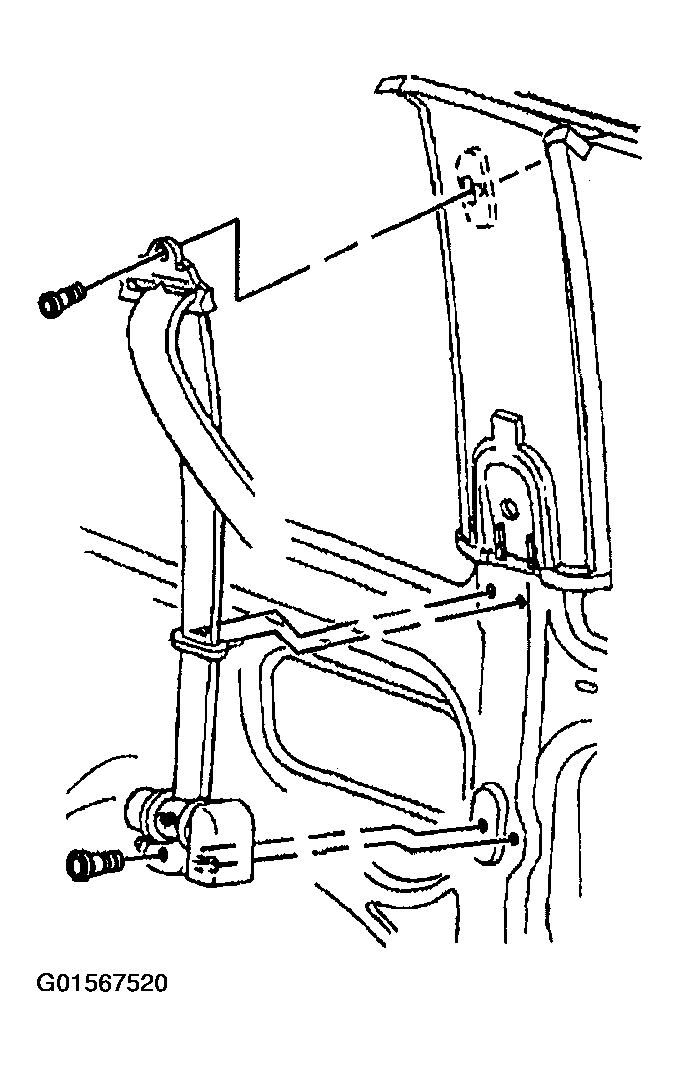

Fig 1: Installing Retractor Bolt To Body Side Panel (Left Rear)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the retractor bolt to 53 N.m (39 lb ft).
Install the shoulder belt bolt to the body side pillar.
Tighten

Tighten the shoulder belt bolt to the body side pillar to 30 N.m (22 lb ft).
Install the cover to the shoulder belt.
Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE in Interior Trim.
Install the seat belt bolt to the rear floor.

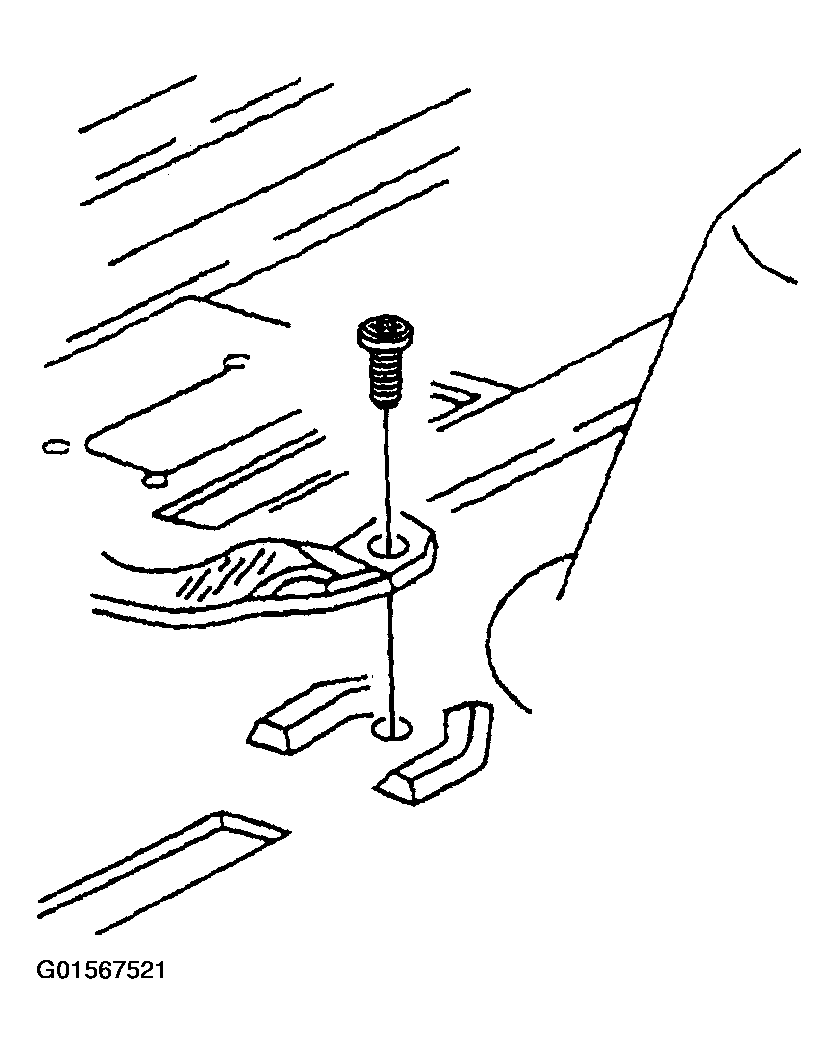

Fig 2: Installing Seat Belt Bolt To Rear Floor (Left Rear)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the seat belt bolt to the rear floor to 53 N.m (39 lb ft).
Install the left rear bucket seat. Refer to SEAT REPLACEMENT - BUCKET in Seats.
