Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Restraints >> Seat Belts >> Seat Belt System >> Repair Instructions >> Seat Belt Retractor Replacement - Left Front >> Removal Procedure

Removal Procedure

  1. Slide the front seat all the way forward.
  2. Remove the seat belt from the seat belt guide located on the side of the bucket seat.
  3. Remove the cover from the shoulder belt guide to expose the bolt.
  4. Remove the retaining bolt from the shoulder belt guide adjuster bracket.
  5. Remove the left inside garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LF LOCK PILLAR in Interior Trim.
  6. Remove the body side front lower molding. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
  7. Remove the electrical connectors.
  8. Remove the bolt retaining the retractor from the pillar, lift upward to release.
  9. Remove the retractor from the vehicle.

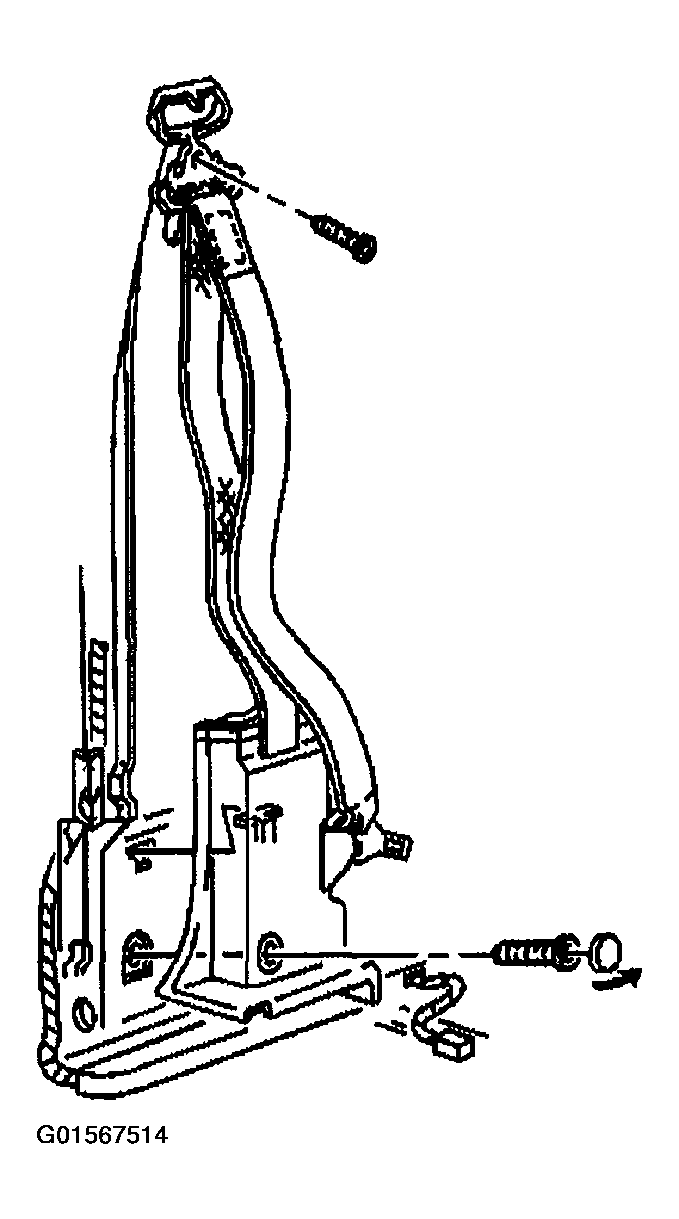

    Fig 1: Seat Belt Retractor (Left Front)
    G01567514Courtesy of GENERAL MOTORS CORP.
