Installation Procedure

Install the rear seat shoulder belt reinforcement to the roof.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts to retain the rear seat shoulder belt reinforcement to the roof.
Tighten

Tighten the rear seat shoulder belt reinforcement bolts to the roof 35 N.m (26 lb ft).
Install the nuts to retain the rear seat shoulder belt reinforcement to the roof.

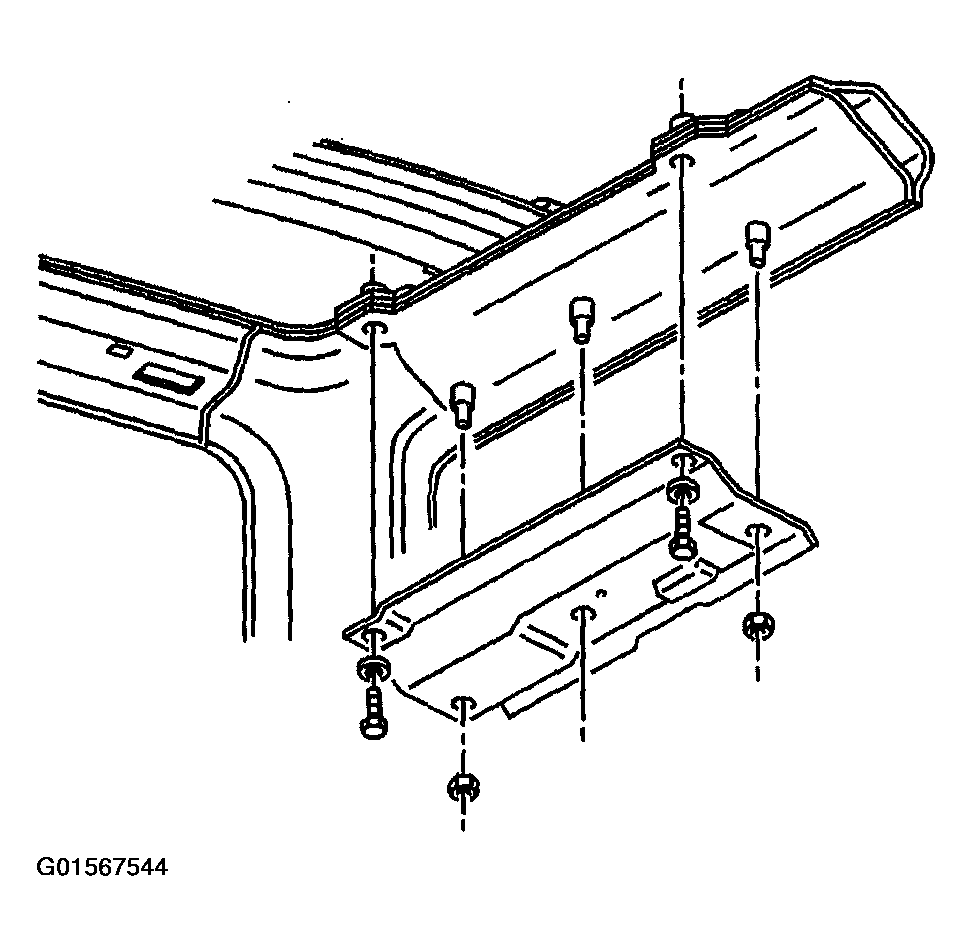

Fig 1: Installing Rear Seat Shoulder Belt Reinforcement To Roof (Right)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the rear seat shoulder belt reinforcement nuts to the roof to 35 N.m (26 lb ft).
Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
Install the nut to retain the rear seat shoulder belt bracket to the reinforcement.
Tighten

Tighten the seat shoulder belt bracket to the reinforcement nut to 35 N.m (26 lb ft).
Install the rear seat shoulder belt bracket cover.
Install the bolt to retain the rear seat shoulder belt to the bracket.

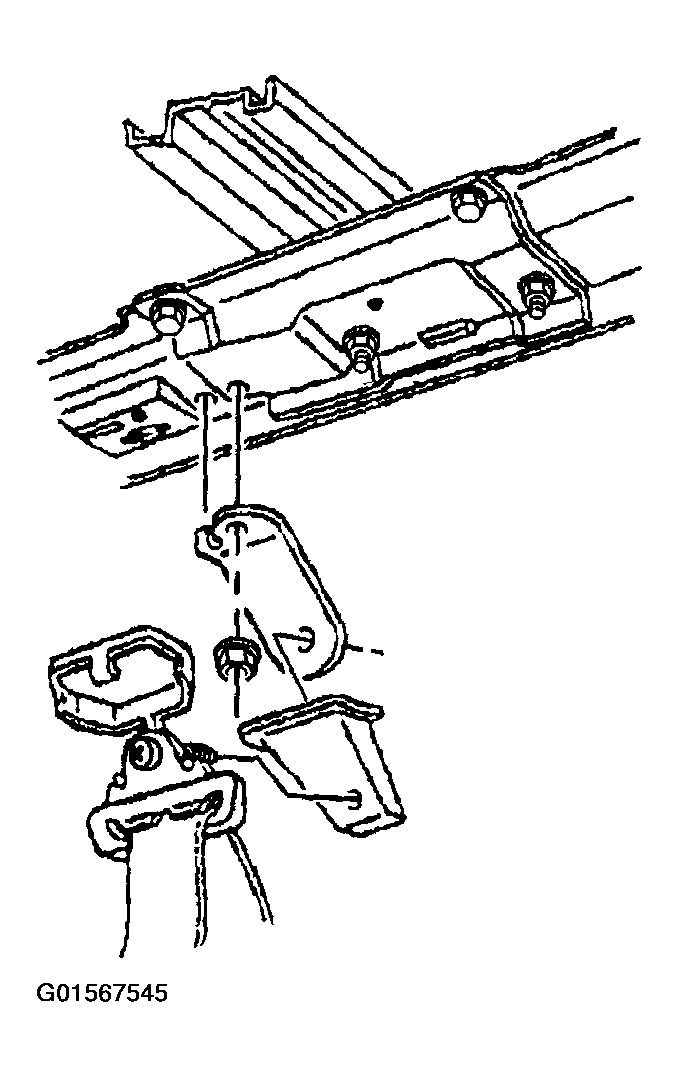

Fig 2: Installing Rear Seat Shoulder Belt Bracket To Reinforcement Retaining Nut (Right)
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the seat shoulder belt bracket to the reinforcement bolt to 30 N.m (22 lb ft).
Install the cover to the rear seat shoulder belt bolt.
