Removal Procedure

  1. Remove the cover from the rear seat shoulder belt anchor.
  2. Remove the bolt retaining the rear seat shoulder belt anchor to the bracket.
  3. Remove the rear seat shoulder belt bracket cover.
  4. Remove the nut retaining the rear seat shoulder belt bracket to the reinforcement.

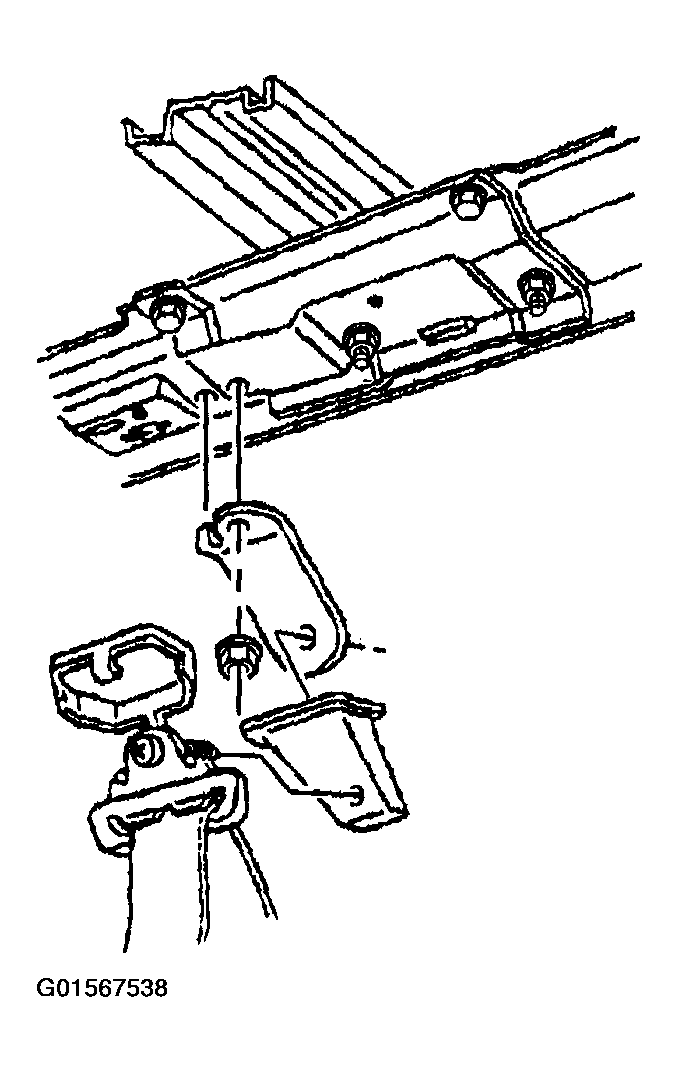

    Fig 1: Removing Rear Seat Shoulder Belt Bracket To Reinforcement Retaining Nut (Left)
    G01567538Courtesy of GENERAL MOTORS CORP.
  5. Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  6. Remove the nuts retaining the rear seat shoulder belt reinforcement to the roof.
  7. Remove the bolts retaining the rear seat shoulder belt reinforcement to the roof.
  8. Remove the rear seat shoulder belt reinforcement from the roof.

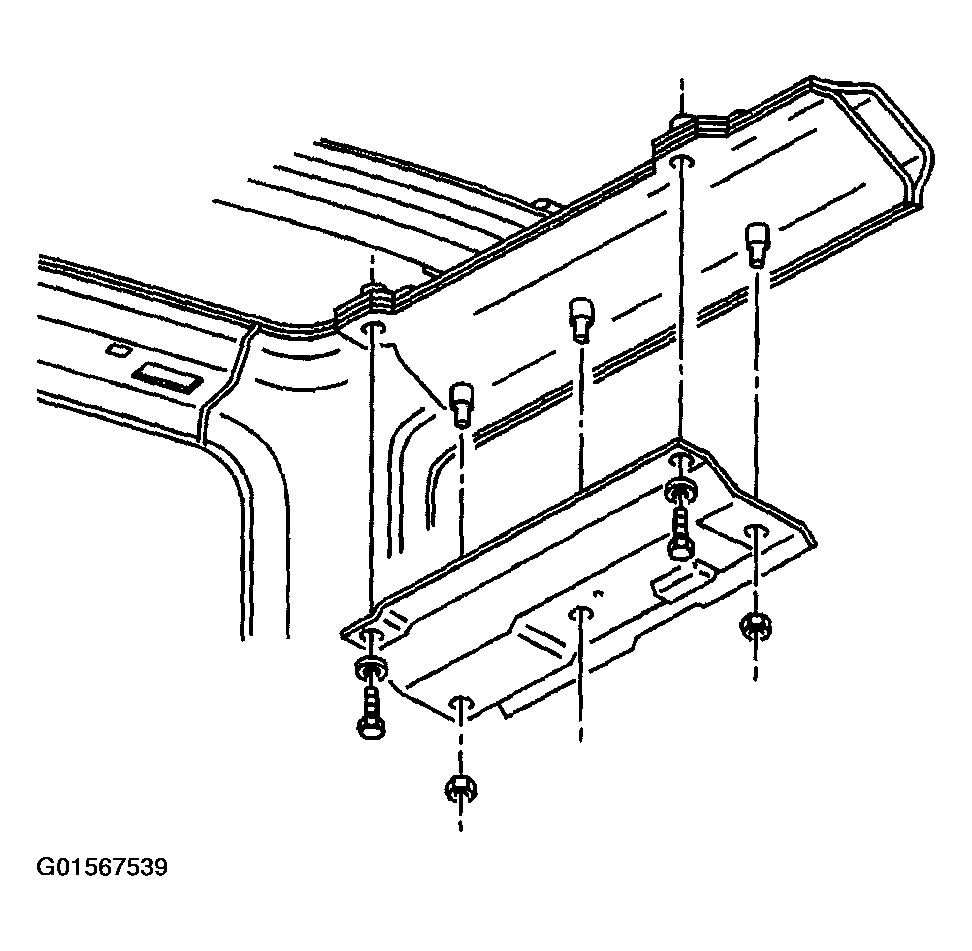

    Fig 2: Removing Rear Seat Shoulder Belt Reinforcement From Roof (Left)
    G01567539Courtesy of GENERAL MOTORS CORP.
