Removal Procedure

  1. Remove the rear seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH in Seats.
  2. Remove the seat belt latch retaining bolts from the seat frame.
    Fig 1: Removing Seat Belt Latch Retaining Bolts From Seat Frame (Center Rear)
    G01567506Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt latch retaining bolts from the seat frame.
  4. Remove the seat belt latch through the seat back.
  5. Remove the seat belt latch from the vehicle.

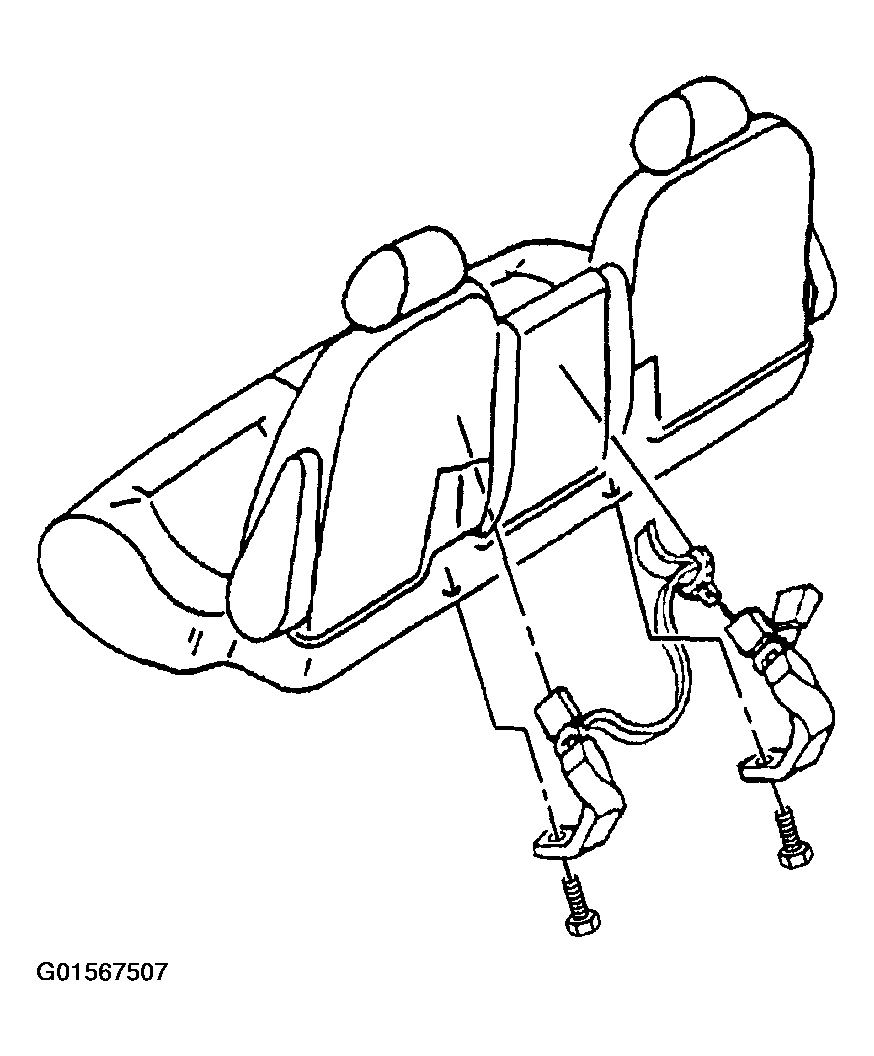

    Fig 2: Removing Seat Belt Latch From Vehicle (Center Rear)
    G01567507Courtesy of GENERAL MOTORS CORP.
