Installation Procedure

  1. Install the seat belt latch to the vehicle through the seat back.

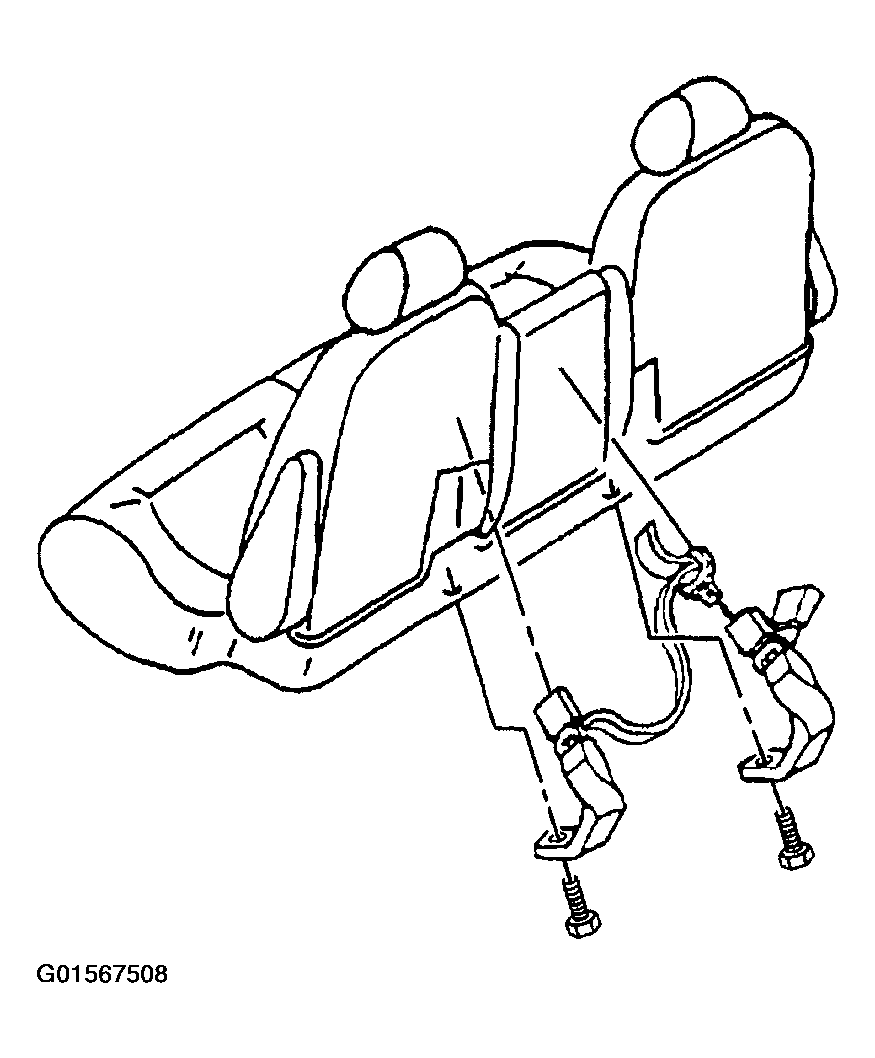

    Fig 1: Installing Seat Belt Latch To Vehicle Through Seat Back (Center Rear)
    G01567508Courtesy of GENERAL MOTORS CORP.
  2. Install the seat belt latch to the vehicle through the seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts that hold the seat belt latch to the seat frame.
    Fig 2: Installing Bolts Holding Seat Belt Latch To Seat Frame (Center Rear)
    G01567509Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the seat belt latch bolts to 53 N.m (39 lb ft).

  4. Install the rear seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH in Seats.
