Installation Procedure

  1. Install the seat belt buckle and latch through the seat back.

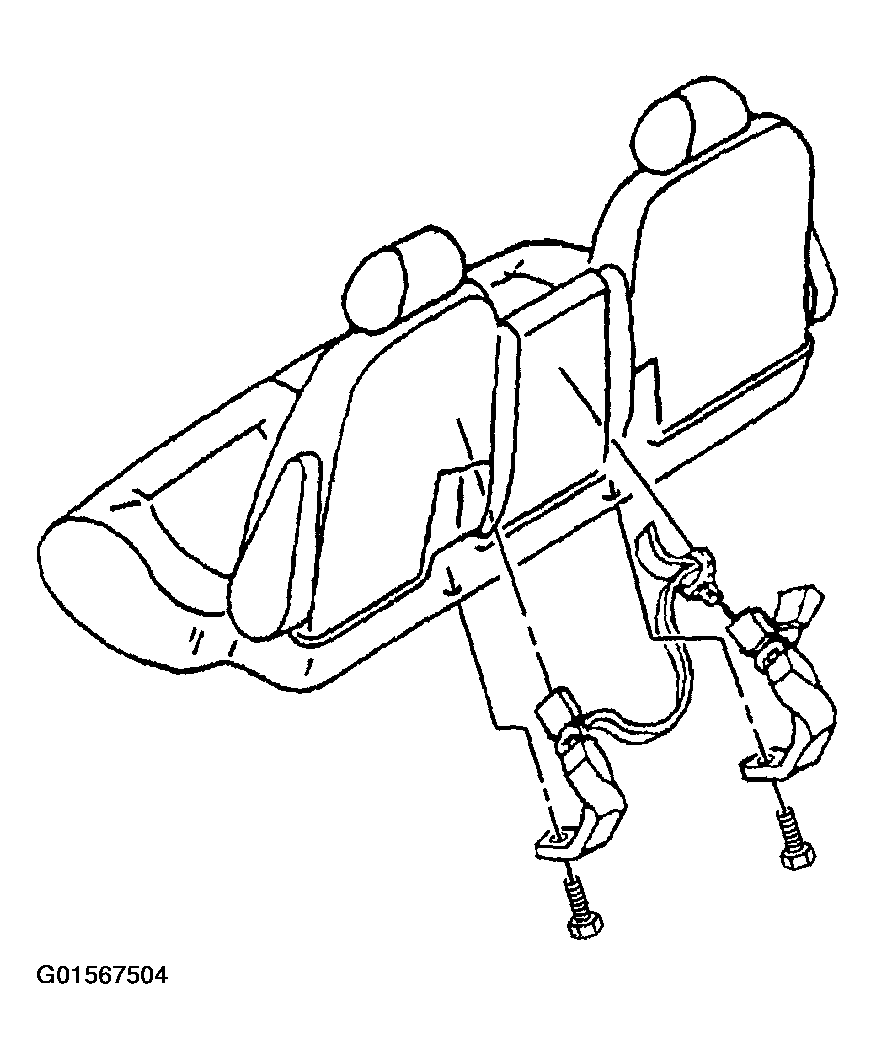

    Fig 1: Installing Seat Belt Buckle & Latch Through Seat Back (No.2 Rear)
    G01567504Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle and latch retaining bolt to the seat frame.
    Fig 2: Installing Seat Belt Buckle & Latch Retaining Bolt To Seat Frame (No.2 Rear)
    G01567505Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the seat belt buckle and latch retaining bolt to 53 N.m (39 lb ft).

  3. Install the rear bench seat in the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH in Seats.
