Removal Procedure

  1. Remove the seat belt buckle latch bolt from the side of the riser.
  2. Remove the seat belt buckle latch. The seat does not have to be removed from the vehicle.

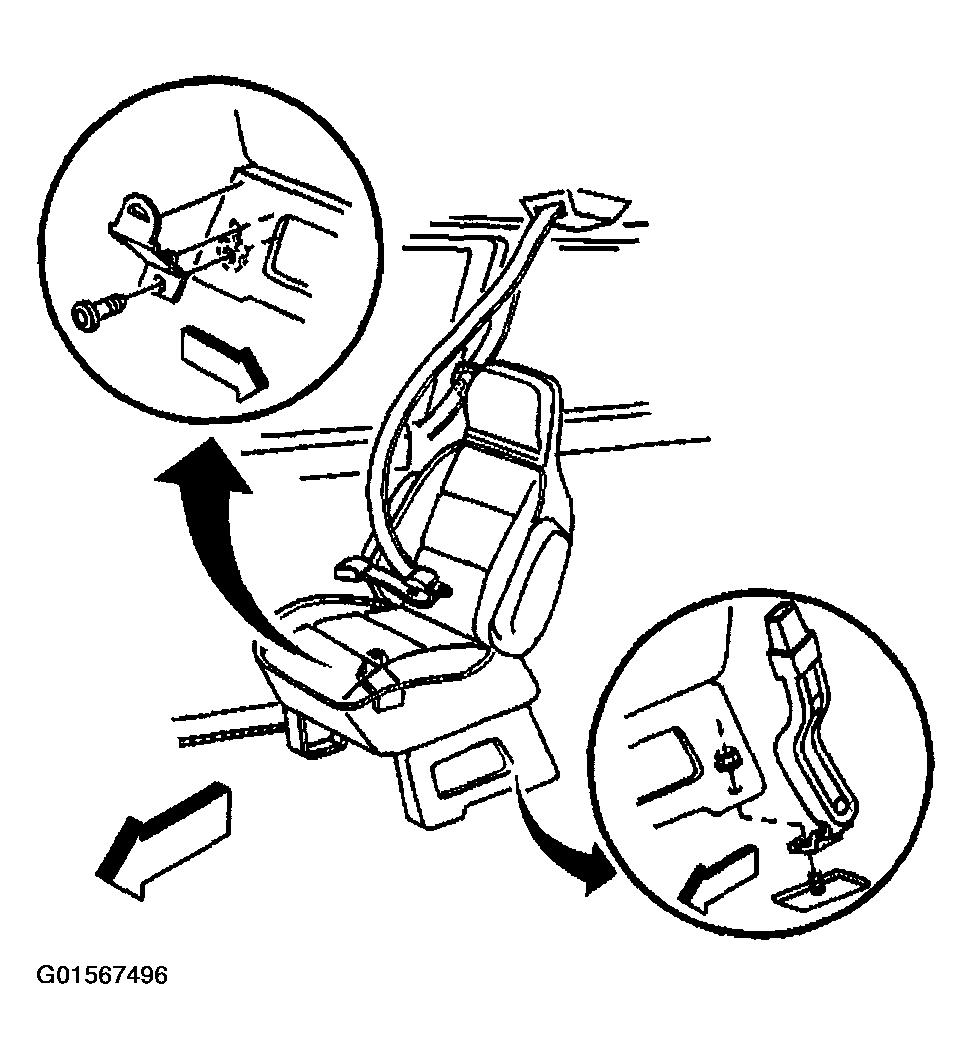

    Fig 1: Seat Belt Buckle Latch (RPO ZP7)
    G01567496Courtesy of GENERAL MOTORS CORP.
