Installation Procedure

  1. Install the seat belt buckle.

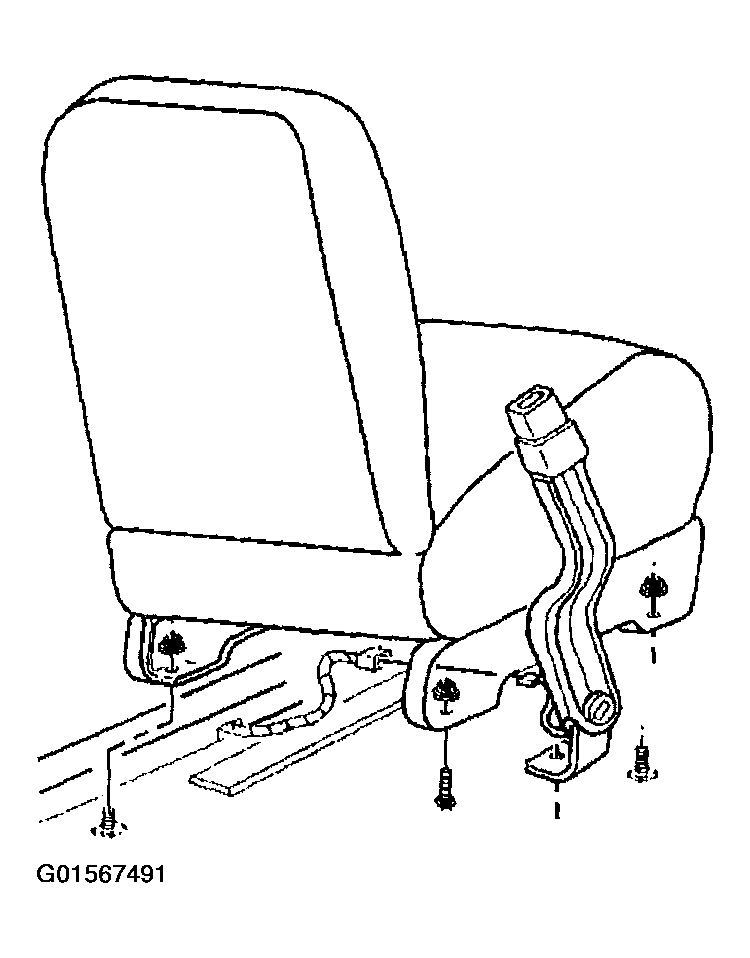

    Fig 1: Seat Belt Buckle (Rear)
    G01567491Courtesy of GENERAL MOTORS CORP.
  2. Install the seat belt buckle to the floor stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts located at the base of the seat riser.

    Tighten

    Tighten the bucket seat to the floor to 35 N.m (26 lb ft).
