Removal Procedure

  1. Remove the nuts located on the inside of the seat riser.
  2. Remove the seat belt buckle from the floor stud by lifting upward on the seat. The seat does not have to be removed from the vehicle.
  3. Disconnect the seat belt buckle warning lamp electrical connector.
  4. Remove the seat belt buckle.

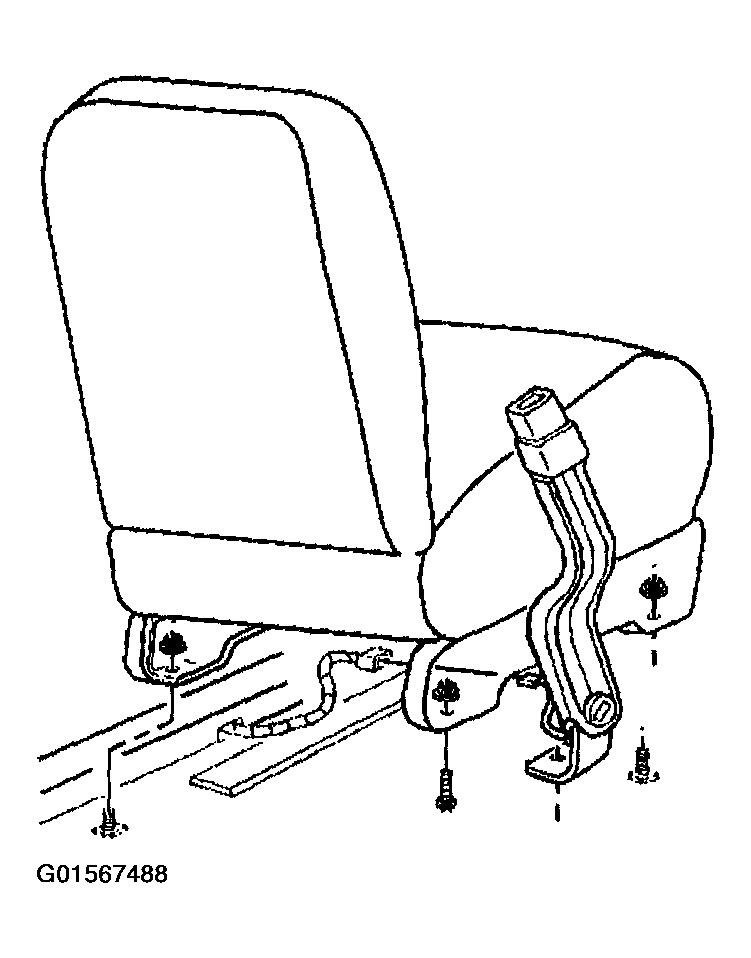

    Fig 1: Seat Belt Buckle (Front)
    G01567488Courtesy of GENERAL MOTORS CORP.
