Install Procedure

  1. Install the seat belt buckle.

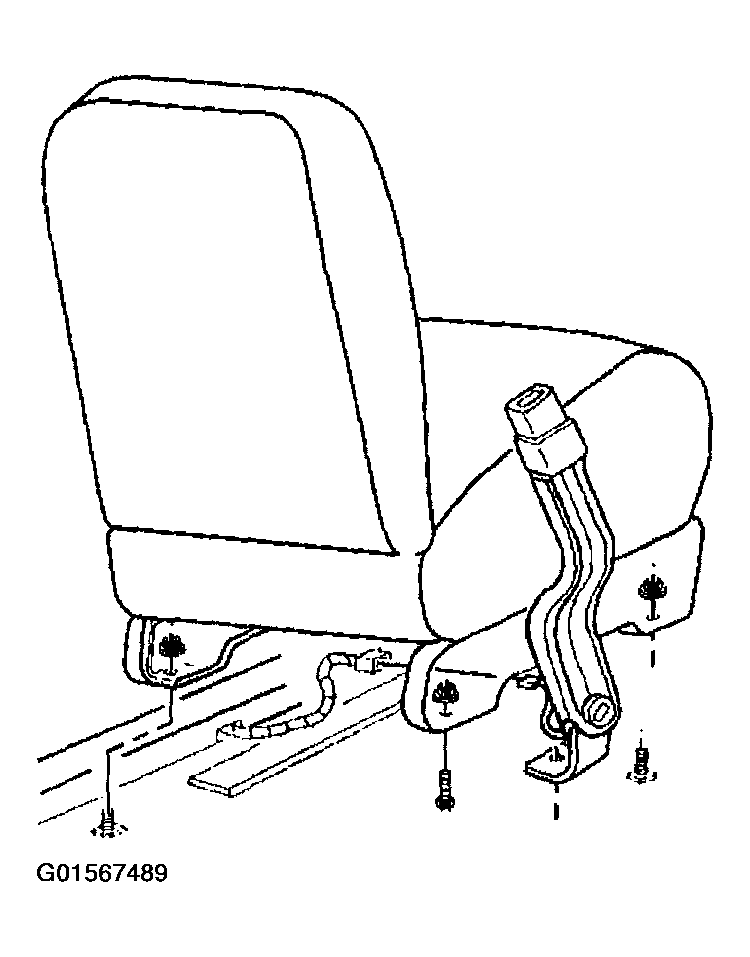

    Fig 1: Seat Belt Buckle (Front)
    G01567489Courtesy of GENERAL MOTORS CORP.
  2. Connect the seat belt buckle warning electrical connector.
  3. Install the seat belt buckle to the floor stud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the nuts located at the base of the seat riser.

    Tighten

    Tighten the bucket seat to the floor to 35 N.m (26 lb ft).
