Removal Procedure

  1. Remove the rear bench seat from the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH in Seats.
  2. Remove the seat belt buckle retaining bolt from the seat frame.
    Fig 1: Seat Belt Buckle Retaining Bolt (Center Rear)
    G01567492Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat belt buckle through the seat back.

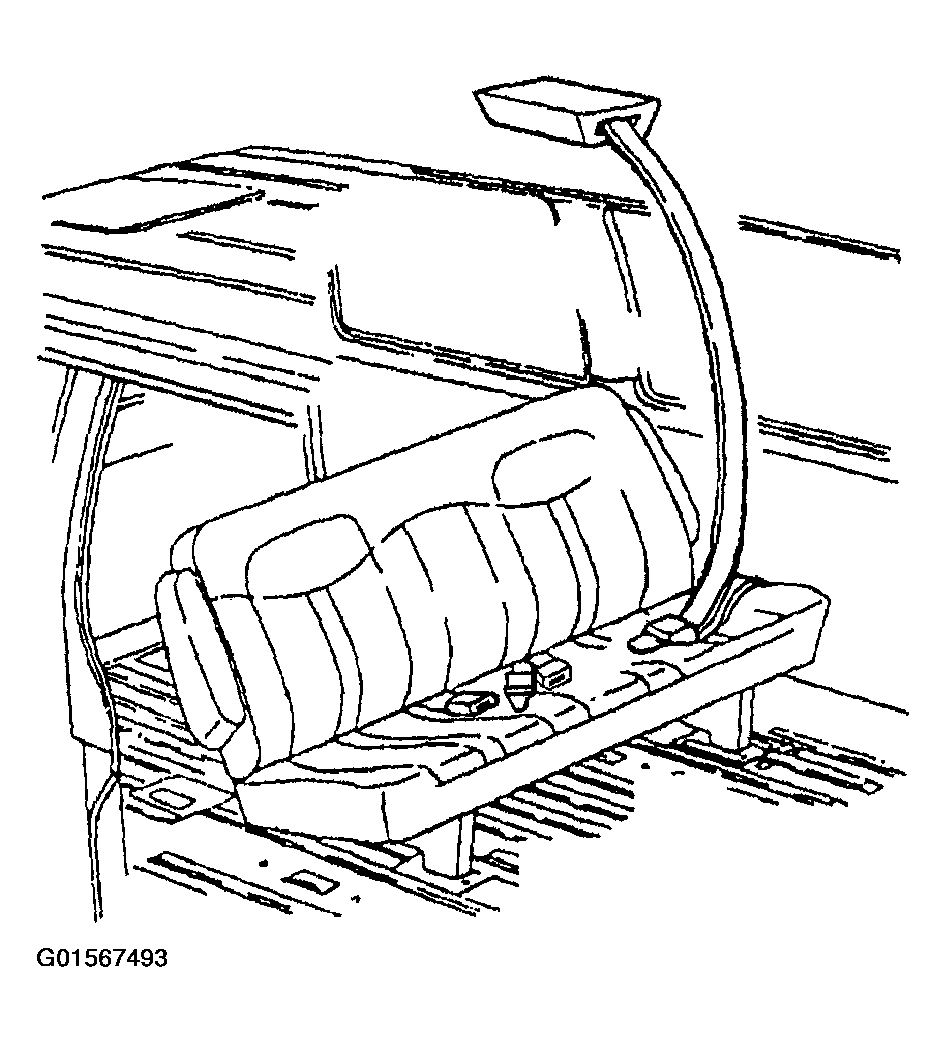

    Fig 2: Removing Seat Belt Buckle Through Seat Back
    G01567493Courtesy of GENERAL MOTORS CORP.
