Installation Procedure

  1. Install the seat belt buckle through the seat back.

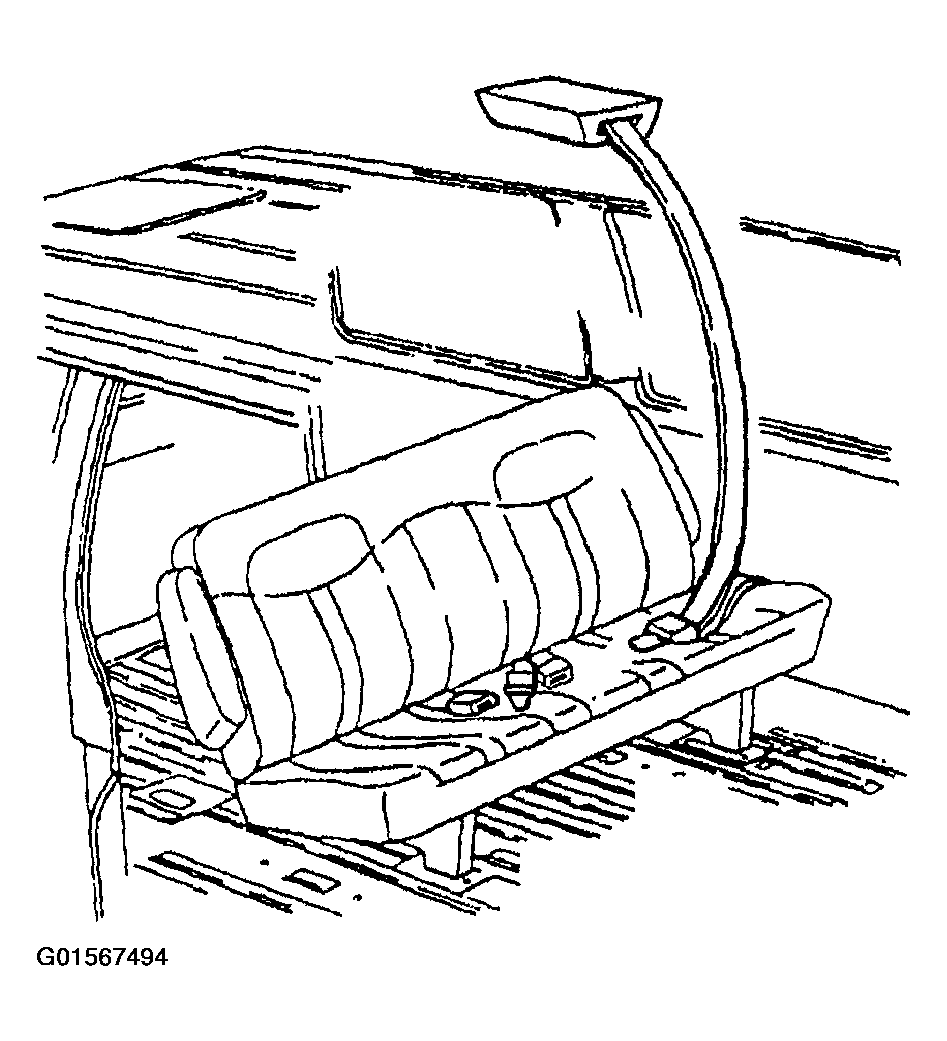

    Fig 1: Installing Seat Belt Buckle Through Seat Back
    G01567494Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt buckle retaining bolt to the seat frame.

    Tighten

    Tighten the seat belt buckle bolt to the seat frame to 53 N.m (39 lb ft).

  3. Install the rear bench seat to the vehicle. Refer to SEAT REPLACEMENT - REAR BENCH in Seats.
    Fig 2: Installing Seat Belt Buckle Retaining Bolt To Seat Frame (Center Rear)
    G01567495Courtesy of GENERAL MOTORS CORP.
