Fasten Safety Belt Indicator/Chime Inoperative

Fig 1: Fasten Safety Belt Indicator/Chime Inoperative (1 Of 2)
G01567486Courtesy of GENERAL MOTORS CORP.

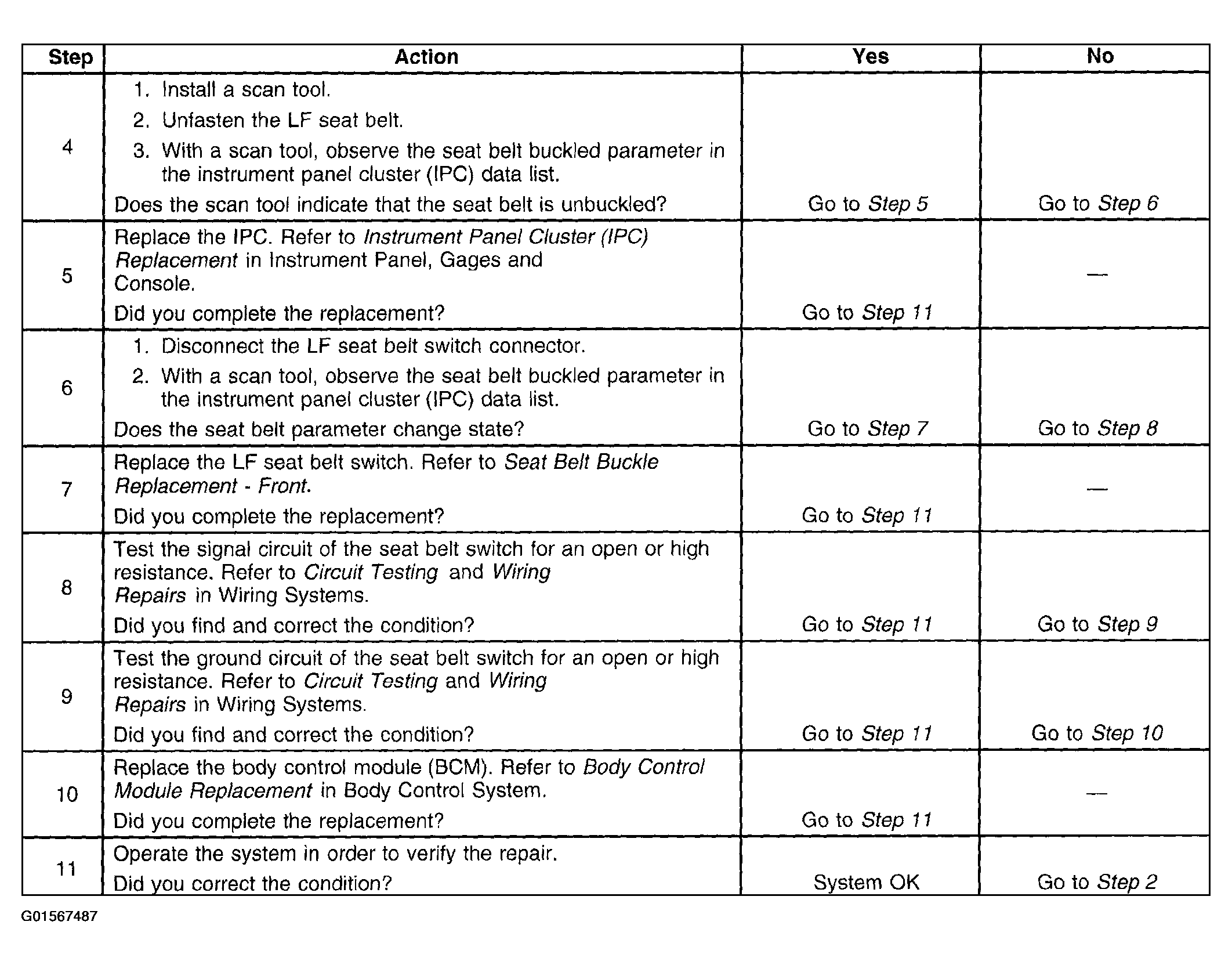

Fig 2: Fasten Safety Belt Indicator/Chime Inoperative (2 Of 2)
G01567487Courtesy of GENERAL MOTORS CORP.
