Installation Procedure

  1. Install the auxiliary heater module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts that retain the auxiliary heater module to the floor.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Connect the auxiliary heater pipes to the auxiliary heater module.
  4. Install the auxiliary heater pipe clamps.
  5. Install the auxiliary heater module cover.

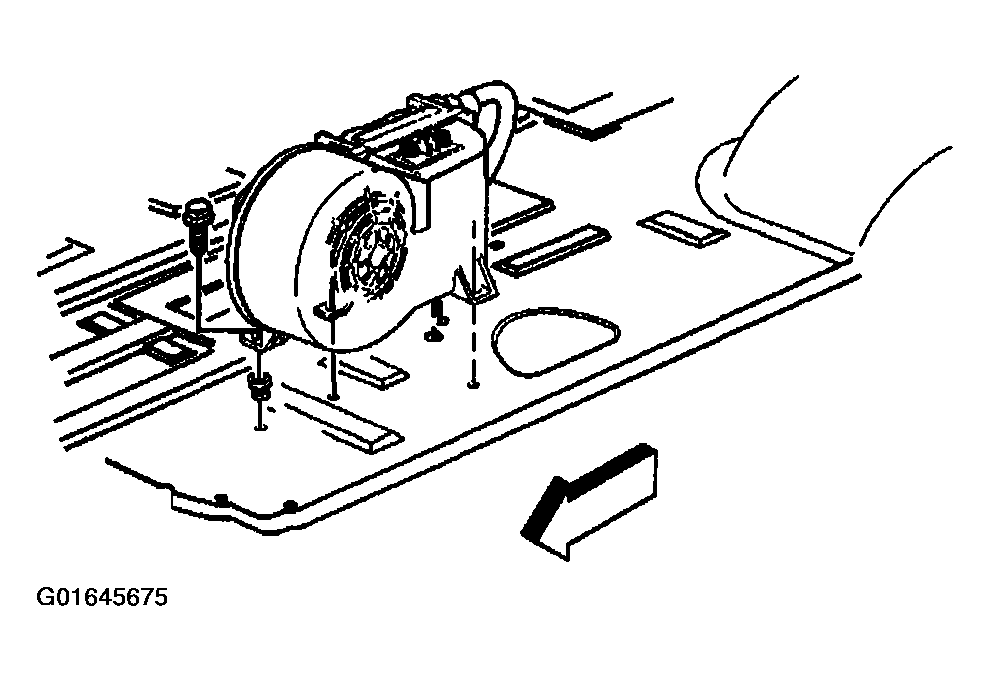

    Fig 1: Installing Auxiliary Heater Module
    G01645675Courtesy of GENERAL MOTORS CORP.
  6. Install the auxiliary heater module cover retaining screws.

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

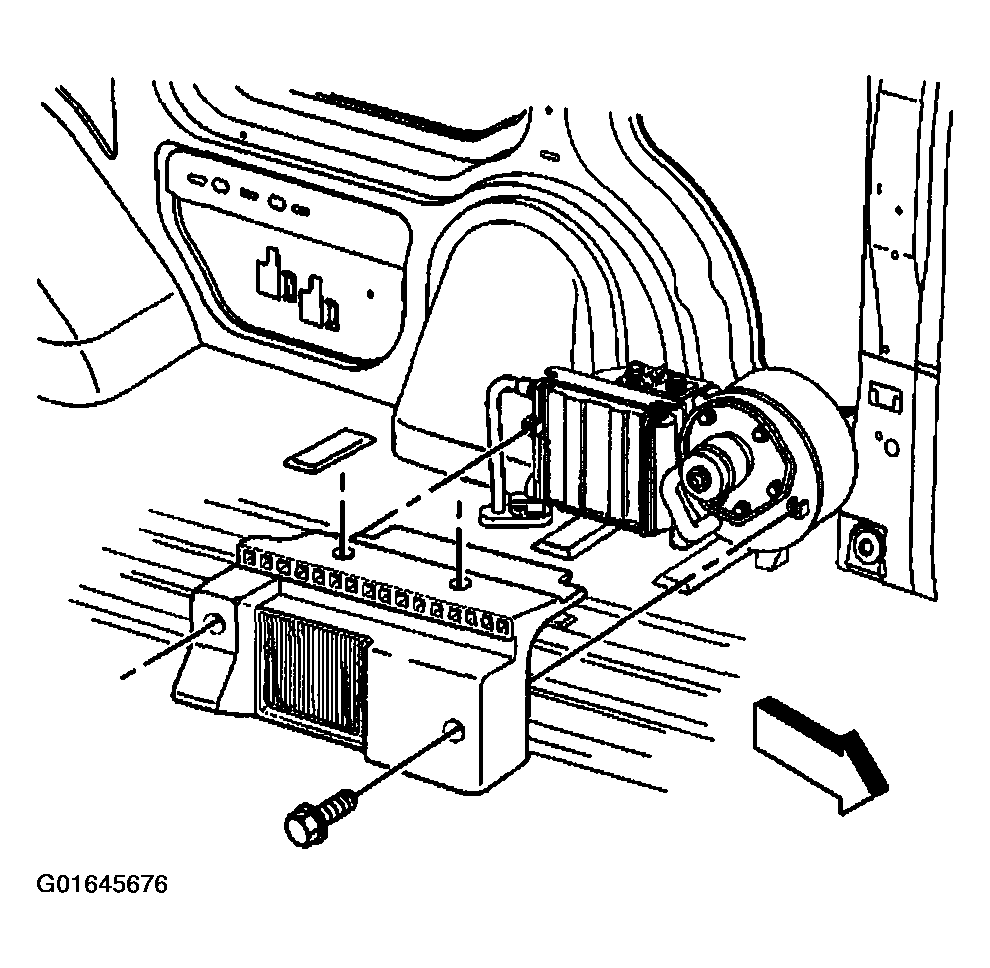

    Fig 2: Installing Auxiliary Heater Module Cover & Retaining Screws
    G01645676Courtesy of GENERAL MOTORS CORP.
  7. Install the body side front lower trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE FRONT LOWER in Interior Trim.
  8. Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
