Removal Procedure

  1. Drain the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  2. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  3. Using the J 38185  reposition the heater hose clamps from the heater core.
  4. Remove the heater hoses from the heater core.

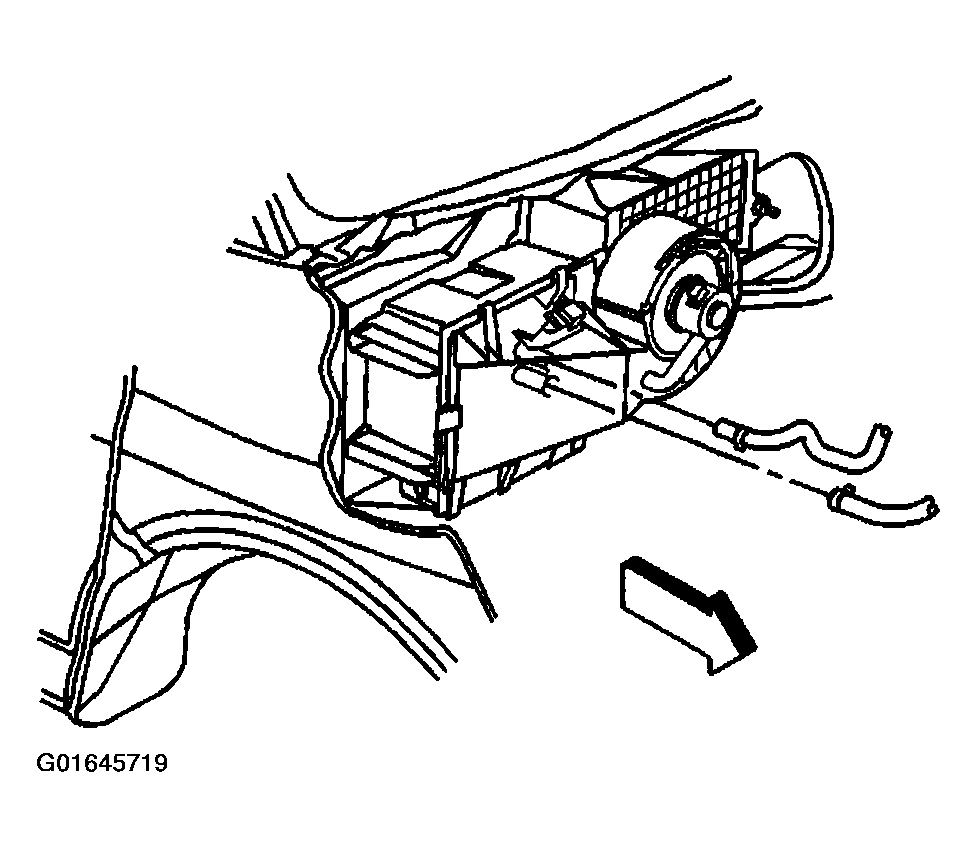

    Fig 1: Removing Heater Hoses
    G01645719Courtesy of GENERAL MOTORS CORP.
  5. Remove the evaporator case from the vehicle. Refer to EVAPORATOR CORE REPLACEMENT .
  6. Remove the heater case retaining nuts (2) from the engine compartment.
  7. Roll out the instrument panel. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages, and Console.
  8. Disconnect the electrical connectors.
  9. Disconnect the vacuum lines.
  10. Remove the heater case (5) from the vehicle.

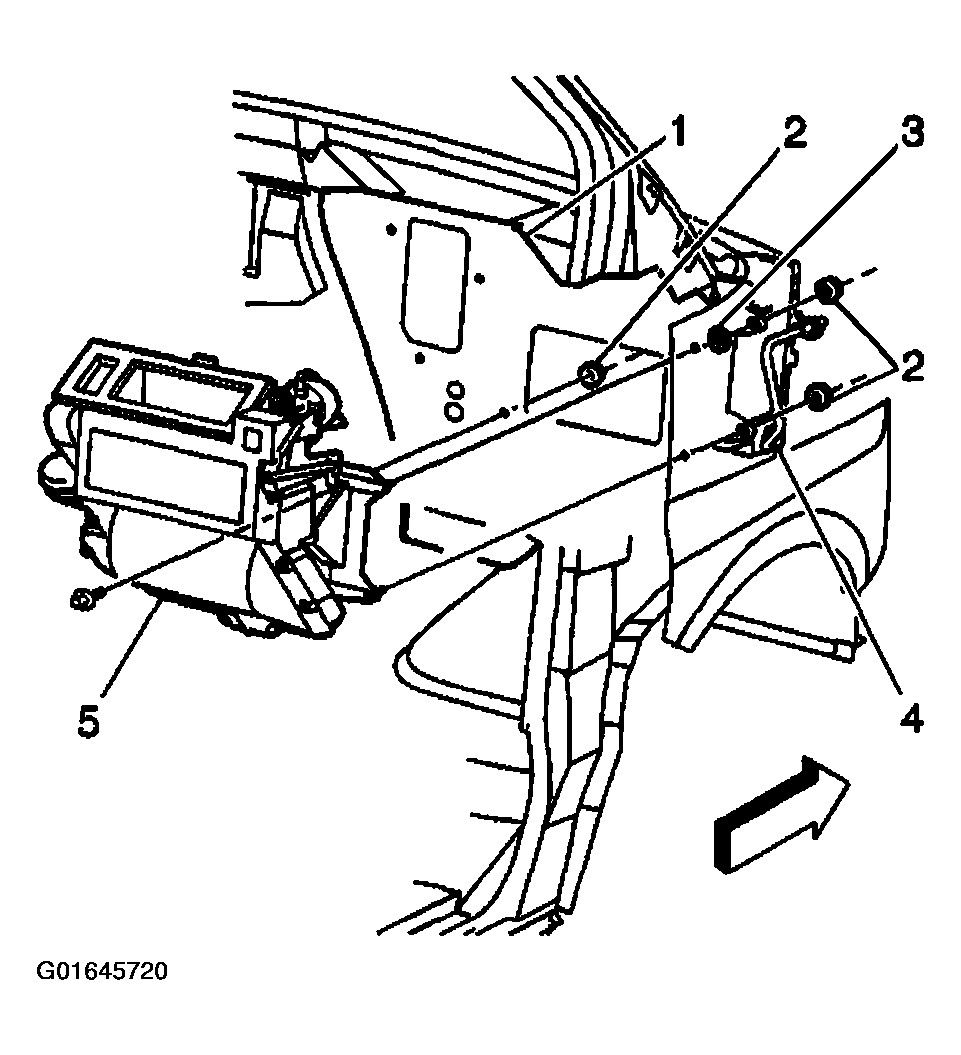

    Fig 2: Removing Heater Case
    G01645720Courtesy of GENERAL MOTORS CORP.
