Removal Procedure

Pull out ward on the vent in order to remove the vent from the trim panel.

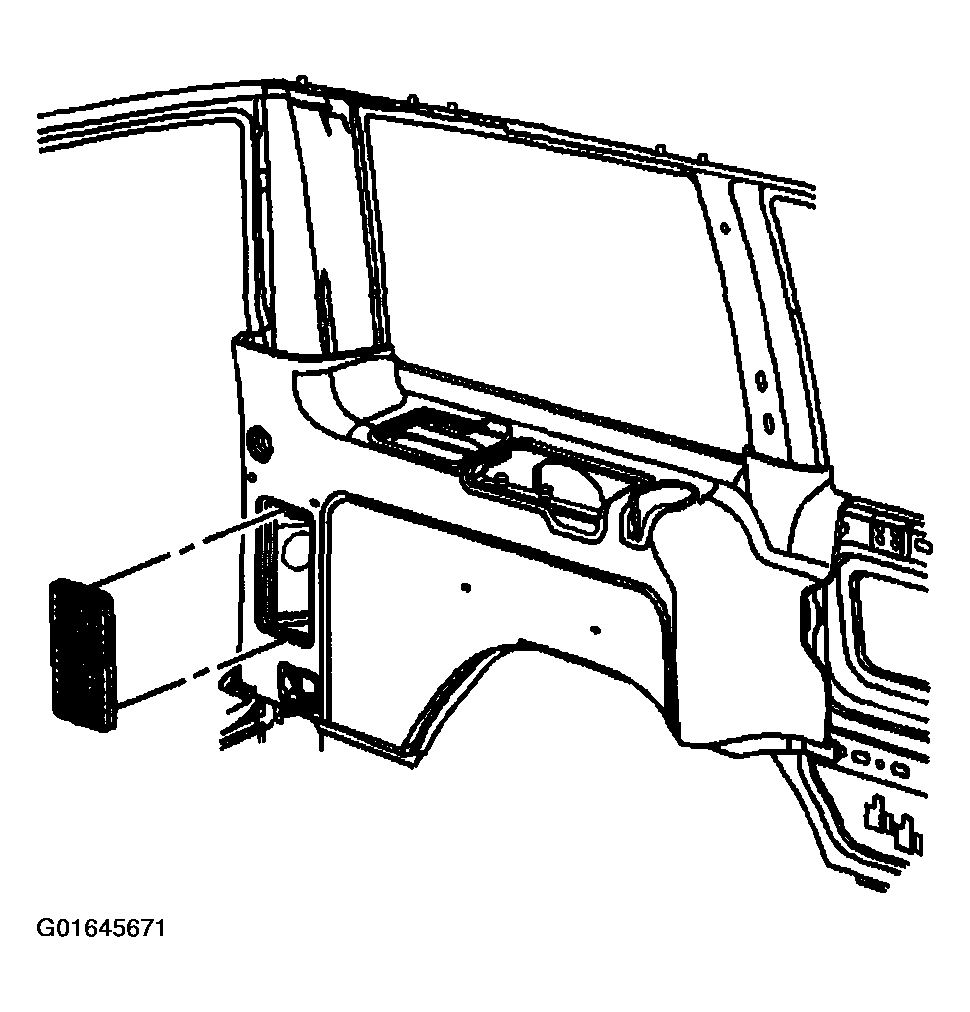

Fig 1: Removing Body Side Rear Trim Air Outlet Grille

G01645671

Courtesy of GENERAL MOTORS CORP.
