Installation Procedure

Press the vent inward in order to install the vent to the trim panel.

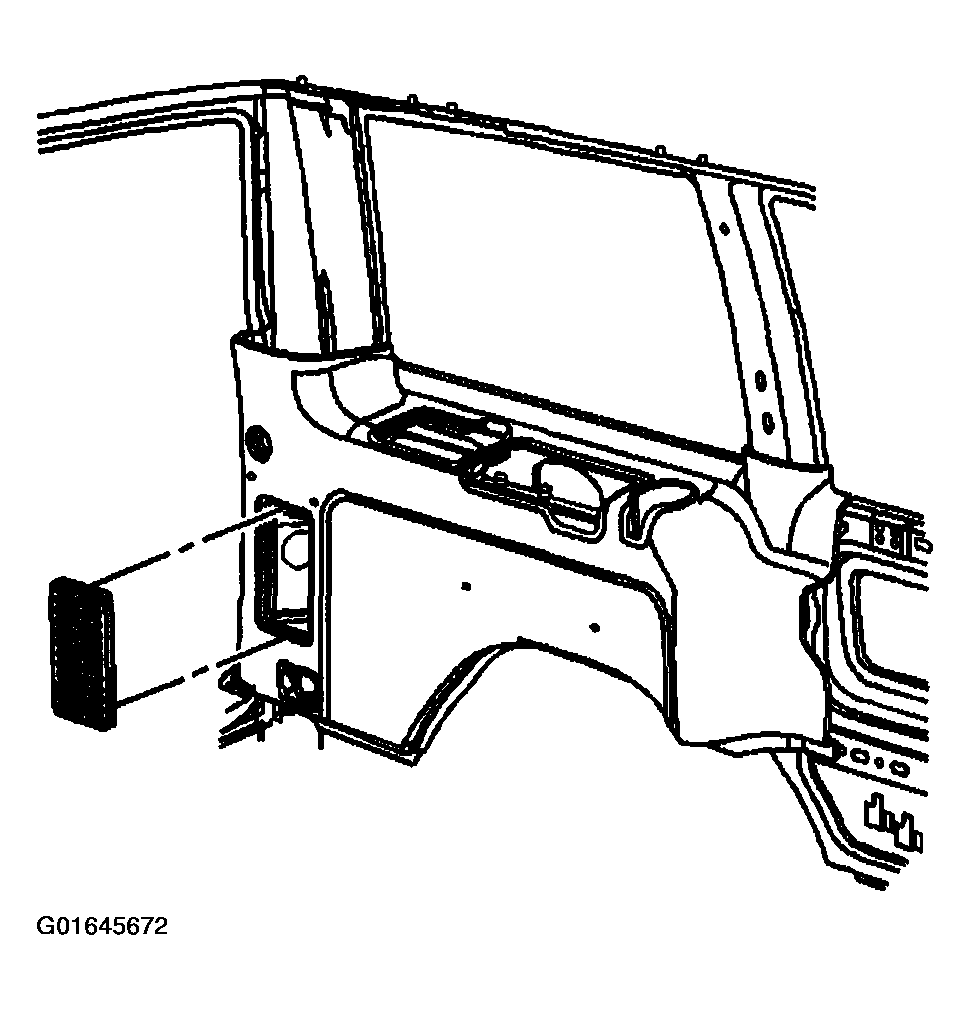

Fig 1: Installing Body Side Rear Trim Air Outlet Grille

G01645672

Courtesy of GENERAL MOTORS CORP.
