Installation Procedure

Important:  Install the shorter screen end of the expansion (orifice) tube into the evaporator first.

  1. Use the J 26549-E  in order to install the expansion (orifice) tube.

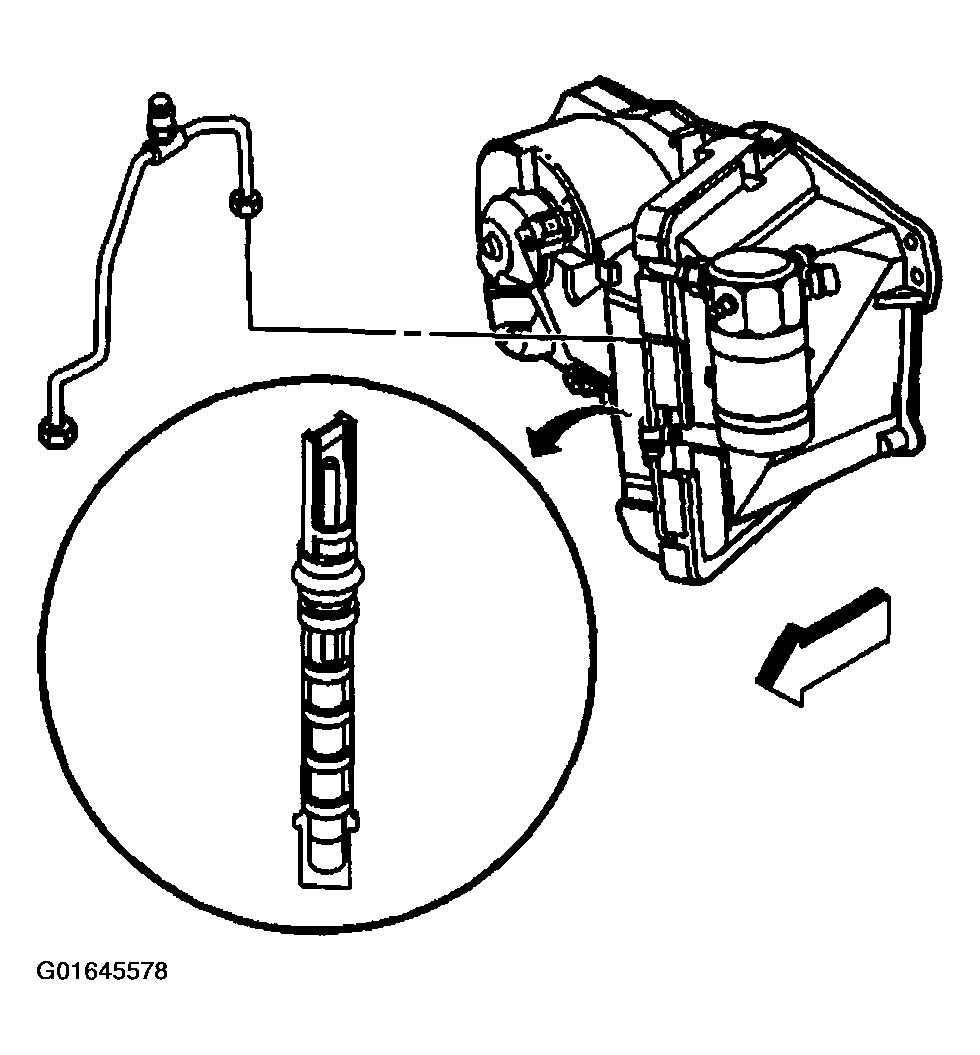

    Fig 1: Installing Expansion (Orifice) Tube
    G01645578Courtesy of GENERAL MOTORS CORP.
  2. Install the new O-ring seal. Refer to O-RING REPLACEMENT  .
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  3. Install the evaporator tube to the evaporator.

    Tighten

    Tighten the evaporator tube nut to 28 N.m (20 lb ft).

  4. Evacuate and recharge the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  5. Leak test the fittings of the component using the J 39400-A.
  6. Install the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
