Removal Procedure

  1. Recover the refrigerant from the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the auxiliary evaporator front inlet tube from the evaporator inlet tube (2) at the accumulator.

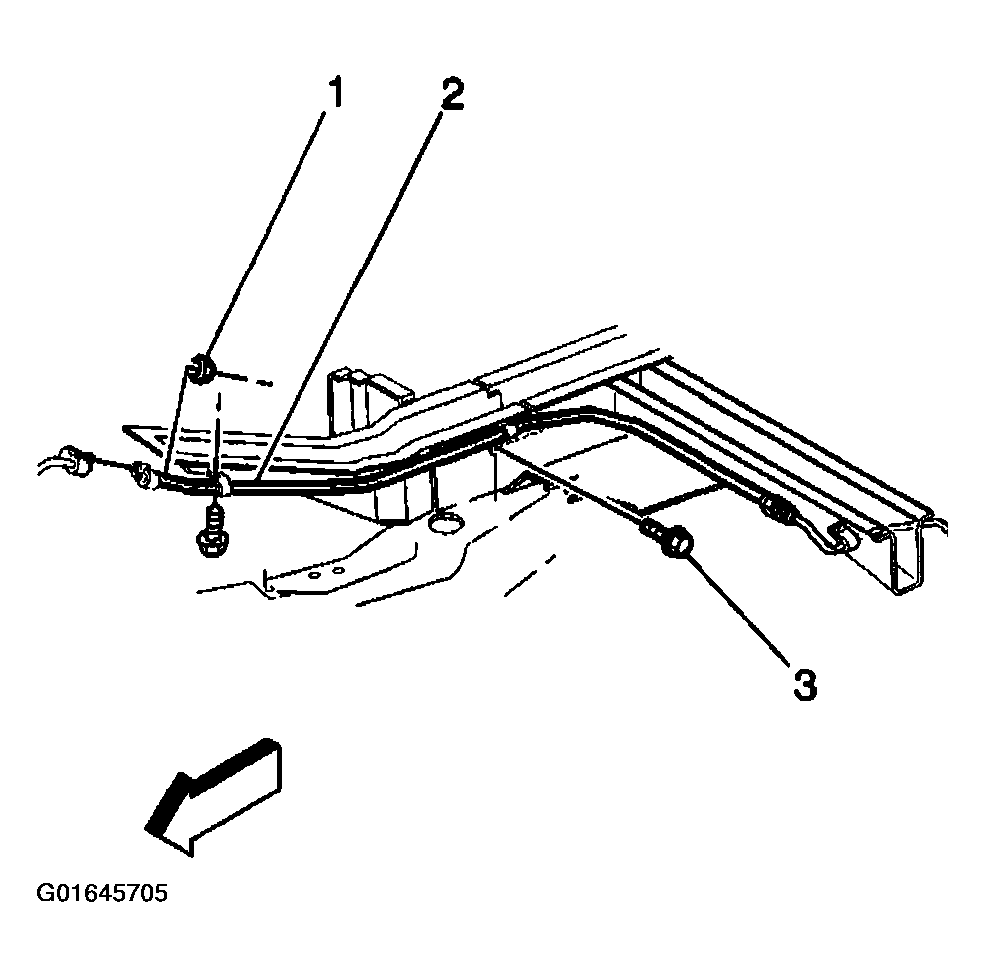

    Fig 1: Removing Auxiliary Evaporator Front Inlet Tube
    G01645705Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seal.
  5. Remove the bolts (3) that retain the clips on the auxiliary evaporator front inlet tube (2) to the body.
  6. Remove the auxiliary evaporator front inlet tube (2) from the vehicle.
