Removal Procedure

  1. Remove air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
  2. Recover the refrigerant from the system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  3. Remove the compressor hose assembly bolt (3) from the compressor.

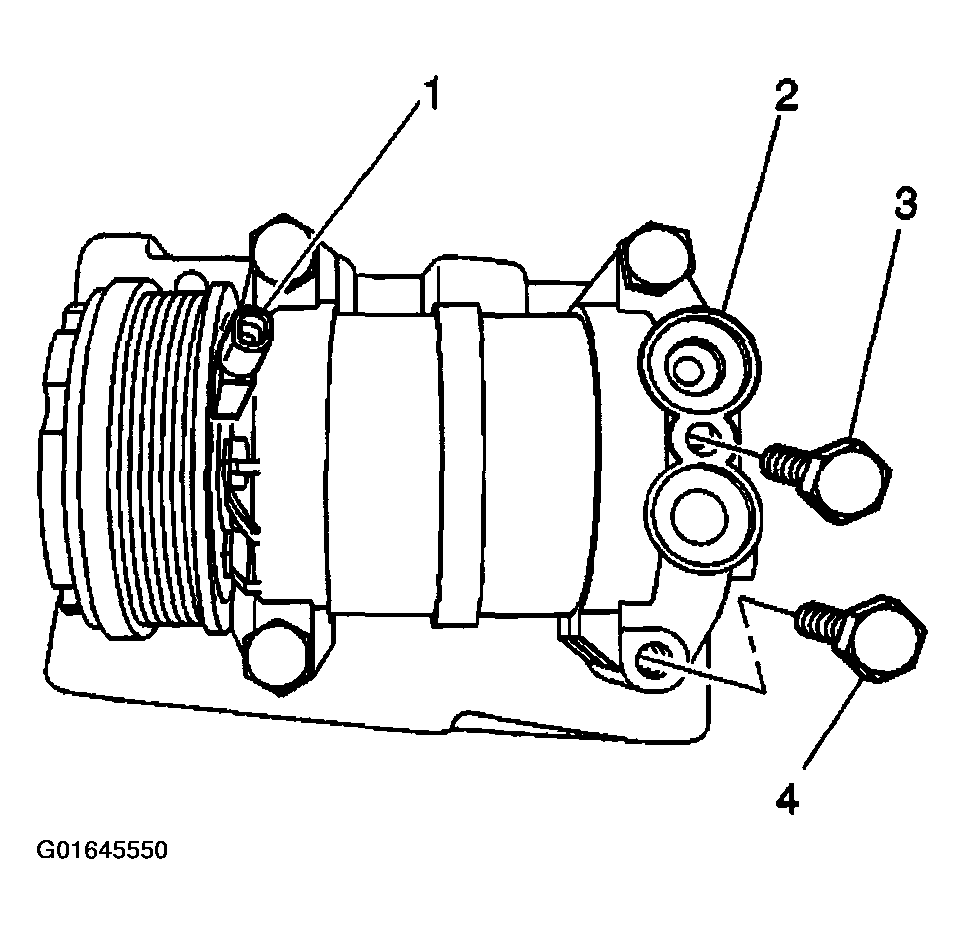

    Fig 1: Removing Compressor Hose Assembly Bolt
    G01645550Courtesy of GENERAL MOTORS CORP.
  4. Remove the compressor hose assembly (7) from the compressor in order to expose the sealing washers.

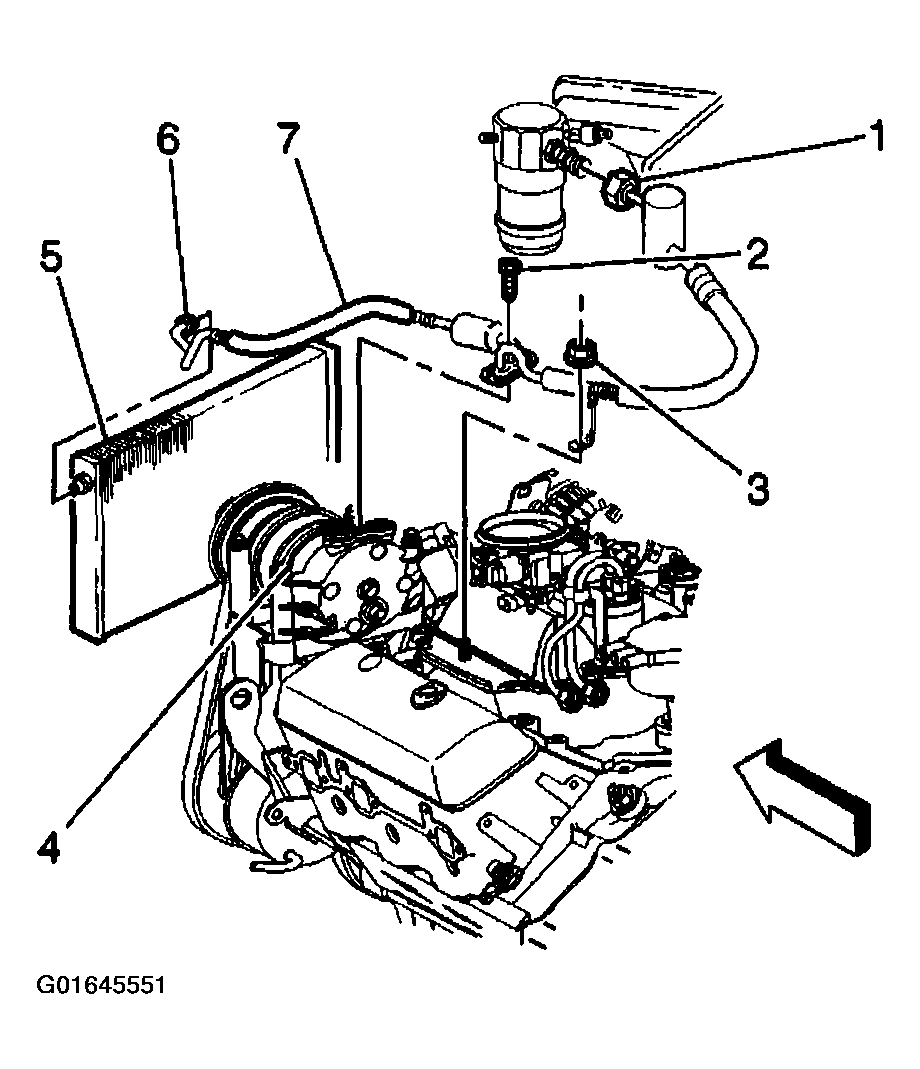

    Fig 2: Removing Compressor Hose Assembly
    G01645551Courtesy of GENERAL MOTORS CORP.
  5. Remove the sealing washers (1).

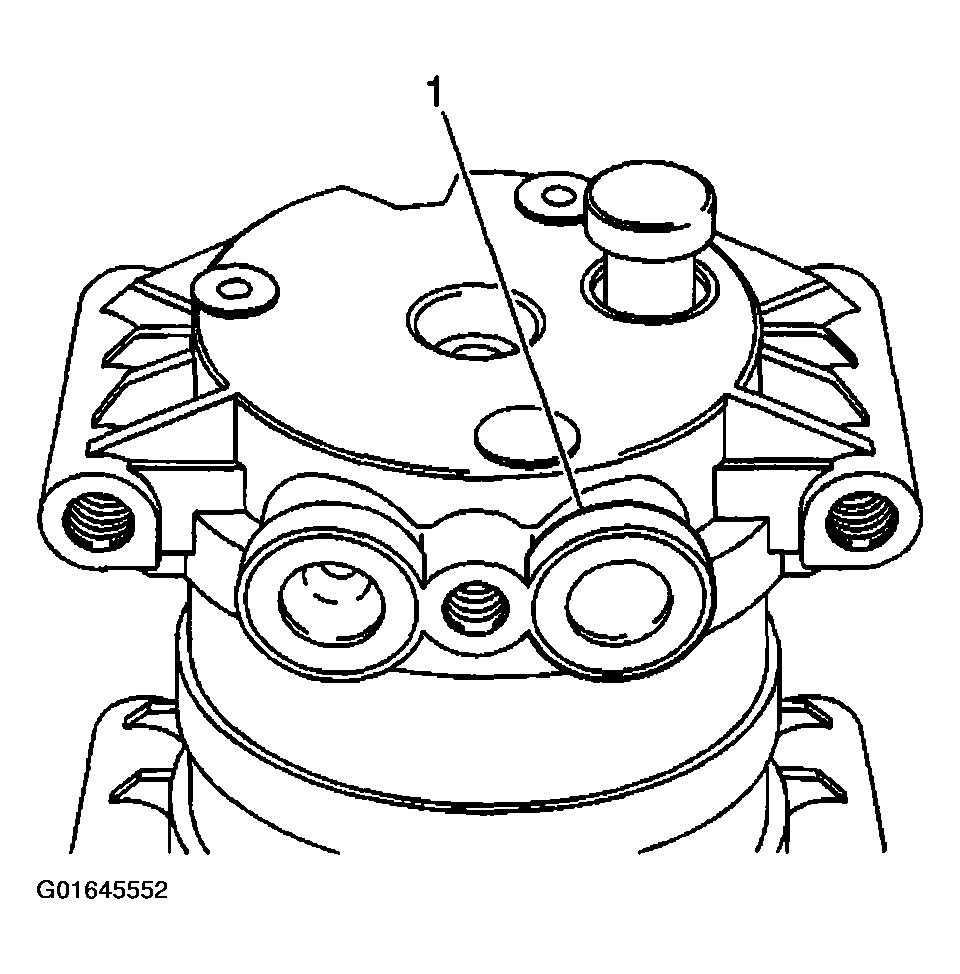

    Fig 3: View Of Sealing Washers
    G01645552Courtesy of GENERAL MOTORS CORP.
