Installation Procedure

Important:  The compressor is shipped without oil.

  1. If replacing the compressor, add the refrigerant oil to the compressor.
  2. Install the compressor to the vehicle.
  3. Install the compressor brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the compressor mounting bolts (2).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

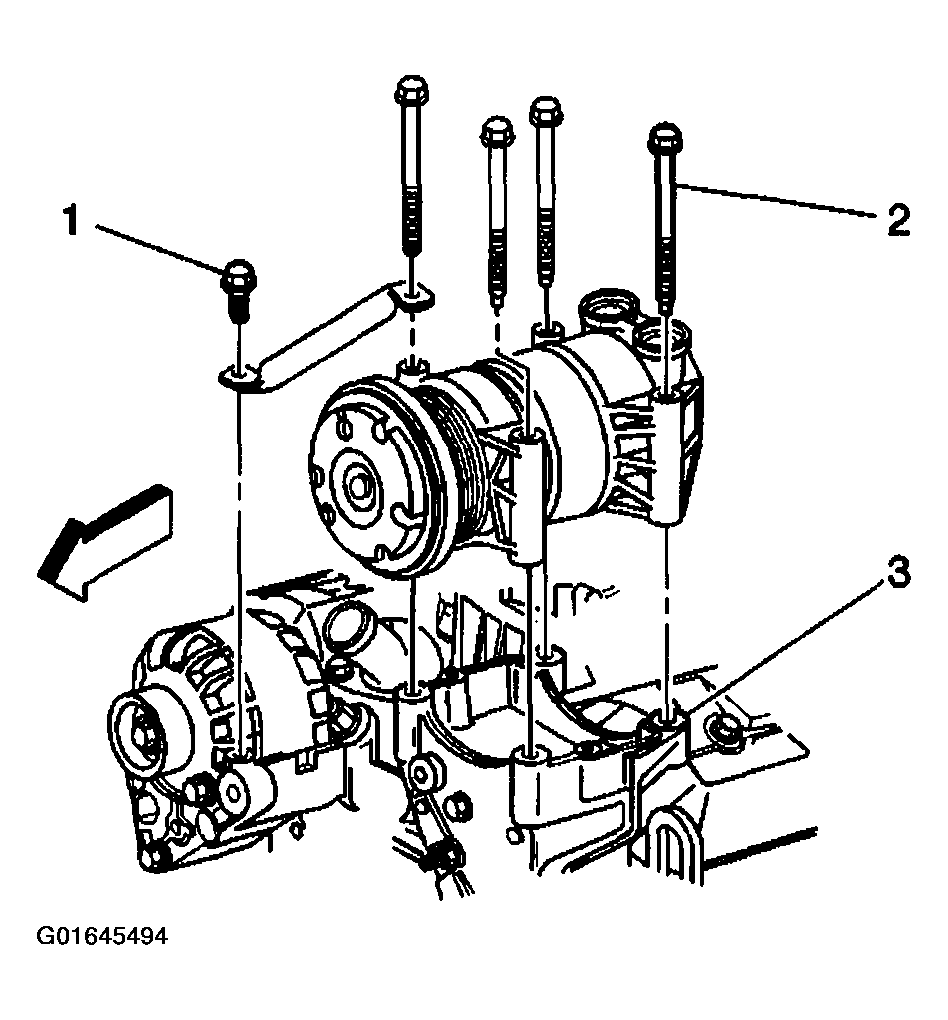

    Fig 1: Installing A/C Compressor Brace & Mounting Bolts
    G01645494Courtesy of GENERAL MOTORS CORP.
  5. Install the compressor brace bolt (1).

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  6. Install new seal washers. Refer to SEALING WASHER REPLACEMENT .
  7. Install the compressor hose assembly to the compressor.
  8. Install the compressor hose assembly bolt (3).

    Tighten

    Tighten the bolt to 34 N.m (25 lb ft).

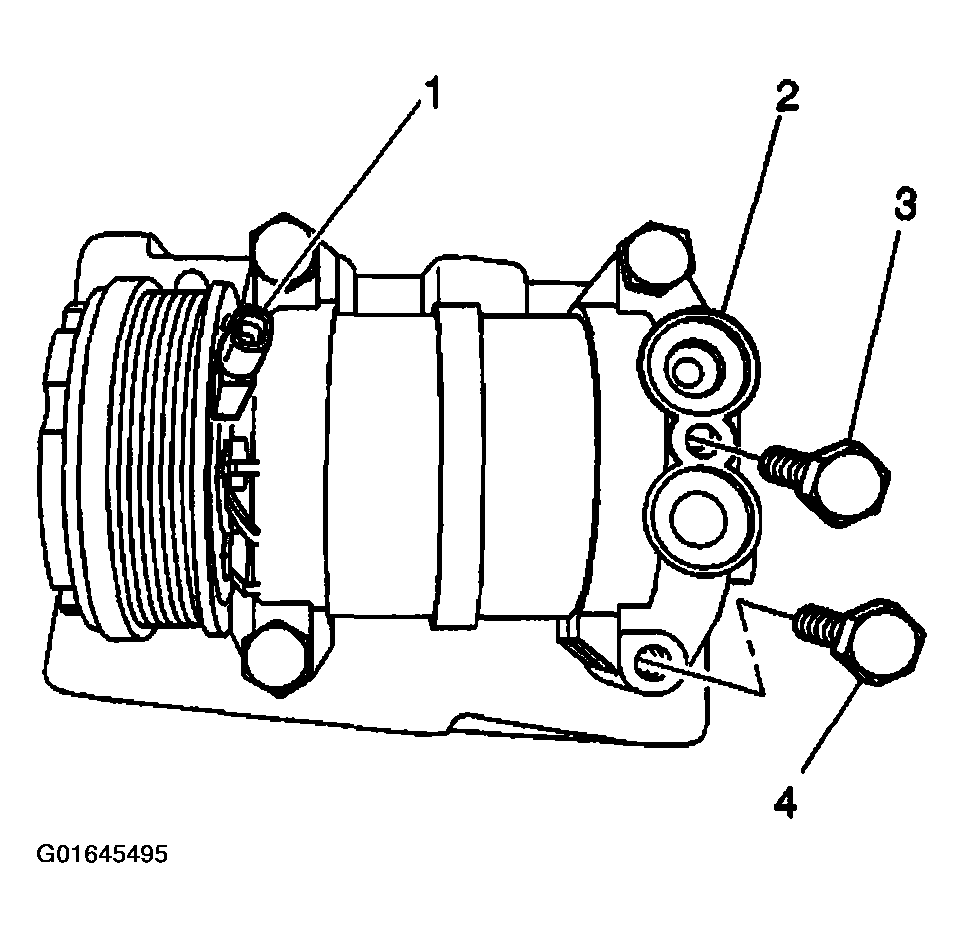

    Fig 2: Installing A/C Compressor Hose Assembly Bolt
    G01645495Courtesy of GENERAL MOTORS CORP.
  9. Connect the electrical connector (2) to the A/C compressor high pressure cutoff switch.

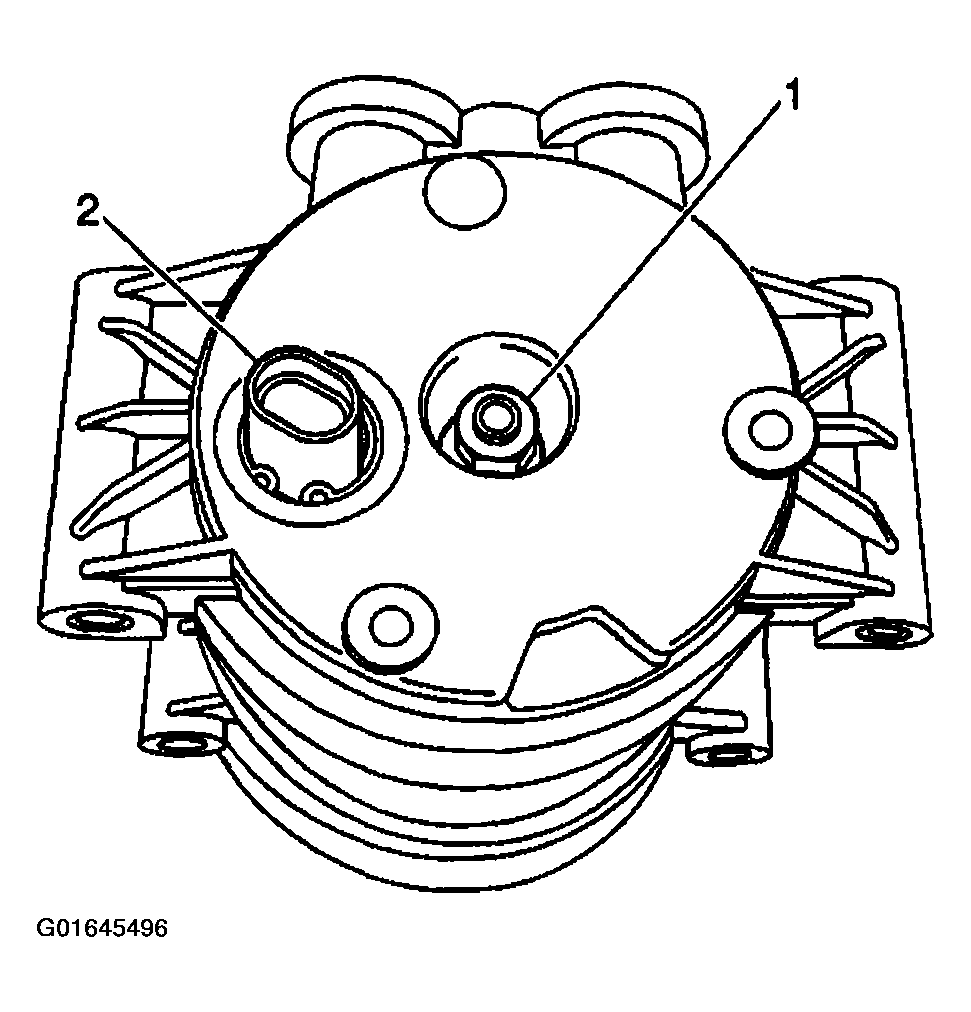

    Fig 3: Connecting A/C Compressor High Pressure Cutoff Switch Electrical Connector
    G01645496Courtesy of GENERAL MOTORS CORP.
  10. Install the oil filler tube.
  11. Install the oil filler tube bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  12. Release the drive belt tensioner and install the drive belt to the A/C compressor.
  13. Install the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
  14. Connect the electrical connectors (1) to the A/C compressor.

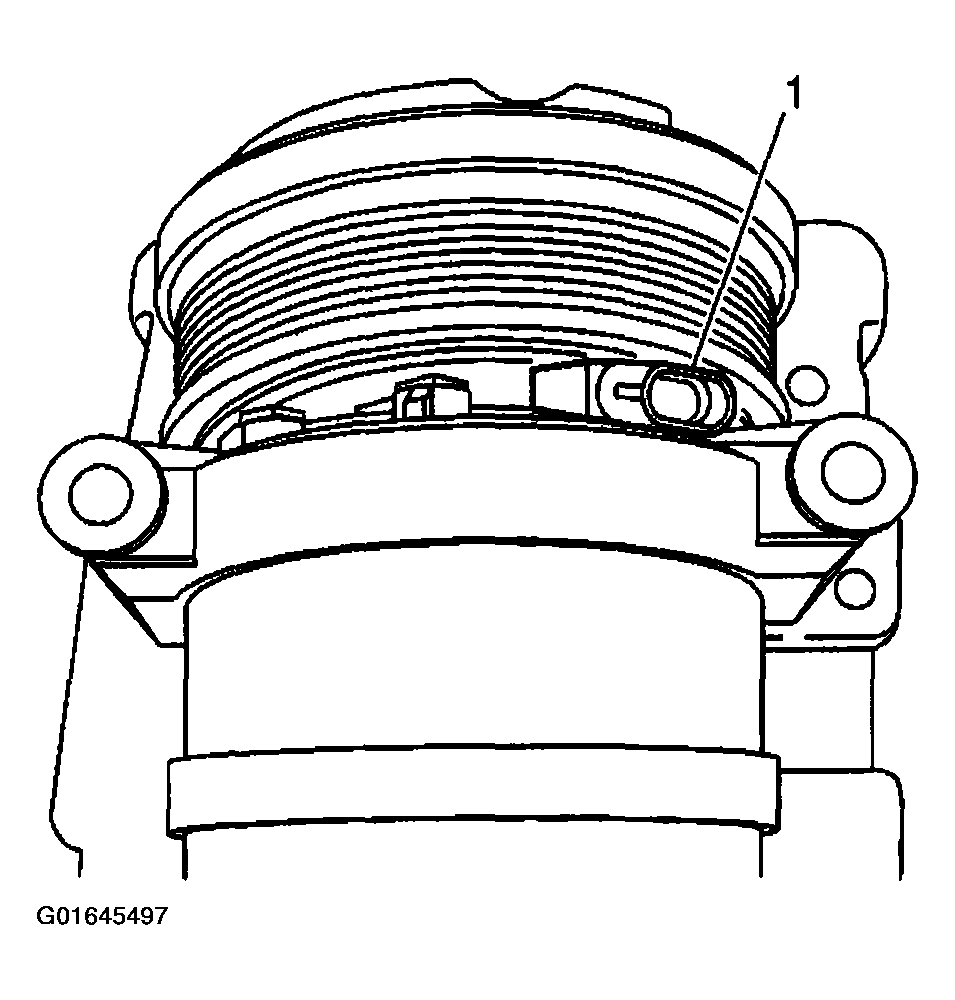

    Fig 4: Connecting A/C Compressor Electrical Connector
    G01645497Courtesy of GENERAL MOTORS CORP.
  15. Evacuate and recharge the refrigerant system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  16. Leak test the fittings of the component using the J 39400-A.
  17. Install the upper fan shroud.

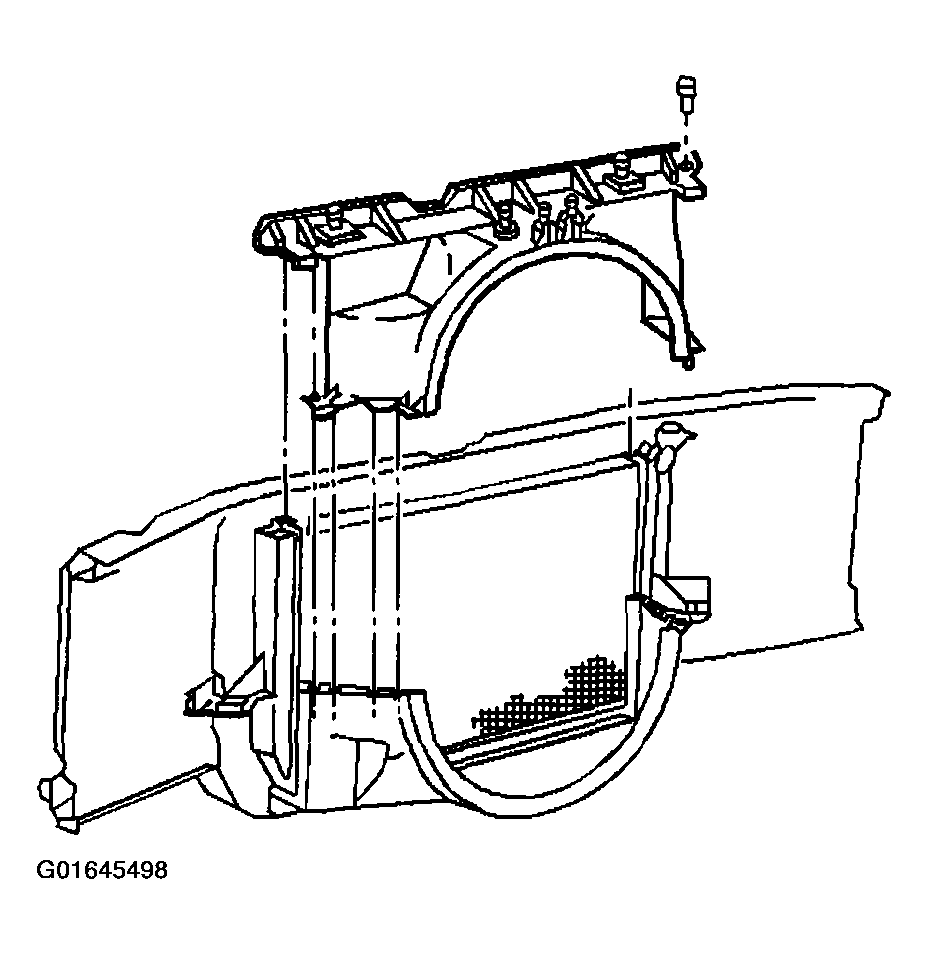

    Fig 5: Installing Upper Fan Shroud
    G01645498Courtesy of GENERAL MOTORS CORP.
  18. Install the upper fan shroud bolts.

    Tighten

    Tighten the bolt to 15 N.m (11 lb in).

  19. Install the air cleaner. Refer to AIR CLEANER ASSEMBLY in Removal & Installation.
