Removal Procedure

  1. Remove the cover from the underhood convenience center.
  2. Remove the compressor relay (2).

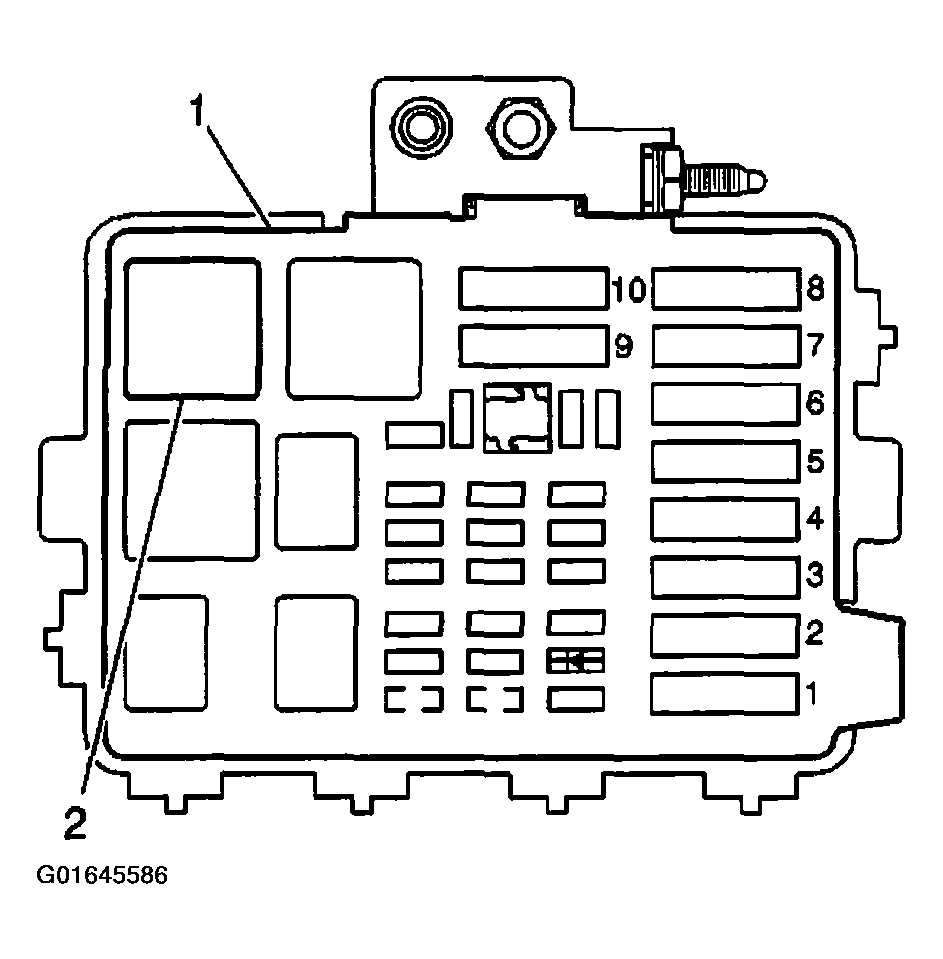

    Fig 1: Identifying Compressor Relay
    G01645586Courtesy of GENERAL MOTORS CORP.
