Installation Procedure

  1. Install the compressor relay (2).

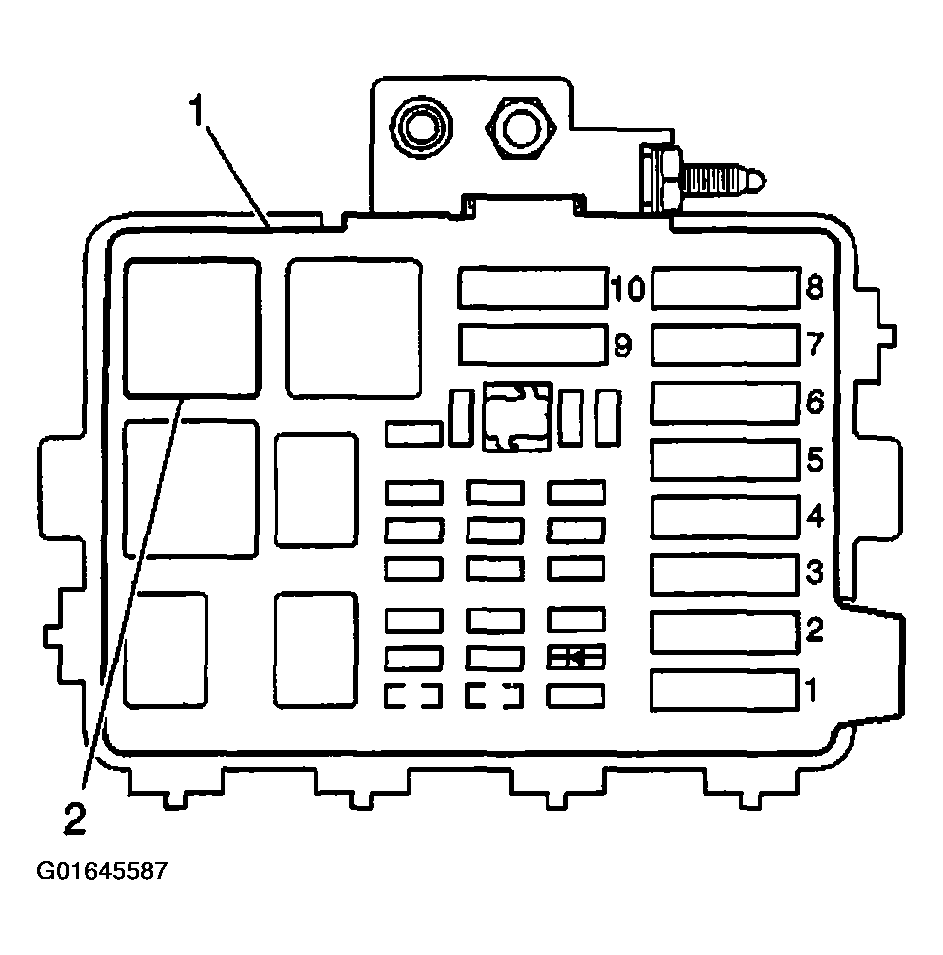

    Fig 1: Identifying Compressor Relay
    G01645587Courtesy of GENERAL MOTORS CORP.
  2. Install the cover to the underhood convenience center.
